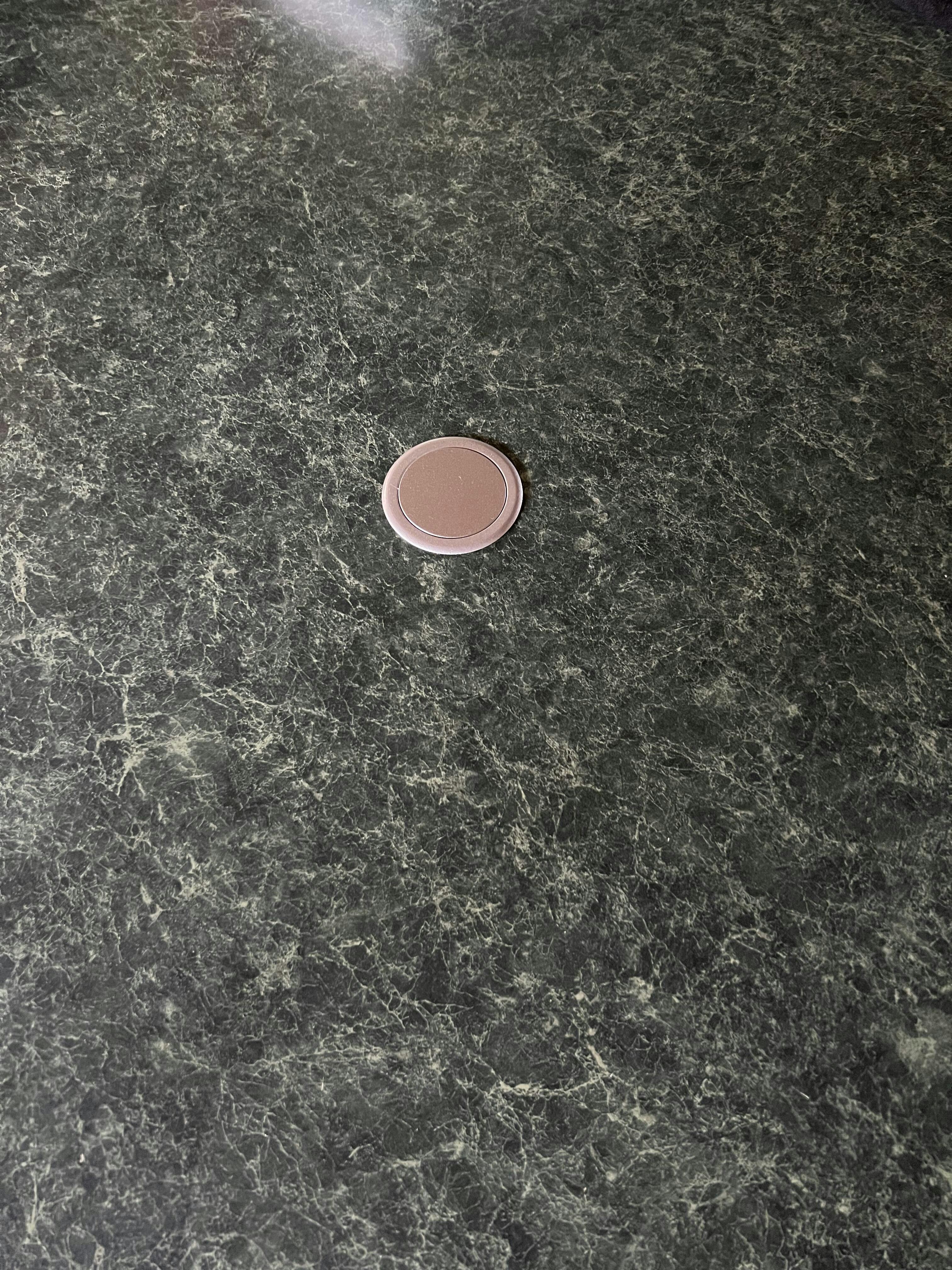

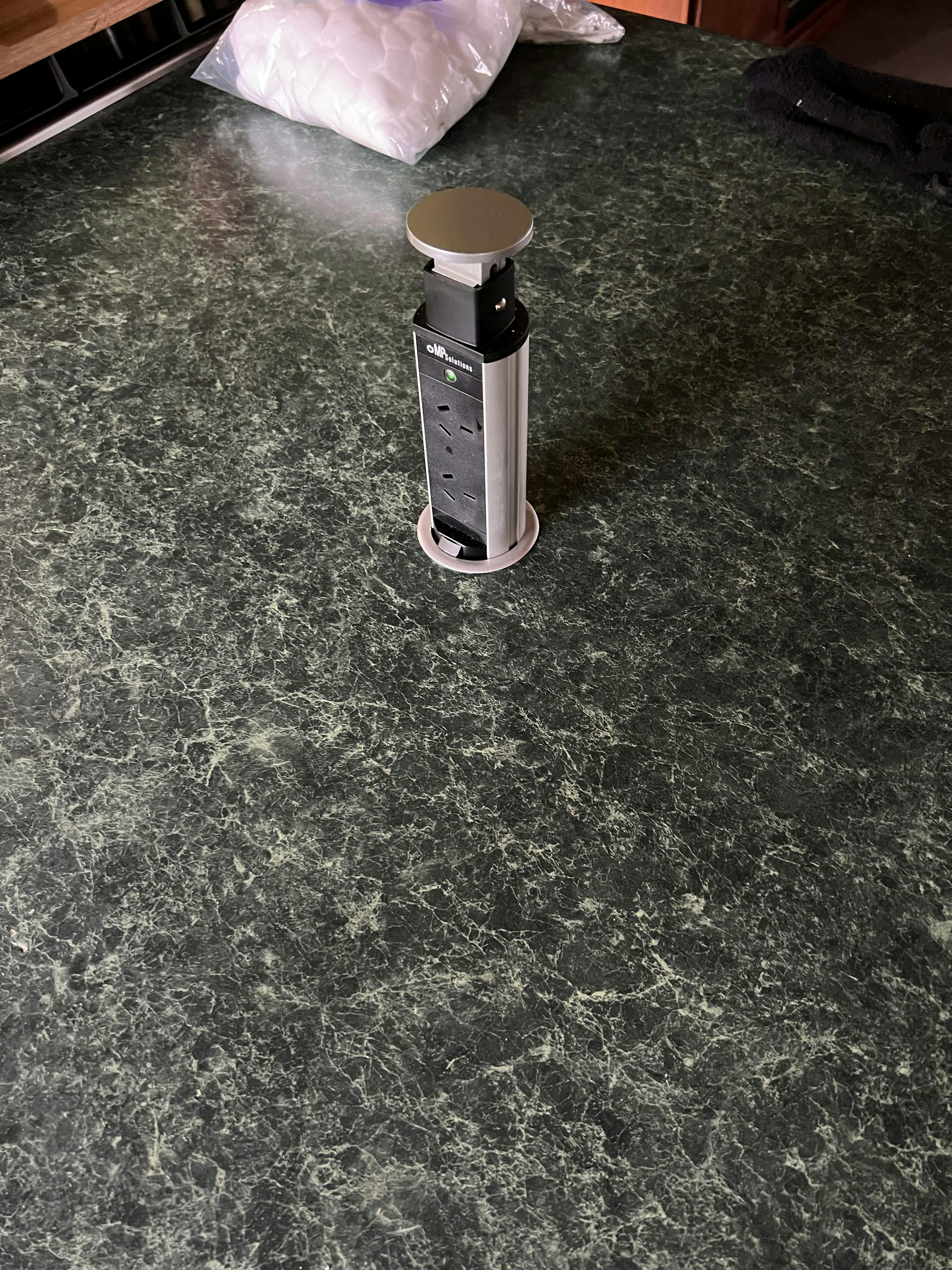

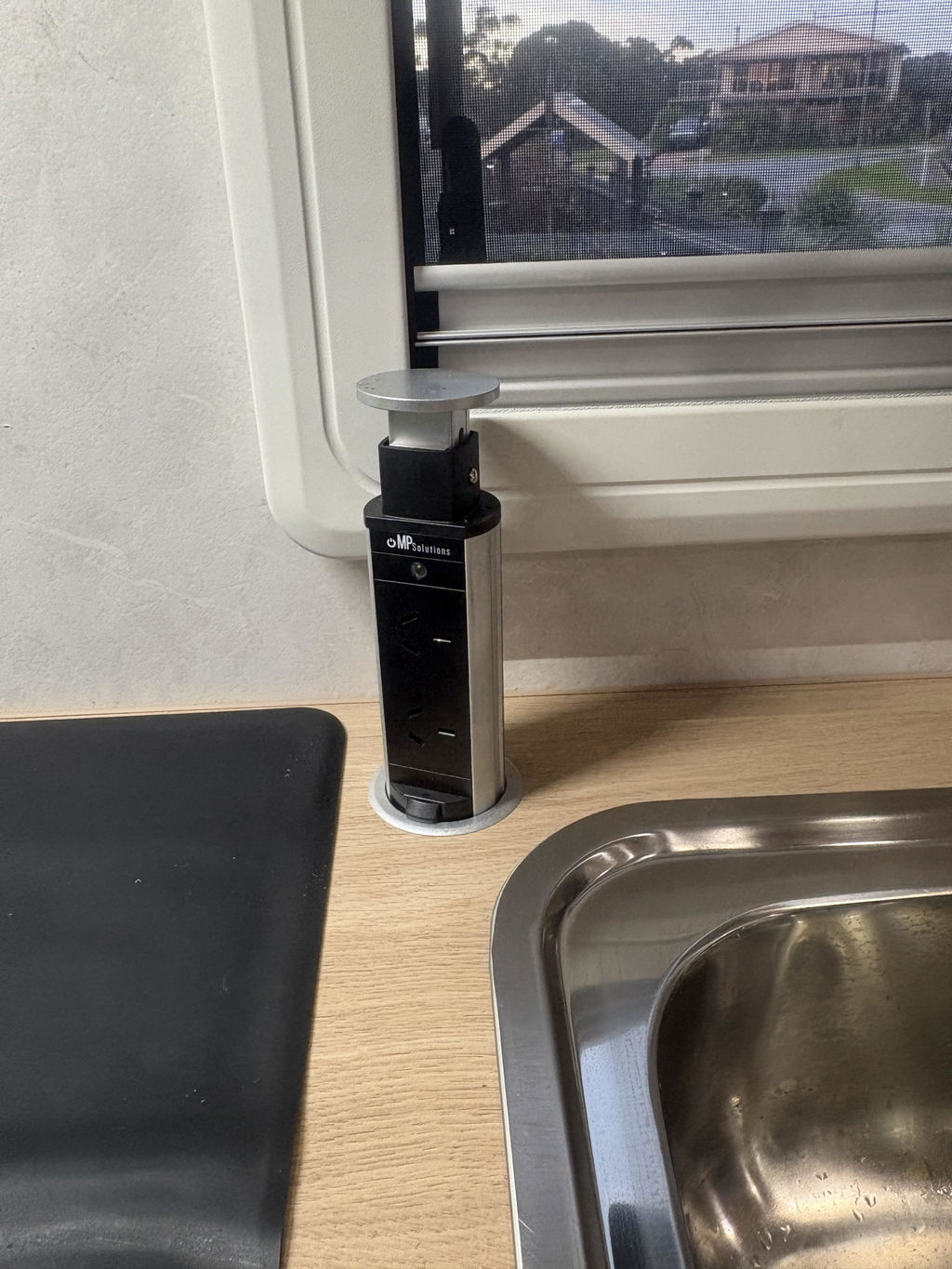

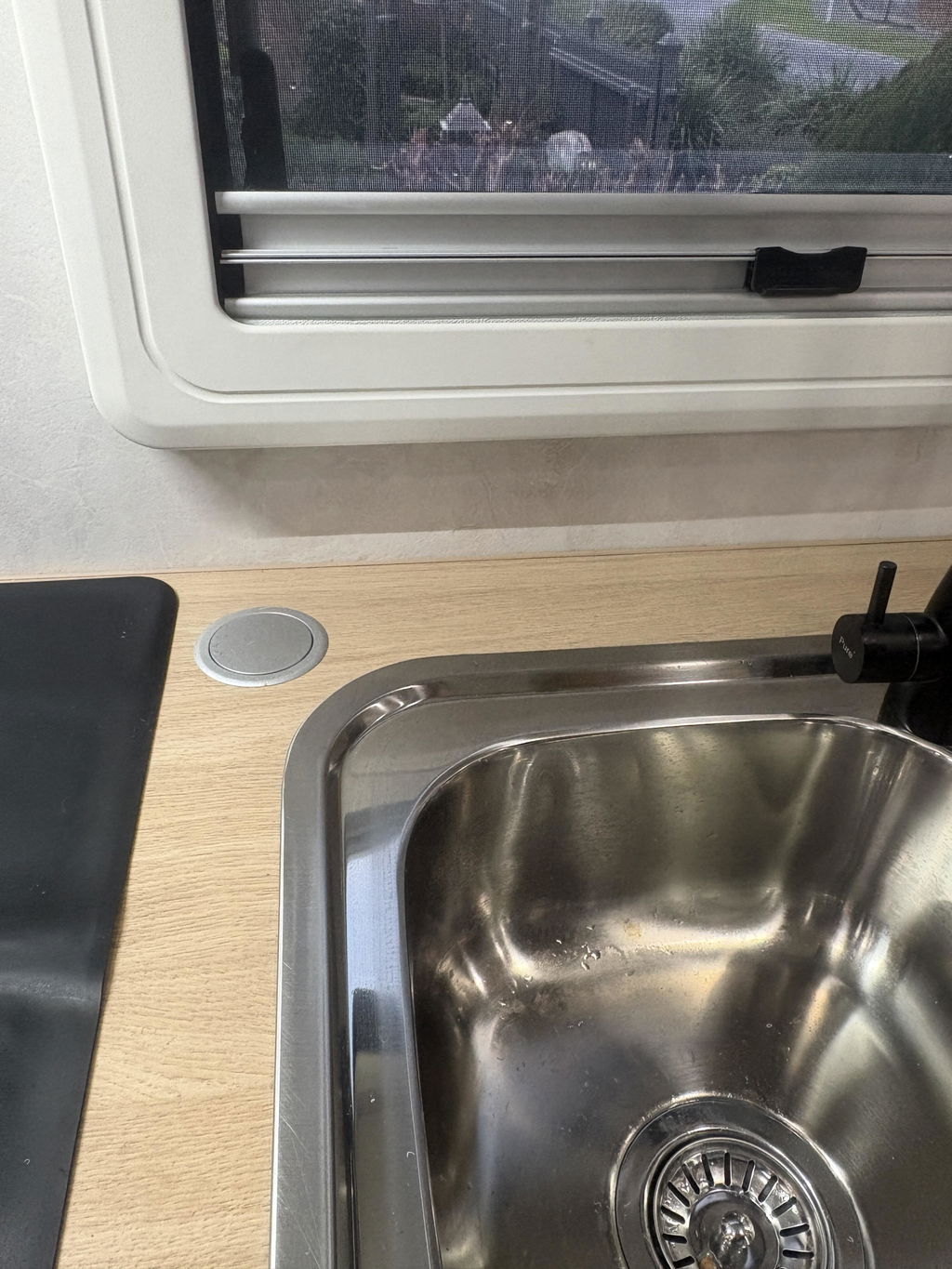

Manual-lift design
Press the lid to release it, then lift the unit to expose the outlets.
Product guide
Compact manual-lift pop-up outlet with two AU power outlets and no USB charging ports.
Features
Key functions and connections at a glance.
Two AU power outlets
A compact power-only configuration with no built-in USB charging ports.
Glossy silver and black
Glossy silver top and body with black outlets.
Installation planning
Confirm the opening, below-surface space and power connection before cutting the benchtop.
60mm opening
Plan a 60mm opening with a +/- 6mm tolerance.
280mm below-surface space
Allow 280mm below the top surface for the unit, with additional room for the lead and plug.
Fitted AU plug
Supplied with a 1.8m lead and fitted AU plug for connection below the benchtop.
Important: IP20 and indoor use only. Keep the unit and connections dry and do not exceed 10A / 2400W total.
Specifications
Use these details with the supplied instructions and the rating label on the product.
Electrical
240V AC, 50Hz; 10A and 2400W total maximum. IP20.
Connections
Two AU power outlets; no USB-A, USB-C or wireless charging.
Model and construction
Model V8GSBO; PVC, ABS and aluminium construction; 24-month warranty.
Downloads and support
Review the current technical sheet before installation.
V8GSBO technical sheet
Current dimensions, ratings and installation information for V8GSBO.
Download PDF (opens in a new tab)
Product and installation support
Installation uses a 60mm opening with a +/- 6mm tolerance, 280mm below-surface space and a fitted 1.8m AU lead and plug.
Contact support (opens in a new tab)
Frequently asked questions
Does it have USB charging?
No. V8GSBO is a compact power-only model with two AU outlets.
What opening is required?
Plan a 60mm opening with a +/- 6mm tolerance.
Does it need hardwiring?
No hardwiring is required for normal installation because the unit has a fitted AU plug. Use a licensed electrician for any electrical alteration.
Beautifully seamless
A compact and sturdy manual-lift retractable power outlet.
Plug and play
A single 1.8m cable plugs into a AU wall socket.
Use as specified
For indoor benchtop use. Follow the supplied instructions, keep connections dry and do not exceed the product rating.
60mm Hole
Fits into a hole 60mm diameter.
Maximum output
10A, 240V AC, 50Hz and 2,400W maximum total load.
