“Amazing product. Makes the kitchen look great. Keeps everything tidy. Spill free makes it even more convenient. Motor works smoothly.”Jasmine Thind · Verified buyer
“The motorised pop up power socket blends in perfectly with the stone counter top due to it's slim line design.”Anonymous · Verified buyer
“Looks the part in my new kitchen.”R M Scott · Verified buyer

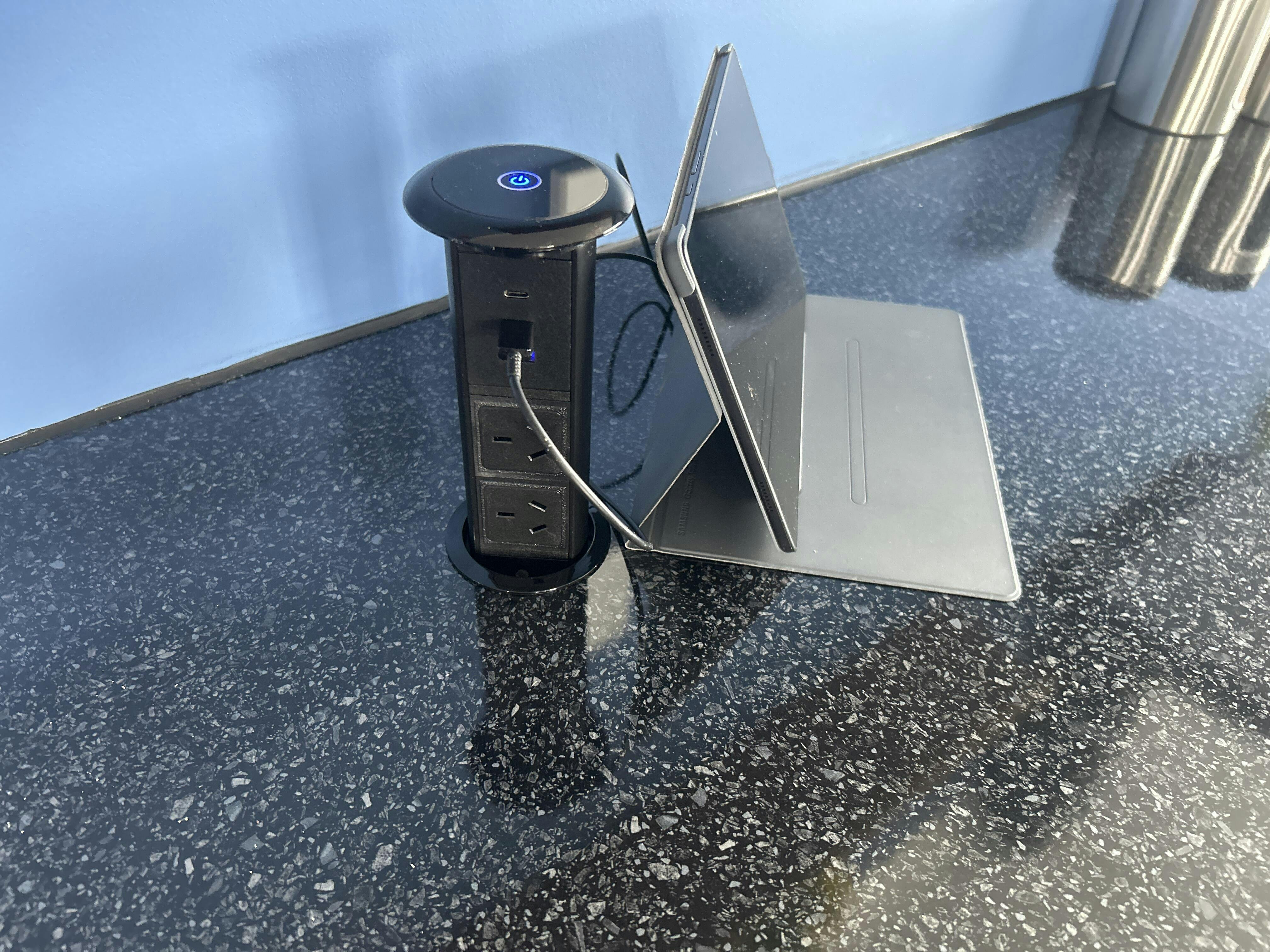

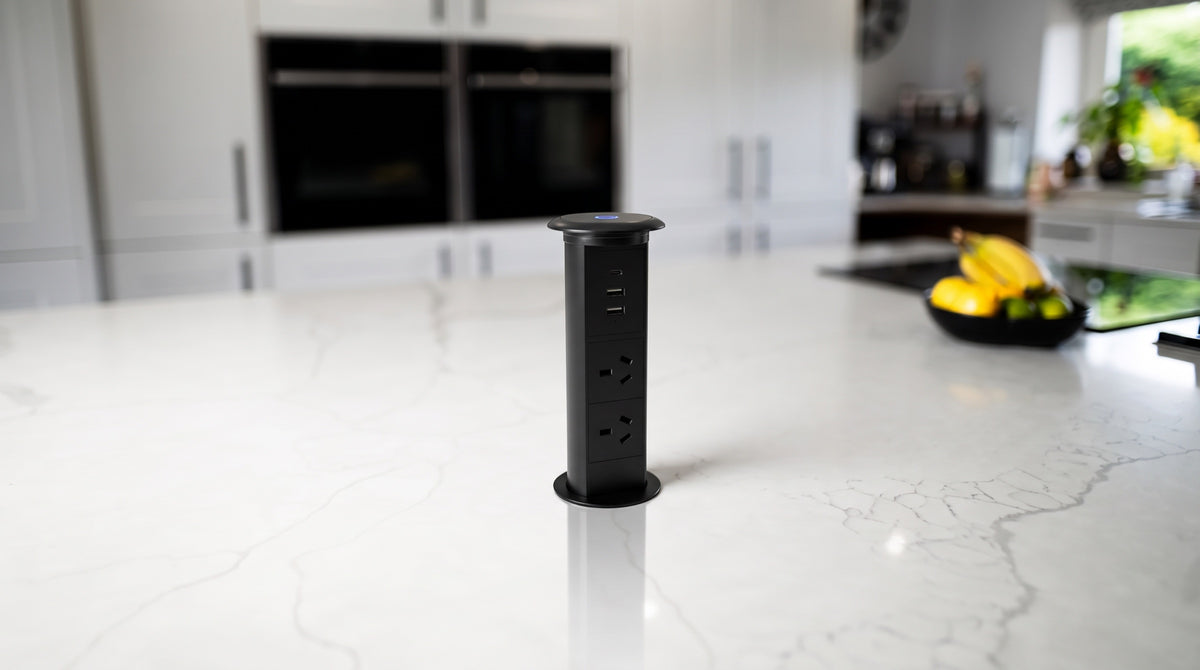

In the kitchen
-

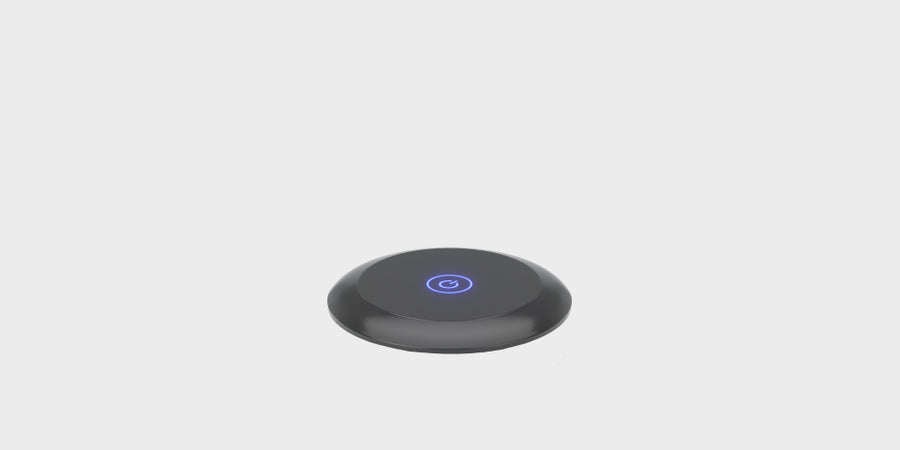

Flush with the benchtop when it’s down.
-
Up with a double-tap when you need power.
-
Charge your phone on the lid.
-

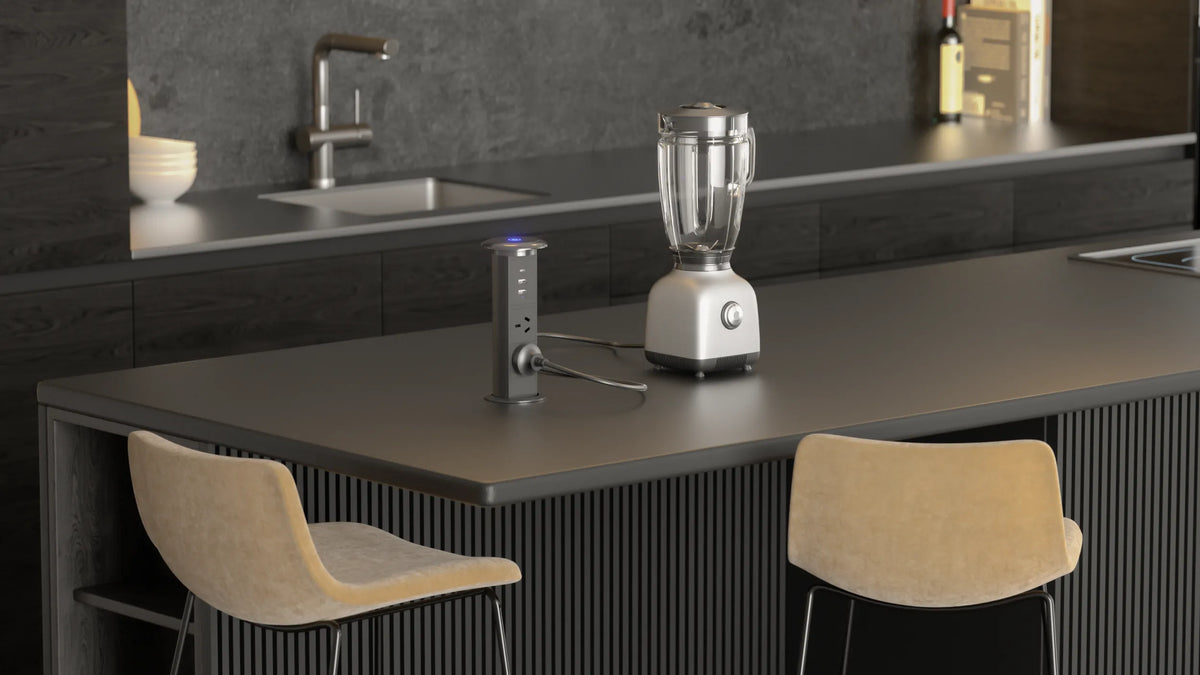

Power for appliances, right where you cook.
Why the V3L
Motorised power, faster charging and wireless convenience, hidden in your benchtop.
Double-tap to raise
A built-in motor lifts it out of the benchtop, and lowers it away again.

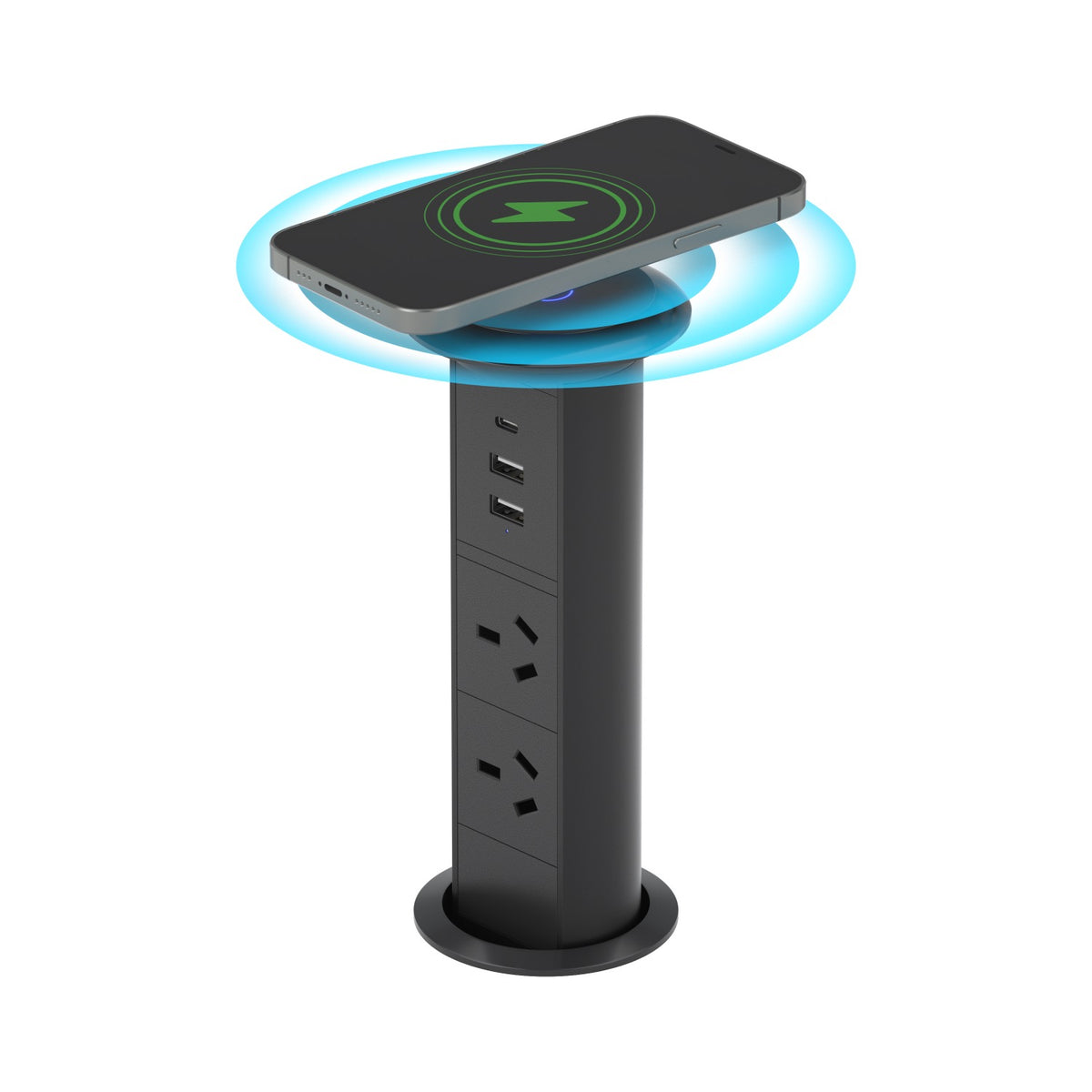

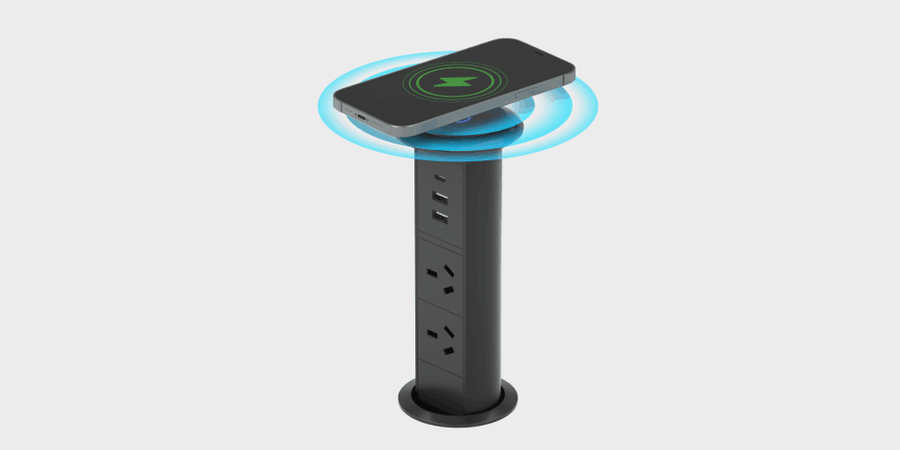

Charges on the lid
Set your phone on the lid for Qi wireless charging up to 10 W.

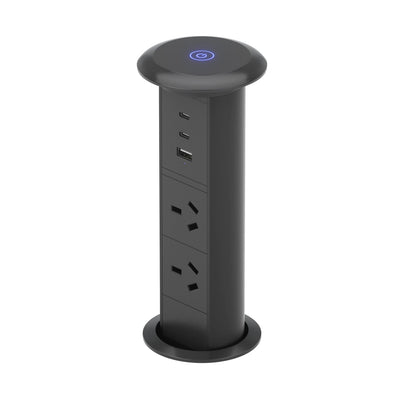

Fast USB-C

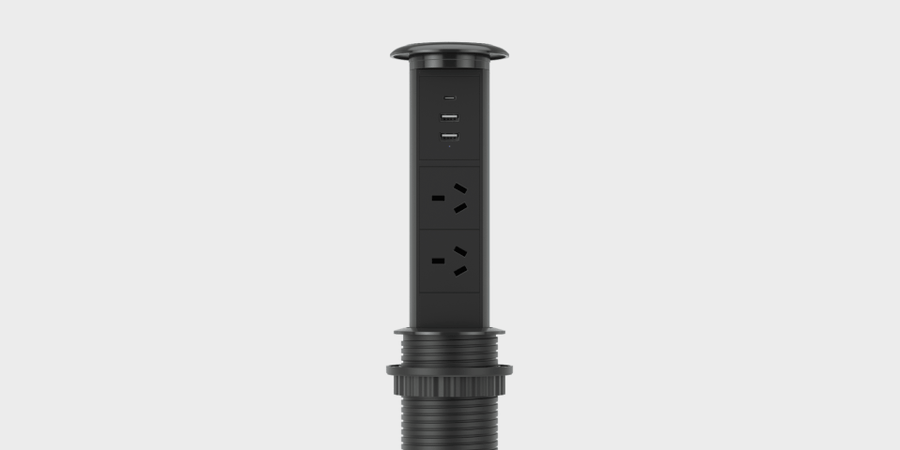

Two USB-C ports up to 30 W and a USB-A port, beside two AU outlets.
Spill-resistant when closed
The overlapping lid helps resist accidental splashes when fully closed.
Fits a 65 mm hole
One of the smallest cut-outs in our range, held firm by a locking ring.

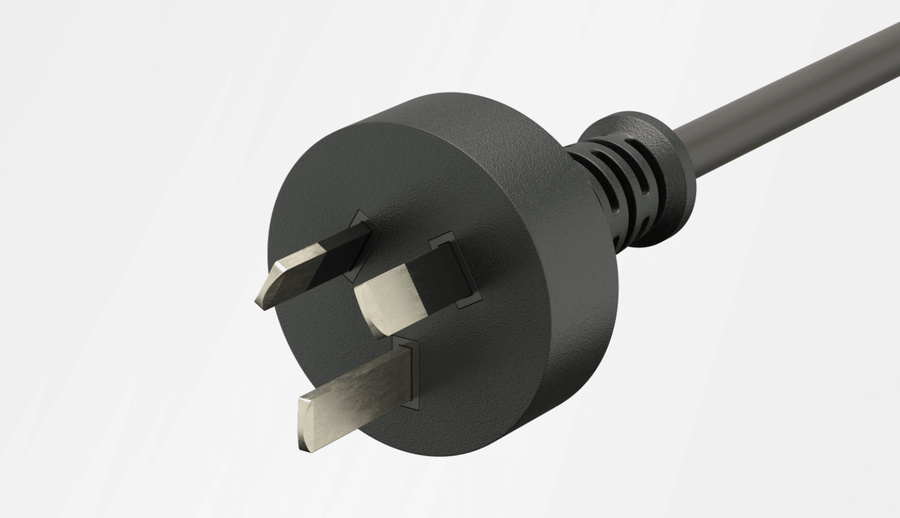

Plugs in, no hardwiring
A 1.8 m lead with a fitted AU plug goes to a power point under the bench.
Before you buy
Check these four things and the V3L will suit your bench.
No larger than 70 mm.
Stone, timber or laminate.
From the top of the bench.
To a power point below.
Installs in five steps
No electrical work needed. It plugs into a power point under the bench.
- 1
Step 1: Cut a 65 mm hole in the benchtop. The 1:1 template marks the centre.
- 2
Step 2: Unscrew the locking ring from the body.
- 3
Step 3: Place the V3L into the hole from above.
- 4
Step 4: Screw the ring back on from underneath and tighten it.
- 5
Step 5: Plug the lead into a power point under the bench.
Full instructions are in the user manual.

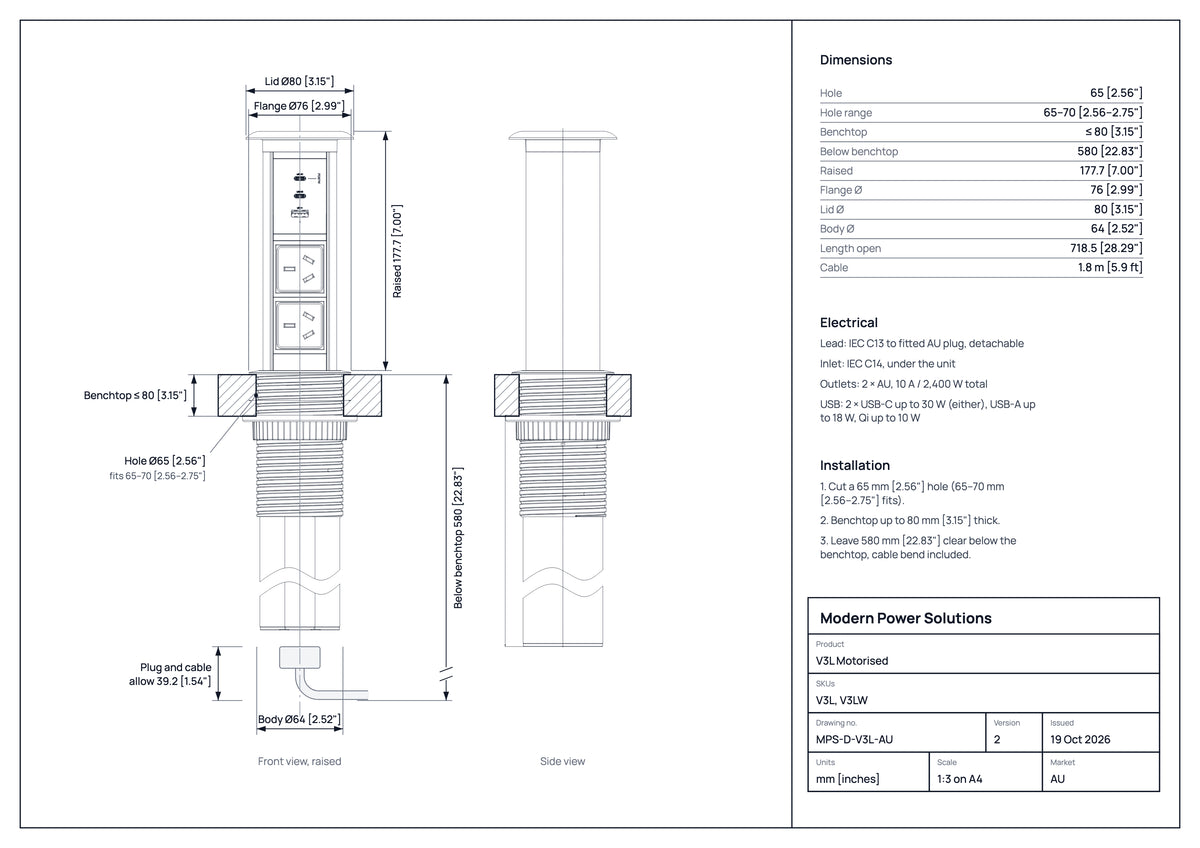

Tech specs
Size and weight
- Lid
- Ø 80 mm; sits 6 mm above the benchtop when lowered
- Flange
- Ø 76 mm; rests on the benchtop
- Height when raised
- 185 mm above the benchtop
- Below the benchtop
- 504 mm, from the benchtop to the base

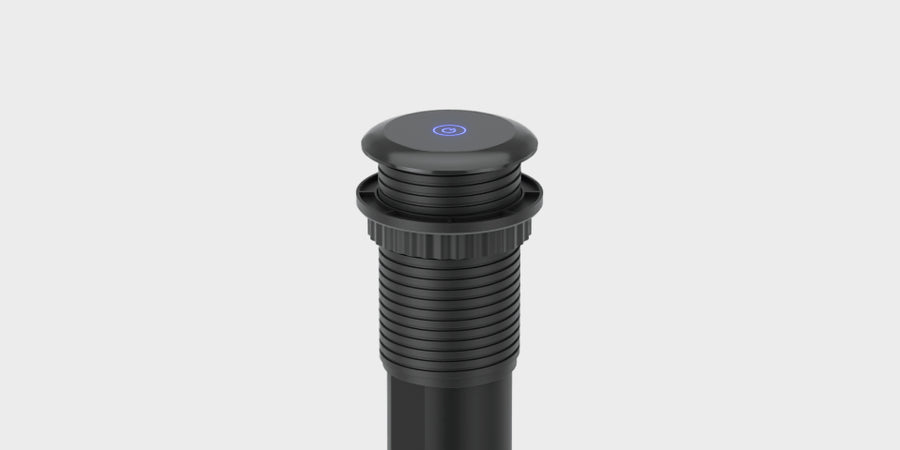

- Threaded body
- Ø 64 mm
- Locking ring
- Ø 85 mm
- Weight
- 1.4 kg
Hole size
The body has to fit through the hole, and the flange has to sit on the benchtop around it.
Under 65 mm
Too tight. The 64 mm threaded body won’t go through.
65–70 mm
Just right. The body drops through and the 76 mm flange sits on the benchtop.
Over 70 mm
Too loose. The 76 mm flange has too little benchtop to sit on.
Cross-sections, not to scale.
Installation
- Cut-out
- 65 mm (no larger than 70 mm)
- Benchtop thickness
- Up to 90 mm
- Clear space below
- 560 mm from the top of the bench
- Lead
- 1.8 m with a fitted AU plug
- Cable
- IEC C13/C14, H05VV-F 3 × 1.5 mm²
Electrical
- Rated voltage
- 240 V AC, 50 Hz
- Rated load
- 10 A, 2400 W total
- Power outlets
- 2 × AU
- Protection
- IP20, indoor dry locations only
Charging
- USB-C
- 2 ports, either up to 30 W
- USB-A
- 1 port, up to 18 W
- Several ports at once
- 15 W shared (5 V/3 A)
- Wireless
- Qi, up to 10 W
Product
- Model
- V3L (Australia)
- Finish
- Black top, shell and outlets
- Materials
- PVC, ABS and aluminium
- Lift
- Motorised, double-tap button
- Operating temperature
- 0–40 °C
- Warranty
- 24 months, extendable to 4 years
- Box
- 58.1 × 16.8 × 11.8 cm, 2.9 kg
Which pop-up is right for you?

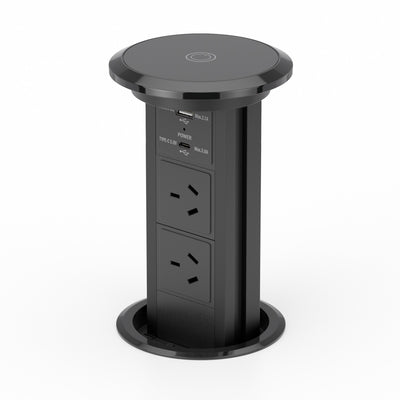

V3C
$399.95
- Motorised lift
- 95 mm cut-out
- 2 × AU outlets
- USB-C up to 15 W
- USB-A up to 10 W
- Qi wireless up to 10 W
V3L
$349.95
- Motorised lift
- 65 mm cut-out
- 2 × AU outlets
- 2 × USB-C up to 30 W
- USB-A up to 18 W
- Qi wireless up to 10 W

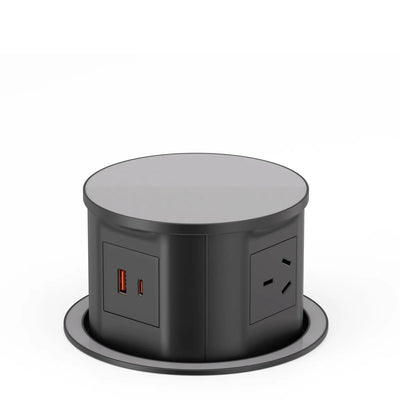

V14JB
$249.95
- Gas-strut lift
- 120 mm cut-out
- 4 × AU outlets (1 underneath)
- USB-C up to 20 W
- USB-A up to 18 W
- Qi wireless up to 15 W
Safety and care
Where to use it
- Indoor, dry benchtops only (IP20).
- Keep the unit and its connections dry when it's raised.
Power
- Don't exceed 10 A / 2400 W in total.
- Plug the lead into a power point under the bench. No hardwiring.
Installing
- Allow 560 mm of clear space below the bench top.
- If you need a new power point, use a licensed electrician.

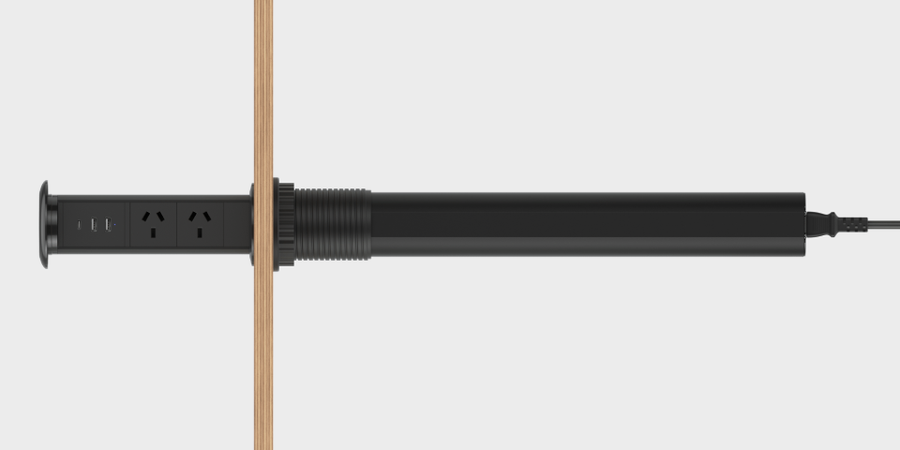

Orientation
- Planning a non-upright installation? Confirm the permitted orientation in the instructions first.
Questions and answers
Do I need an electrician?
No electrical work is needed to install the V3L. It has a 1.8 m lead with a fitted AU plug, so it plugs into a power point below the benchtop. If there's no power point there, have a licensed electrician add one.
What size hole do I need?
65 mm. You can go up to 70 mm, but not smaller than 65 mm, because the threaded body is 64 mm across. The benchtop can be up to 90 mm thick. Allow 560 mm of clear space below the top of the bench, plus room for the lead and plug. The 1:1 cut-out template marks the centre.
How tall is it when raised?
It rises 185 mm above the benchtop, and the lid is 80 mm across. When it's lowered, only the lid shows, sitting 6 mm above the benchtop.
How do I raise and lower it?
Double-tap the button on the lid with your finger, then wait about a second. The double tap stops it opening or closing by accident when you put your phone on the lid to charge.
Which charging ports are included?
Two USB-C ports, one USB-A port and a Qi wireless charging lid. Either USB-C port gives up to 30 W and the USB-A port up to 18 W; when several ports are used at once, they share 15 W. Wireless charging is up to 10 W.
Is the V3L waterproof?
No. It's rated IP20 for dry, indoor locations. The overlapping lid helps resist accidental splashes only when fully closed, so keep the unit and its connections dry when raised.
Should I choose the V3L or the V3C?
The V3L fits a smaller 65 mm hole and has two faster USB-C ports (up to 30 W). The V3C needs a 95 mm hole and has one USB-C port (up to 15 W). Both are motorised and have wireless charging.
How do I make a warranty claim?
Submit a support request. We keep records matched to product serial numbers, so you don't need your receipt. If something goes wrong after the warranty ends, we offer an affordable repair or replacement service.
