Manual-lift design
Pull the unit up for access and retract it when the connections are no longer required.
Product guide
Manual-lift pop-up outlet with two AU power outlets, USB-A and USB-C, finished with a black stainless-steel top, silver body and black outlets.
Features
Key functions and connections at a glance.
Power and USB
Two AU power outlets, one USB-A port and one USB-C port.
Finish
Finished with a black stainless-steel top, silver body and black outlets.
Installation planning
Confirm the latest controlled opening dimensions before cutting.
80–82mm opening
Plan an 80–82mm installation opening and confirm the actual unit before permanent cutting.
280mm below-surface space
Allow 280mm below the top surface for the unit, with additional room for the lead and plug.
Fitted AU plug

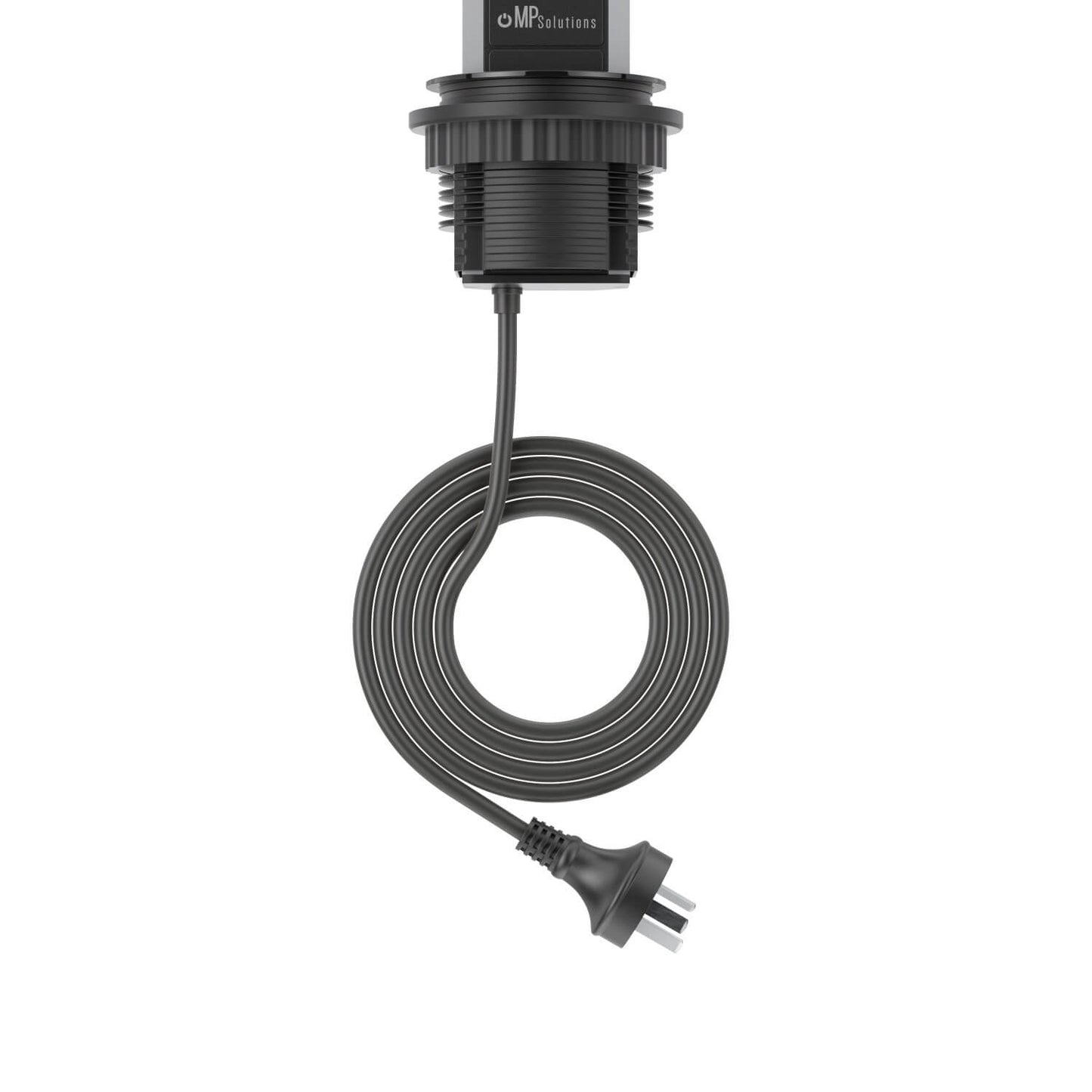

Supplied with a 1.8m lead and fitted AU plug for connection below the benchtop.
Important: Indoor dry-location use only. Keep the unit and connections dry and do not exceed 10A / 2400W total.
Specifications
Use these details with the supplied instructions and the rating label on the product.
Electrical
240V AC, 50Hz; 10A and 2400W total maximum.
Connections
Two AU power outlets, one USB-A port and one USB-C port. Charging wattages are not stated here because a current verified product label was not available.
Model and finish
Model V7BSSB; black stainless-steel top, silver body and black outlets; 24-month warranty.
Downloads and support
Request the latest controlled installation drawing from support before fabrication.
Frequently asked questions
What opening is required?
Plan an 80–82mm installation opening and confirm the actual unit before permanent cutting.
Which connections are included?
Two AU power outlets, one USB-A port and one USB-C port.
Does it need hardwiring?
No hardwiring is required for normal installation because the unit has a fitted AU plug. Use a licensed electrician for any electrical alteration.
Beautifully seamless
A compact and sturdy manual-lift retractable power outlet.
Plug and play
A single 1.8m cable plugs into a AU wall socket.
Use as specified
For indoor benchtop use. Follow the supplied instructions, keep connections dry and do not exceed the product rating.
80–82mm installation opening
Plan an 80–82mm opening and confirm the actual unit before cutting the benchtop.
Check benchtop thickness
Confirm the supplied fixing method against the benchtop thickness and actual unit. Contact support before using any alternate fixing method.
Maximum AC output
10A, 240V AC, 50Hz and 2,400W maximum total load. Confirm USB output from the current product label or support.
Current cutout drawing
Contact Modern Power Solutions for the latest controlled version before cutting or installation.
