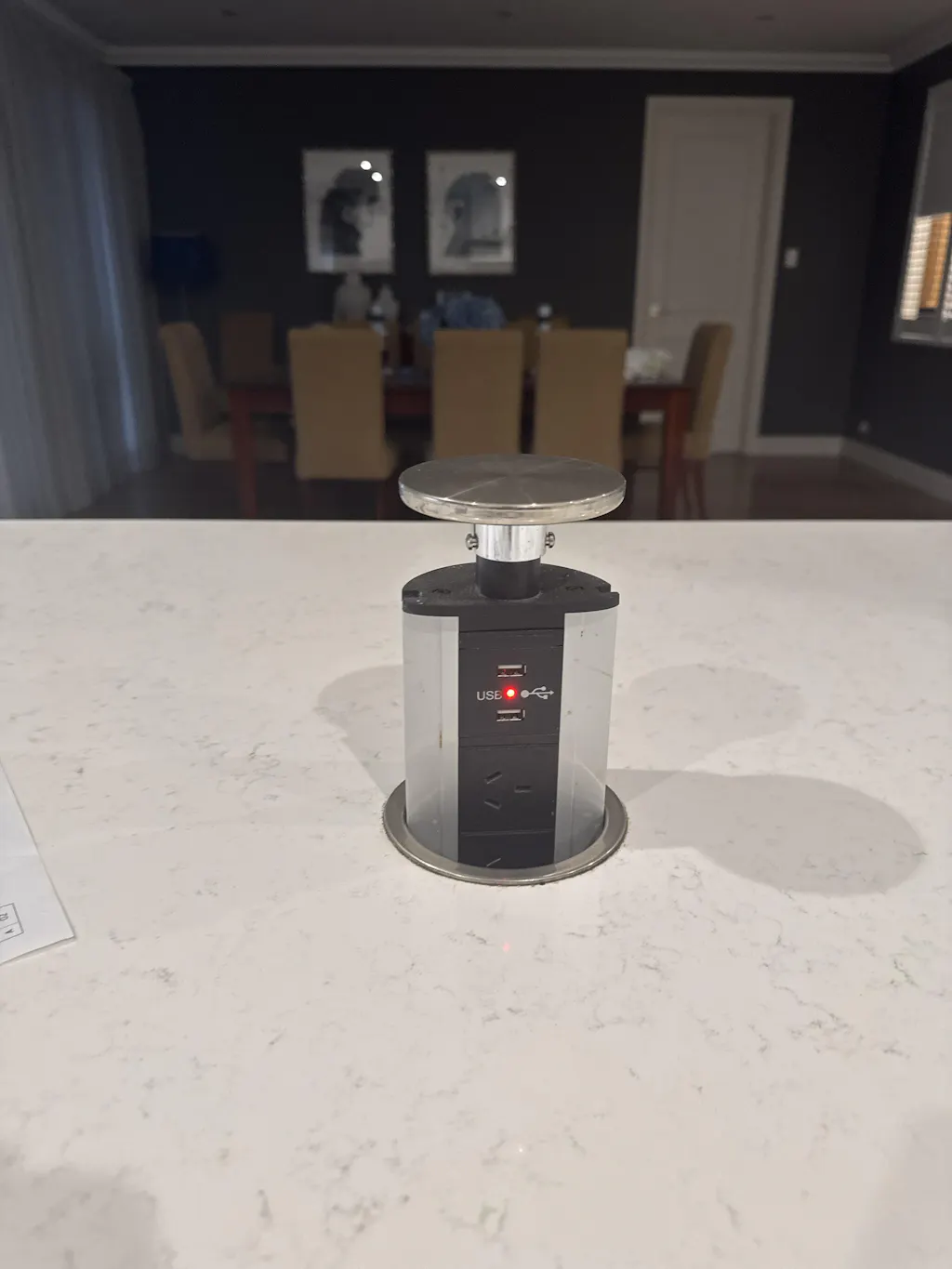

Manual-lift design
Pull the unit up for access and retract it when the connections are no longer required.
Product guide
Compact manual-lift pop-up outlet with two AU power outlets, one USB-A port and two USB-C ports, finished with a black top, silver body and black outlets.
Features
Key functions and connections at a glance.
Power and charging
Two AU power outlets, one USB-A port and two USB-C ports.
Up to 30W USB-C
Either USB-C port supports up to 30W; the USB-A port supports up to 18W.
Installation planning
Confirm the controlled opening dimensions, below-surface space and power connection before cutting the benchtop.
90mm nominal opening
Plan a 90mm nominal opening and trial-fit the actual unit before permanent cutting. No formal cutout tolerance is published.
340mm below-surface space
Allow 340mm below the top surface for the unit, with additional room for the lead and plug.
Fitted AU plug
Supplied with a 1.8m lead and fitted AU plug for connection below the benchtop.
Important: Keep the unit, plug and power connection dry. Do not exceed 10A / 2400W total, and use a licensed electrician for any electrical alteration.
Specifications
Use these details with the supplied instructions and the rating label on the product.
Electrical
240V AC, 50Hz; 10A and 2400W total maximum.
Charging
USB-C 1 / USB-C 2: up to 30W each. USB-A: up to 18W. Multiple-port output: 5V / 3A shared.
Model and finish
Model V1BC; black top, silver body and black outlets; 24-month warranty.
Downloads and support
Request the latest controlled cutout drawing before fabrication.
Current cutout information
The opening is 90mm nominal. Contact support for the latest controlled information before fabrication.
Contact support →
Product and installation support
Ask Modern Power Solutions to confirm compatibility, current dimensions or installation requirements before cutting.
Contact support →
Frequently asked questions
What opening is required?
Plan a 90mm nominal opening and trial-fit the actual unit before permanent cutting. Contact support if a controlled drawing is required.
How many USB ports are included?
One USB-A port and two USB-C ports. Either USB-C port supports up to 30W when used on its own.
Does it need hardwiring?
No hardwiring is required for normal installation because the unit has a fitted AU plug. Use a licensed electrician for any electrical alteration.

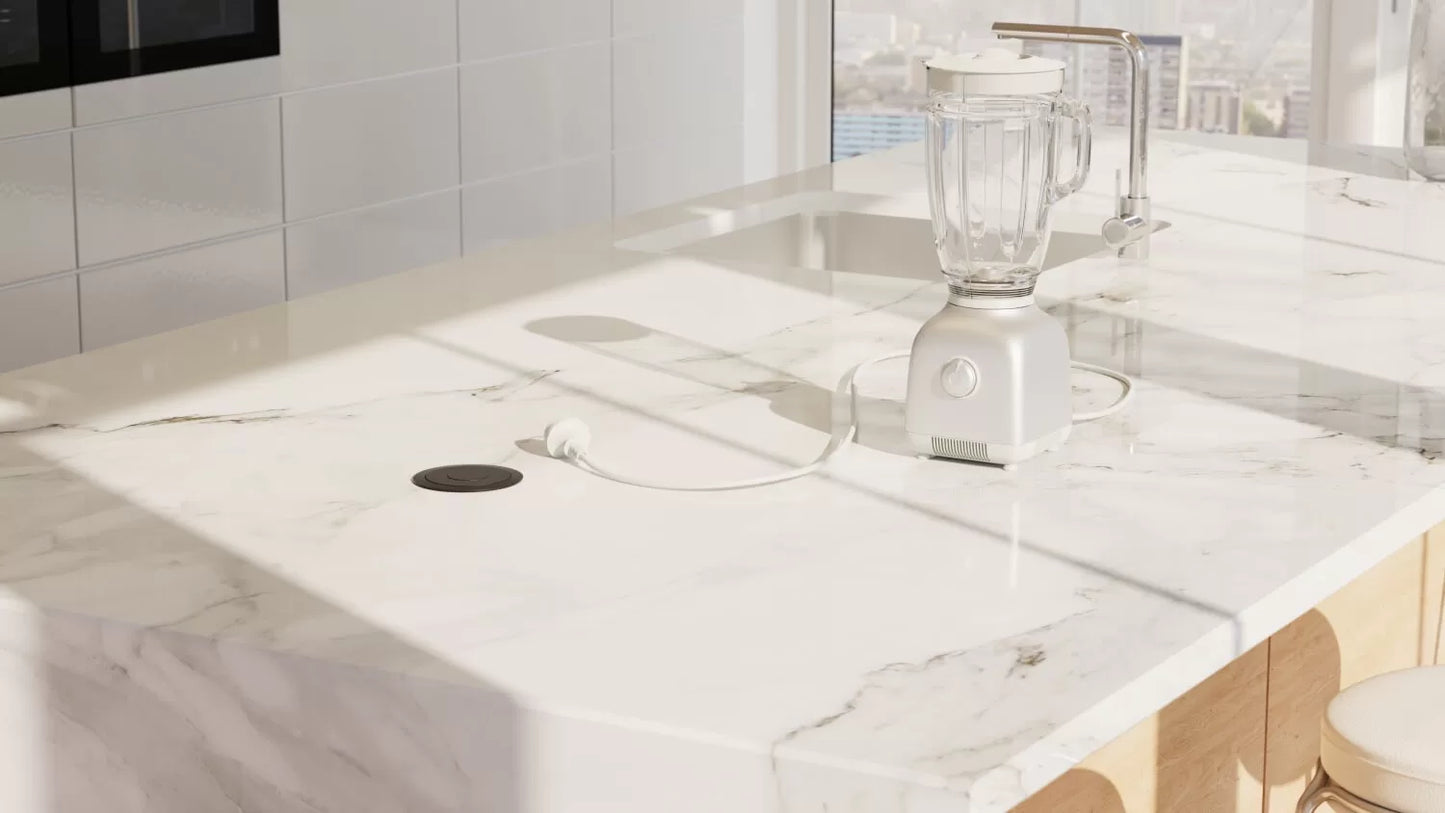

Beautifully seamless
A compact and sturdy manual-lift retractable power socket
Plug and play
A single 1.8m cable plugs into a AU wall socket.
Use as specified
For indoor benchtop use. Follow the supplied instructions, keep connections dry and do not exceed the product rating.
90mm nominal opening
Plan a 90mm nominal opening and trial-fit the actual unit before permanent cutting.
Maximum output
10A, 240V AC, 50Hz and 2,400W maximum total load. USB-C supports up to 30W.
Current technical sheet
Contact Modern Power Solutions for the latest controlled version before cutting or installation.
Warranty and support
We are here to help before and after purchase. Review warranty and service information.
Returns information
Returns are subject to eligibility and policy conditions. Review the returns policy.
