Manual-lift design
Press the lid to release it, then lift the unit to expose the connections.
V2GSB at a glance
Manual-lift power and charging for everyday benchtop use.

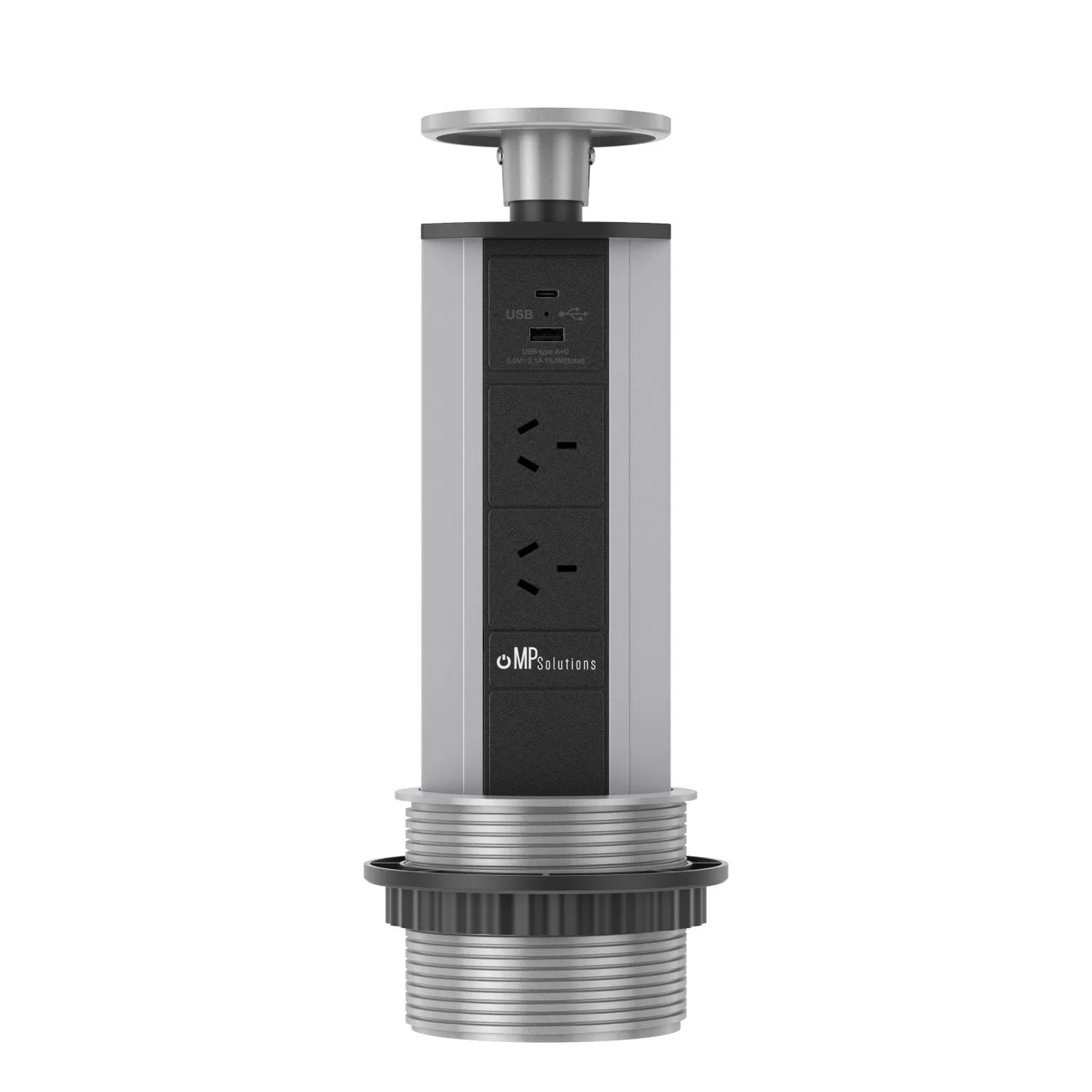

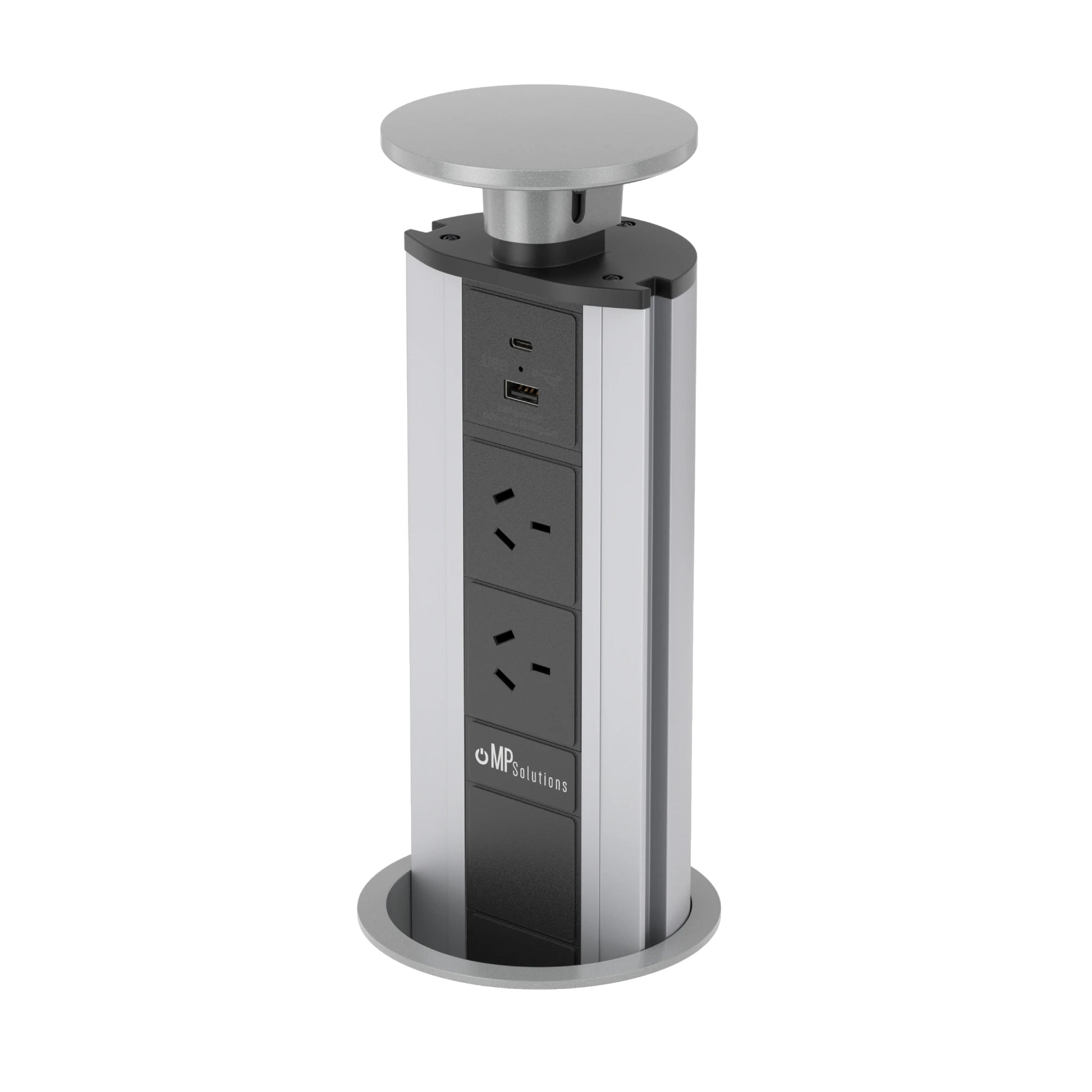

Manual-lift pop-up outlet with two AU power outlets, USB-A and USB-C in a glossy silver and black finish.
Features
Power and USB
Two AU power outlets, one USB-A port and one USB-C port.
Glossy silver and black
Glossy silver top and body with black outlets.
Installation planning
100mm opening
Plan a 100mm opening with a +/- 5mm tolerance.
Locking-ring installation
The unit drops into the opening and is secured from below with its locking ring.
Fitted AU plug
Supplied with a 1.8m lead and fitted AU plug for connection below the benchtop.
Important: Indoor use only. Keep the unit and connections dry and do not exceed 10A / 2400W total.
Beautifully seamless
A compact and sturdy manual-lift retractable power socket.
Plug and play
A single 1.8m cable plugs into a AU wall socket.
Use as specified
For indoor benchtop use. Follow the supplied instructions, keep connections dry and do not exceed the product rating.
100mm hole
Fits into a hole 100mm (+/- 5mm) in diameter.
Maximum output
USB-A supports up to 18W; USB-C supports up to 30W; combined use is up to 15W shared.
Warranty and support
We are here to help before and after purchase. Review warranty and service information.
Returns information
Returns are subject to eligibility and policy conditions. Review the returns policy.
Shipping information
Delivery times vary by location. View Australian delivery options and estimated timeframes.
Dimensions and details
Specifications, support and common questions.
Electrical, installation, delivery and support information is consolidated here so it is easier to scan.
Specifications
Electrical
240V AC, 50Hz; 10A and 2400W total maximum. IP20.
USB charging
USB-A supports up to 18W; USB-C supports up to 30W; combined use is up to 15W shared.
Model and construction
Model V2GSB; PVC, ABS and aluminium construction; 24-month warranty.
Delivery, warranty and support
V2GSB technical sheet
Current dimensions, ratings and installation information for V2GSB.
Product and installation support
Installation uses a 100mm opening with a +/- 5mm tolerance, a locking ring and a fitted 1.8m AU lead and plug.
Shipping information
Delivery times vary by location. View Australian delivery options and estimated timeframes.
Frequently asked questions
What opening is required?
Plan a 100mm opening with a +/- 5mm tolerance.
How much USB power is available?
USB-A supports up to 18W and USB-C supports up to 30W when used alone. Combined use is up to 15W shared.
Does it need hardwiring?
No hardwiring is required for normal installation because the unit has a fitted AU plug. Use a licensed electrician for any electrical alteration.
