Motorised lift
Use the top control to raise or retract the outlet.
Product guide
Motorised pop-up outlet with two AU power outlets, USB-A, USB-C and 10W wireless charging, finished with a white top and outlets with a silver body.
Features
Key functions and connections at a glance.

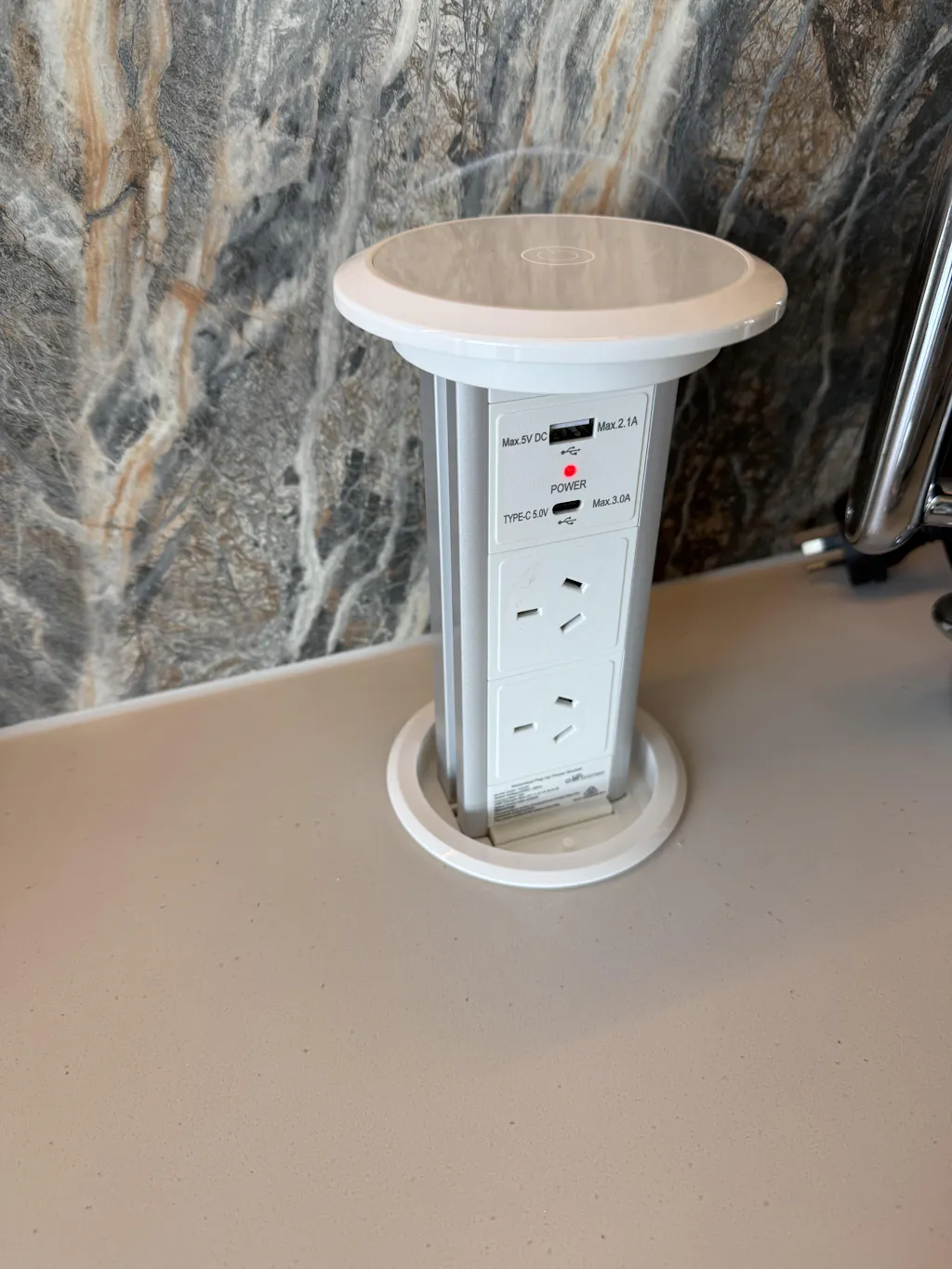

Power and USB
Two AU power outlets, one USB-A port and one USB-C port.
Wireless charging
Charge a compatible device on the top surface at up to 10W.
Installation planning
Confirm the opening, below-surface space and dry power connection before cutting the benchtop.
95mm opening
Plan a 95mm opening with a +/- 3mm tolerance.
370mm below-surface space
Allow 370mm below the top surface for the unit, with additional room for the lead and plug.
Fitted AU plug
Supplied with a 1.8m lead and fitted AU plug. Do not cut or modify the lead.
Important: IP54 applies only when the unit is fully closed. Keep liquids away from exposed outlets and charging ports, do not modify the fitted lead, and do not exceed 10A / 2400W total.
Specifications
Use these details with the supplied instructions and the rating label on the product.
Electrical
240V AC, 50Hz; 10A and 2400W total maximum.
Charging
USB-A: up to 10W. USB-C: up to 15W. Qi wireless charging: up to 10W.
Protection and compliance
IP54 only when fully closed. V3CW is listed on SAA certificate SAA-232006-EA. 24-month warranty.
Downloads and support
Review the current technical sheet before installation.
Frequently asked questions
Is the V3CW waterproof?
No. It is rated IP54 only when fully closed. Keep the raised unit and all exposed connections dry.
What opening is required?
Plan a 95mm opening with a +/- 3mm tolerance and confirm the current technical sheet before cutting.
Can the fitted cable be cut for hardwiring?
Do not cut or modify the supplied lead. Consult a licensed electrician if a fixed-wiring installation is required.
The difference between ordinary and extraordinary is that little extra
Fast installation
Fits into a hole 95mm in diameter.

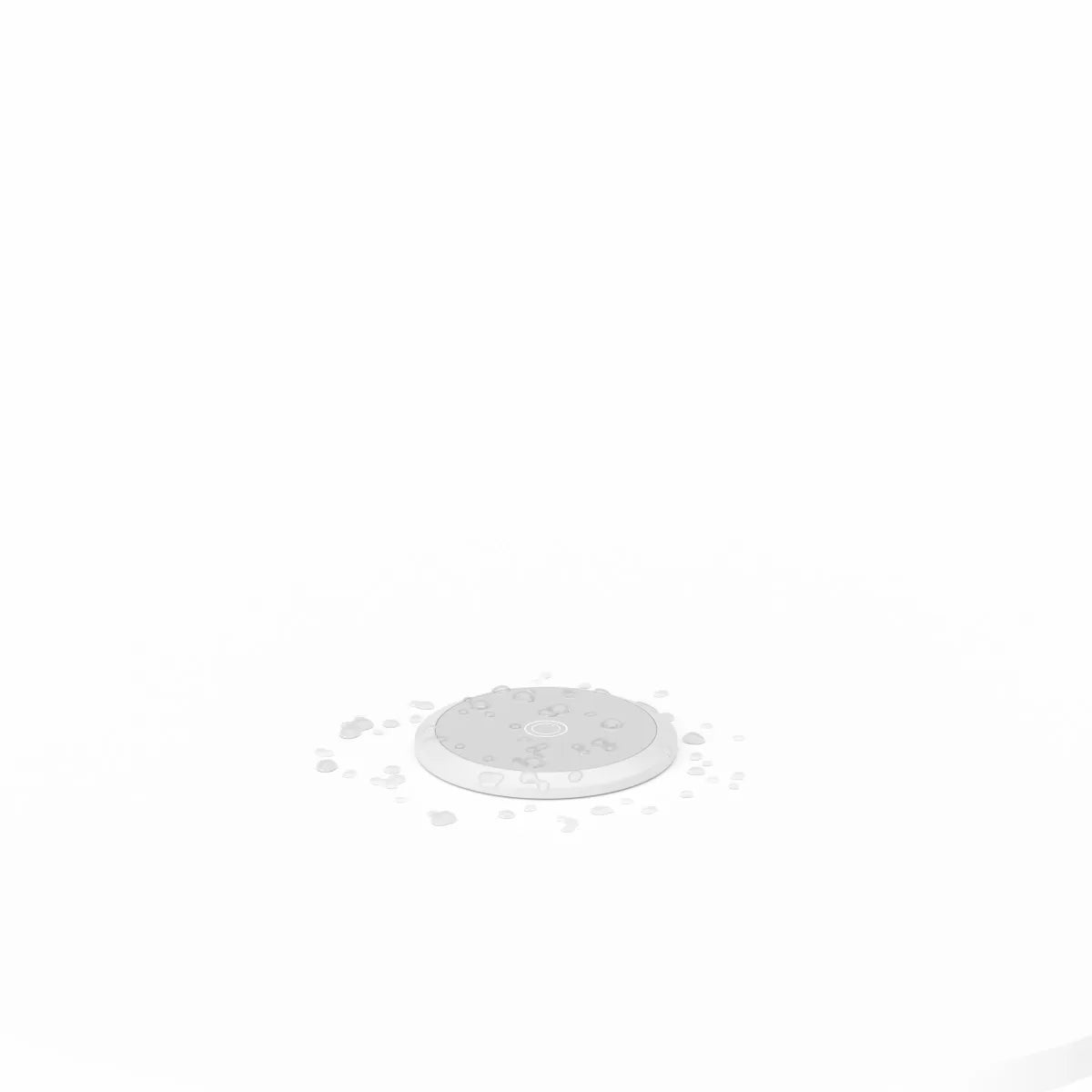

IP54 when fully closed
The V3CW is rated IP54 only when fully closed, helping resist accidental spills during indoor benchtop use. Keep the unit and all connections dry when raised.
Wireless charging
Place your mobile phone on the top to charge it.
Stable when raised
The extended body is designed to remain stable during normal everyday use.
Plug and play
A heavy-duty 1.8m cable with a fitted AU plug connects to a wall outlet. Do not cut or modify the cable; consult a licensed electrician if a fixed-wiring installation is required.
Installation orientation
Planning a non-upright installation? Confirm the permitted orientation in the current instructions and check the site conditions before installation.
Elegant design, high quality build
Constructed with an extruded aluminium body and hardened-glass top.
The most intuitive design
Motorised lifting. Touch the top to raise or lower.
Maximum output
10A, 240V AC, 50Hz and 2,400W maximum total load. USB-A: 10W; USB-C: 15W; wireless charging: up to 10W.
SAA-certified electrical safety
Certified to AS/NZS standards (Certificate No: SAA-232006-EA).
Protective packaging
Designed to protect during shipping and storage. Each unit arrives in a durable, professionally presented carton that helps ensure it reaches you in perfect condition.
Use as specified
For indoor benchtop use. Follow the supplied instructions, keep connections dry and do not exceed the product rating.
