Smooth motorised access
Raise or retract the outlet from the top control, then keep the benchtop clear when power is not needed.
V3CS at a glance
Motorised access with a refined silver finish.
Customers most often mention the sturdy build, straightforward installation, smooth motor and polished appearance. Product, installation and service information is organised below for faster decisions.
Why choose V3CS
Two AU outlets
Power everyday benchtop appliances from two integrated Australian outlets.
USB and wireless charging
One USB-A port, one USB-C port and up to 10W Qi charging on the top surface.
Refined silver finish
A silver top and shell with black outlet faces create a crisp contrast for contemporary benchtops.
Check the fit before installation
Plan the 95mm opening
Plan a 95mm opening with a ±5mm tolerance (90–100mm acceptable range), then confirm benchtop thickness and clear space below.
Keep the cabinet space clear
Allow room below for the outlet body, locking ring, lead, plug and accessible power point.
Fitted AU plug
A 1.8m lead and fitted AU plug are supplied. Do not cut or modify the lead.
Installation note: Keep the outlet upright, allow accessible power below and use a licensed electrician for any fixed-wiring work.
The difference between ordinary and extraordinary is that little extra
95mm installation opening
Plan a 95mm opening with a ±5mm tolerance (90–100mm acceptable range). Confirm benchtop thickness and clear space below.
Splash-resistant when fully closed
When fully closed, the lid closes over the opening and helps keep incidental splashes and spills away from the socket faces. It is not waterproof; keep it dry, wipe up liquid promptly, and do not open or use it while wet.
Wireless charging
Charge compatible Qi phones on the top surface. Centre the phone and remove a thick case if charging is inconsistent.
Stable when raised
The extended body is designed to remain stable during normal everyday use.
Plug-in power connection
A heavy-duty 1.8m cable with a fitted AU plug connects to an accessible outlet below. Do not cut or modify the cable.

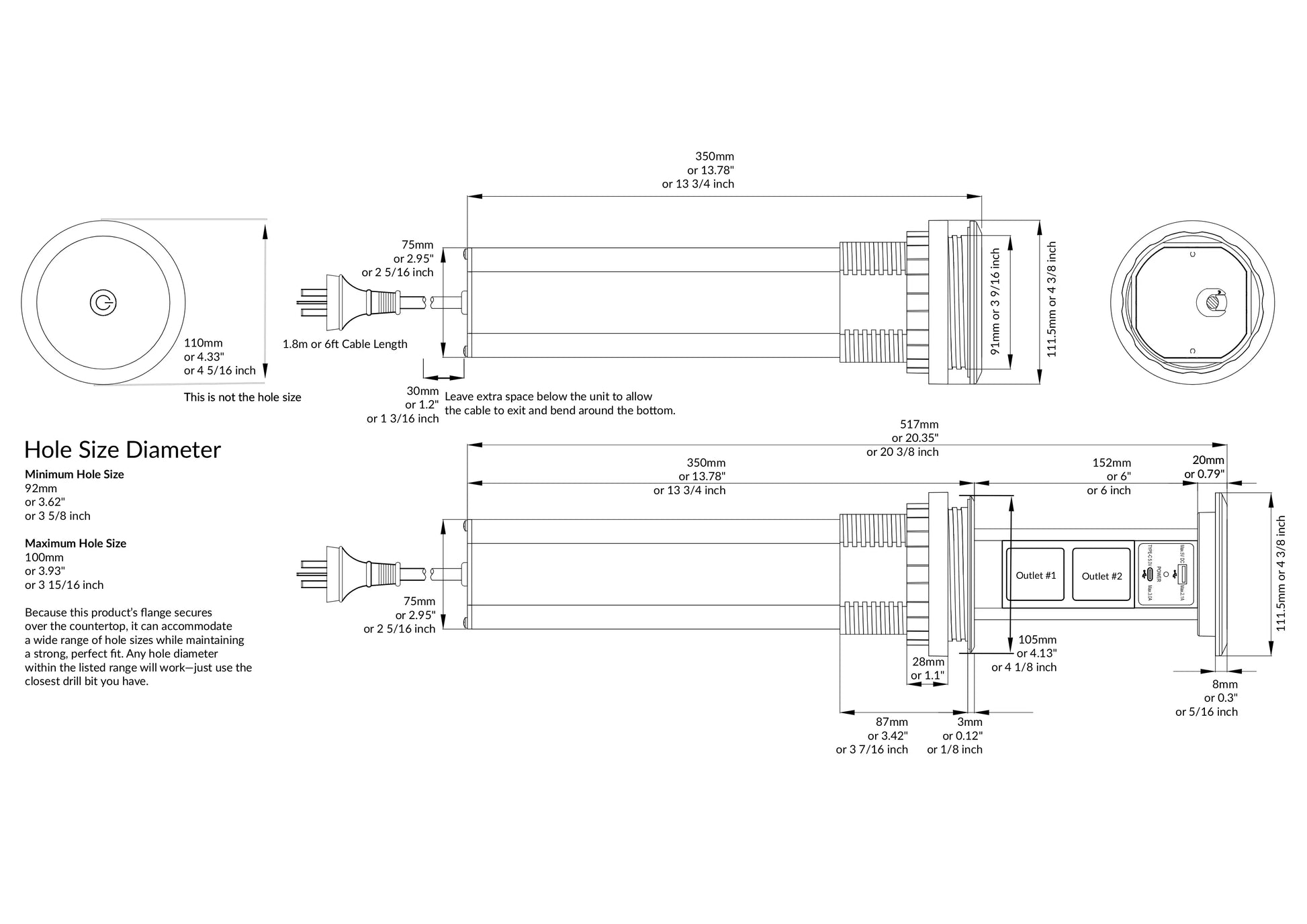

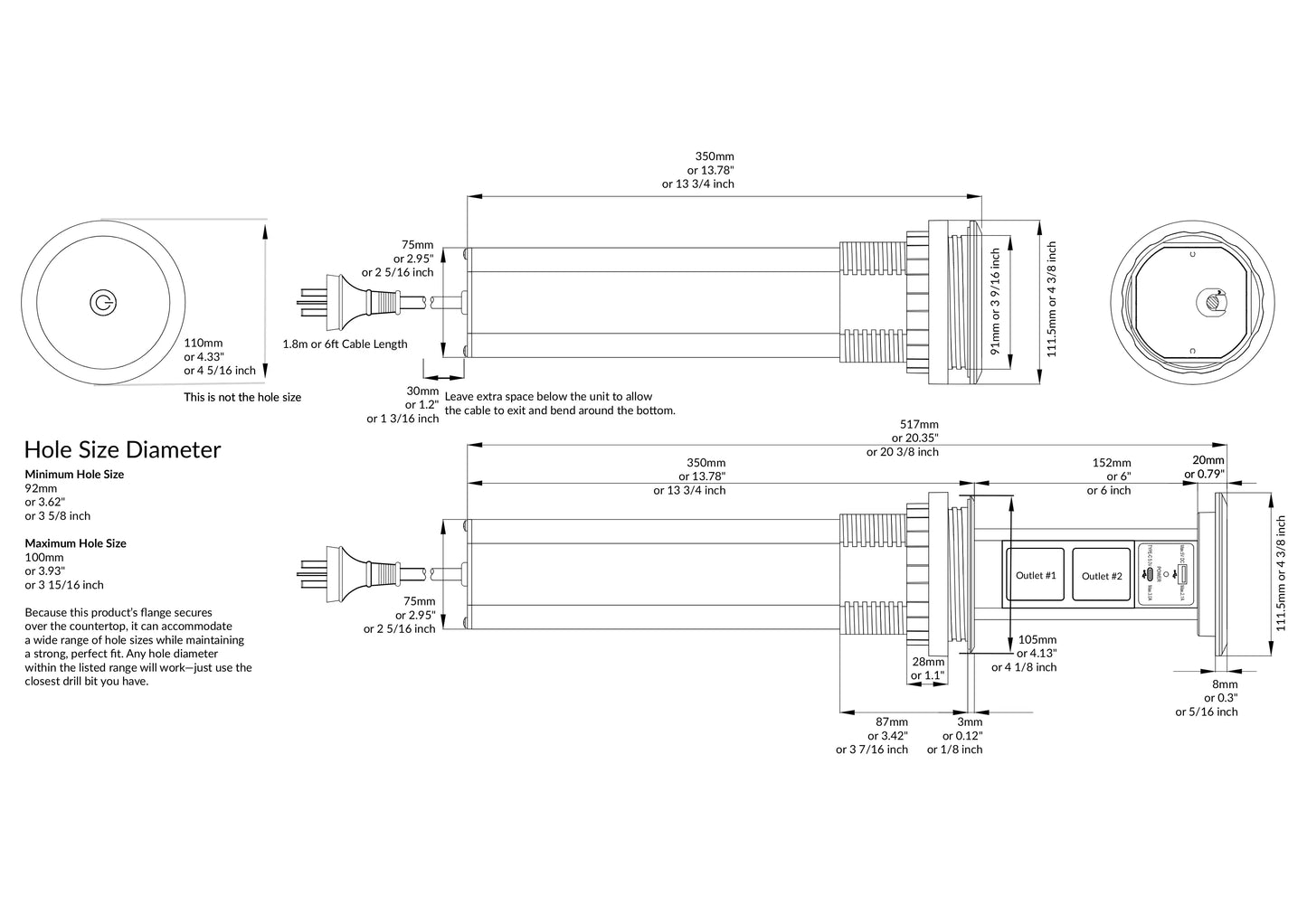

Installation dimensions
Use the dimension diagram to plan the 95mm ±5mm opening, product body and clear space below the benchtop.
Built for everyday use
Constructed with an extruded aluminium body and hardened-glass top.
Simple motorised access
Use the single top control to wake, raise or lower the unit.
Electrical and charging output
10 A, 240 V AC, 50 Hz and 2,400 W maximum total load. USB-A: up to 10 W; USB-C: up to 15 W; wireless charging: up to 10 W.
SAA electrical safety certification
This model is listed on SAA certificate SAA-232006-EA.
Use as specified
For indoor benchtop use. Follow the supplied instructions, keep the raised unit and all connections dry, and do not exceed the product rating.
24-month warranty
Includes a 24-month product warranty with repair or replacement support during the warranty period. View warranty details.
30-day returns
Eligible returns are accepted within 30 days when the product is unused, undamaged and in resalable condition. View the returns policy.
Shipping information
Delivery times vary by location. View Australian delivery options and estimated timeframes.
Technical sheet
Dimensions, ratings and installation information for the V3CS. Download PDF.
Dimensions and details
Everything your installer needs, in one place.
Electrical, charging, installation and support information is consolidated here so it is not repeated throughout the page.
Specifications
Product
Model: V3CS
Finish: Silver hardened-glass top and aluminium shell with black outlet and charger faces
Lift: Motorised
Use: Indoor benchtops
Electrical
Supply: 240V AC, 50Hz
Maximum load: 10A / 2400W total
Power outlets: 2 × AU
Lead: 1.8m with fitted AU plug
Charging
USB-A: up to 10W
USB-C: up to 15W
Wireless: Qi up to 10W
Installation and support
Opening: 95mm ±5mm (90–100mm acceptable range)
Installation: Benchtop cutout and clear cabinet space required
Closed state: Splash-resistant; not waterproof
Warranty: 24 months
Certificate: SAA-232006-EA
Delivery, warranty and support
Technical sheet
Current V3CS dimensions, electrical ratings, charging outputs and installation information.
Shipping
Delivery options and estimated timeframes are shown for Australian orders. Dispatch timing depends on stock and destination.
Warranty, returns and support
Includes a 24-month warranty. Returns are subject to the stated eligibility and policy conditions; product and installation support is available before and after purchase.
Frequently asked questions
How does the V3CS open and close?
Press and hold the top control until it lights, then press it once to raise or retract the unit. The sleep function helps reduce accidental activation.
What opening is required, and can it replace an older pop-up?
Plan a 95mm opening with a ±5mm tolerance (90–100mm acceptable range). It may replace an older unit when the opening, benchtop thickness and under-bench clearance suit the current V3 dimensions; measure the installation rather than relying on the old model name.
Does installation require an electrician?
With a suitable accessible outlet below the benchtop, the fitted AU lead plugs in and no electrical alteration is required. Do not cut or modify the lead; fixed wiring must be assessed by a licensed electrician.
Is the V3CS waterproof?
No. When fully closed, the lid closes over the opening and helps resist incidental surface splashes. It is not waterproof. Keep it dry, wipe up liquid promptly, and do not open or use it while wet.
Can the supplied lead be cut for hardwiring?
Do not cut or modify the fitted lead. If the installation requires electrical alteration, consult a licensed electrician.
Does wireless charging work with iPhone and Android?
Yes. Compatible Qi-enabled Apple, Samsung and other Android phones can charge on the top. Centre the phone and remove a thick case if charging is inconsistent.
Why can I hear a faint hum while wireless charging?
The wireless charger contains a cooling fan. A faint hum can be normal while charging, and the fan may continue briefly after the phone is removed. Seek support if it becomes unusually loud or charging is unreliable.
What happens if the lift is obstructed?
The protection system pauses or briefly reverses the lift when it meets an obstruction. Clear the obstruction, then use the top control again.
What warranty is included?
A 24-month warranty is included. Modern Power Solutions provides local product support and can assist with eligible warranty claims.
