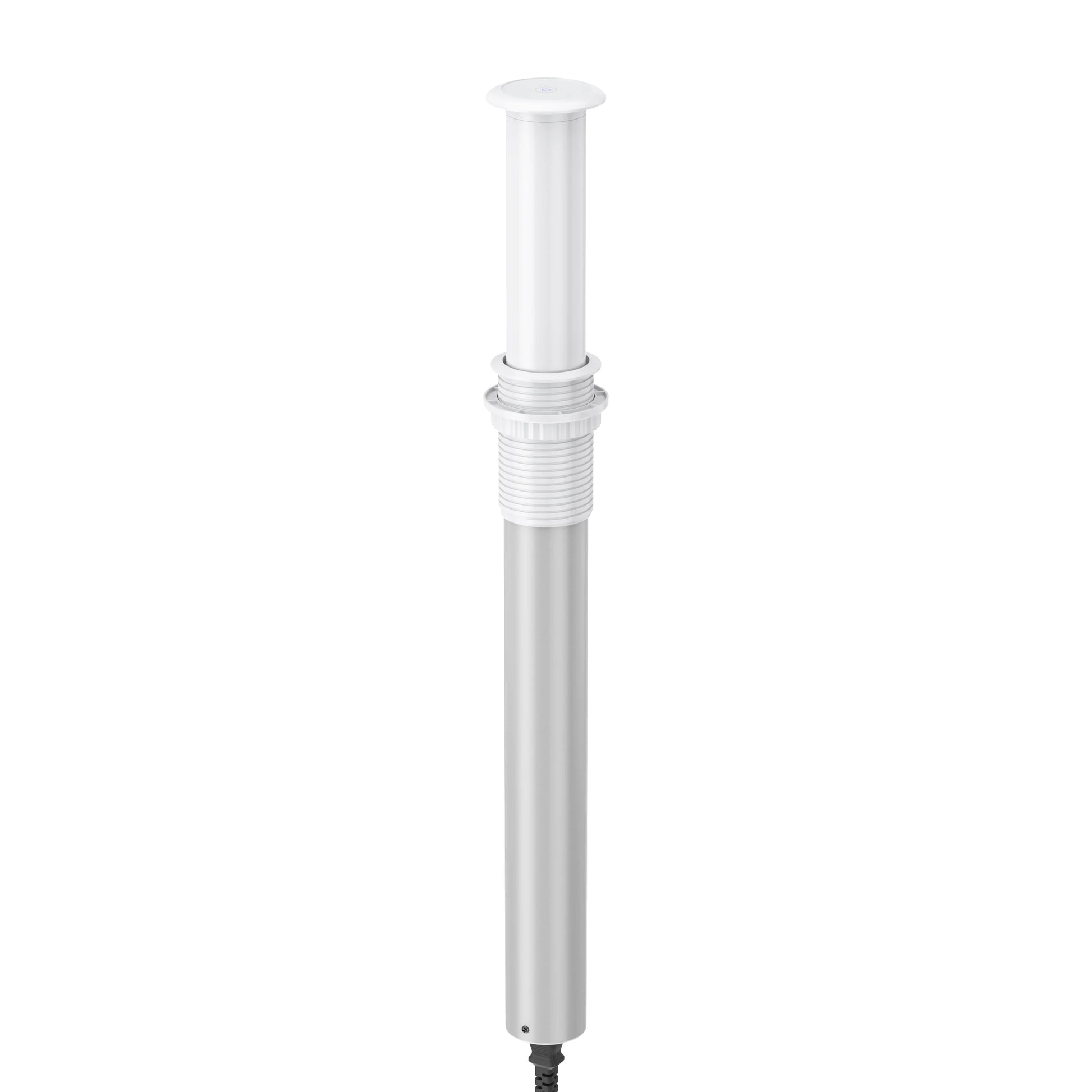

Motorised lift
Use the top control to raise or retract the outlet.
Product guide

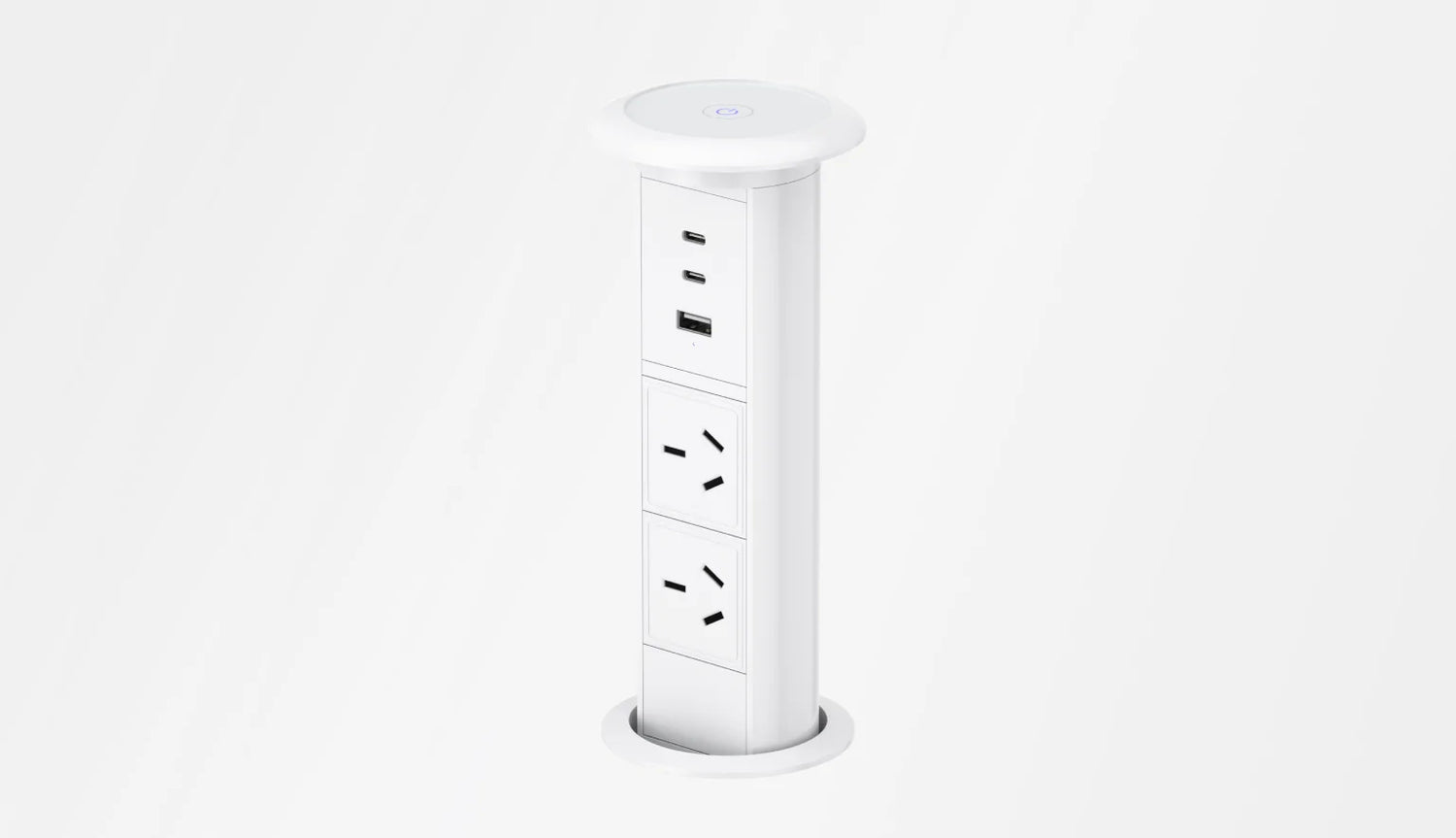

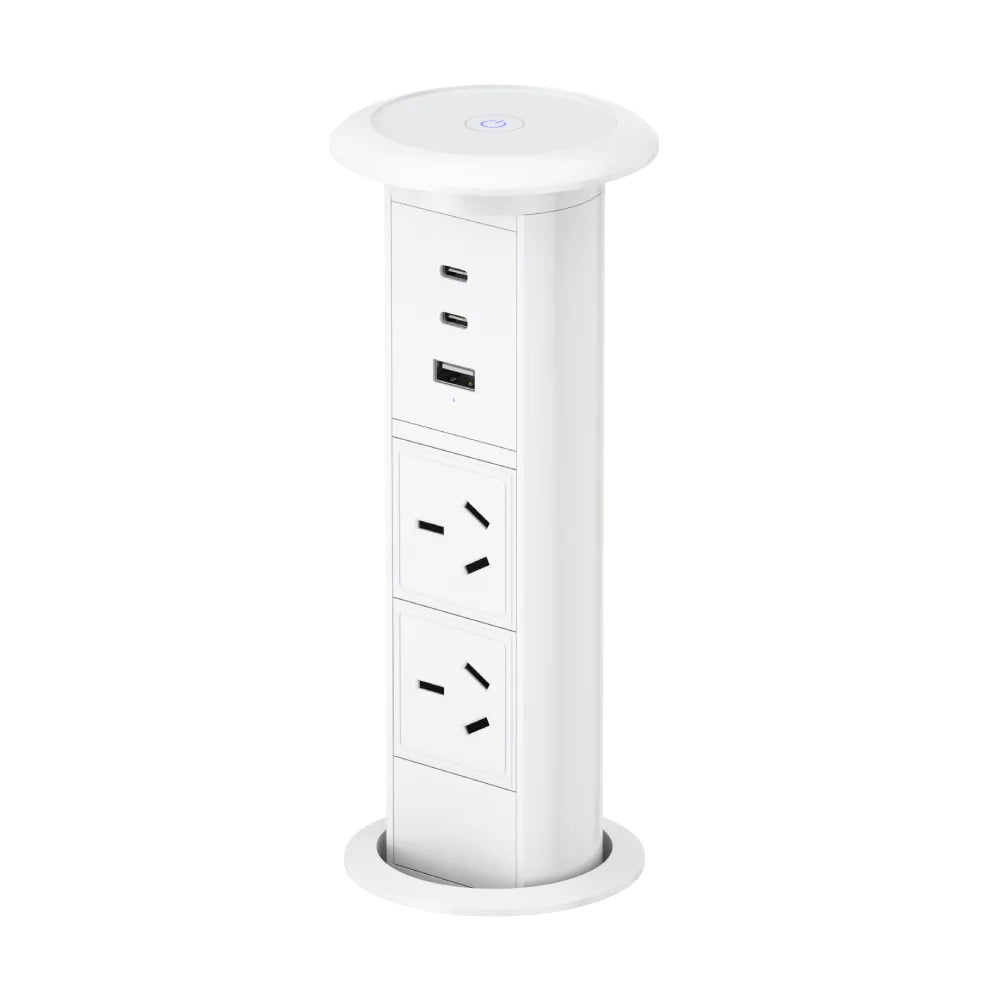

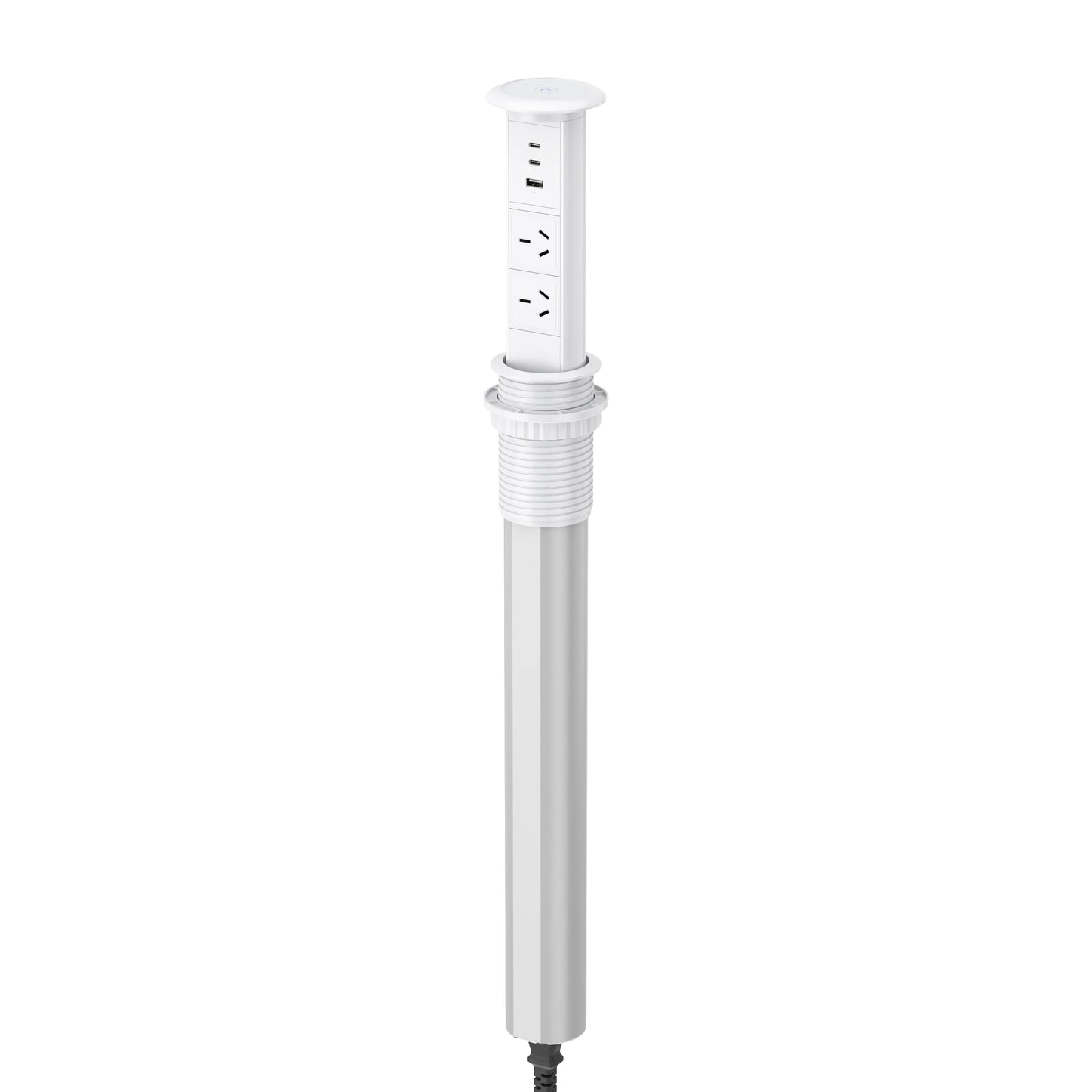

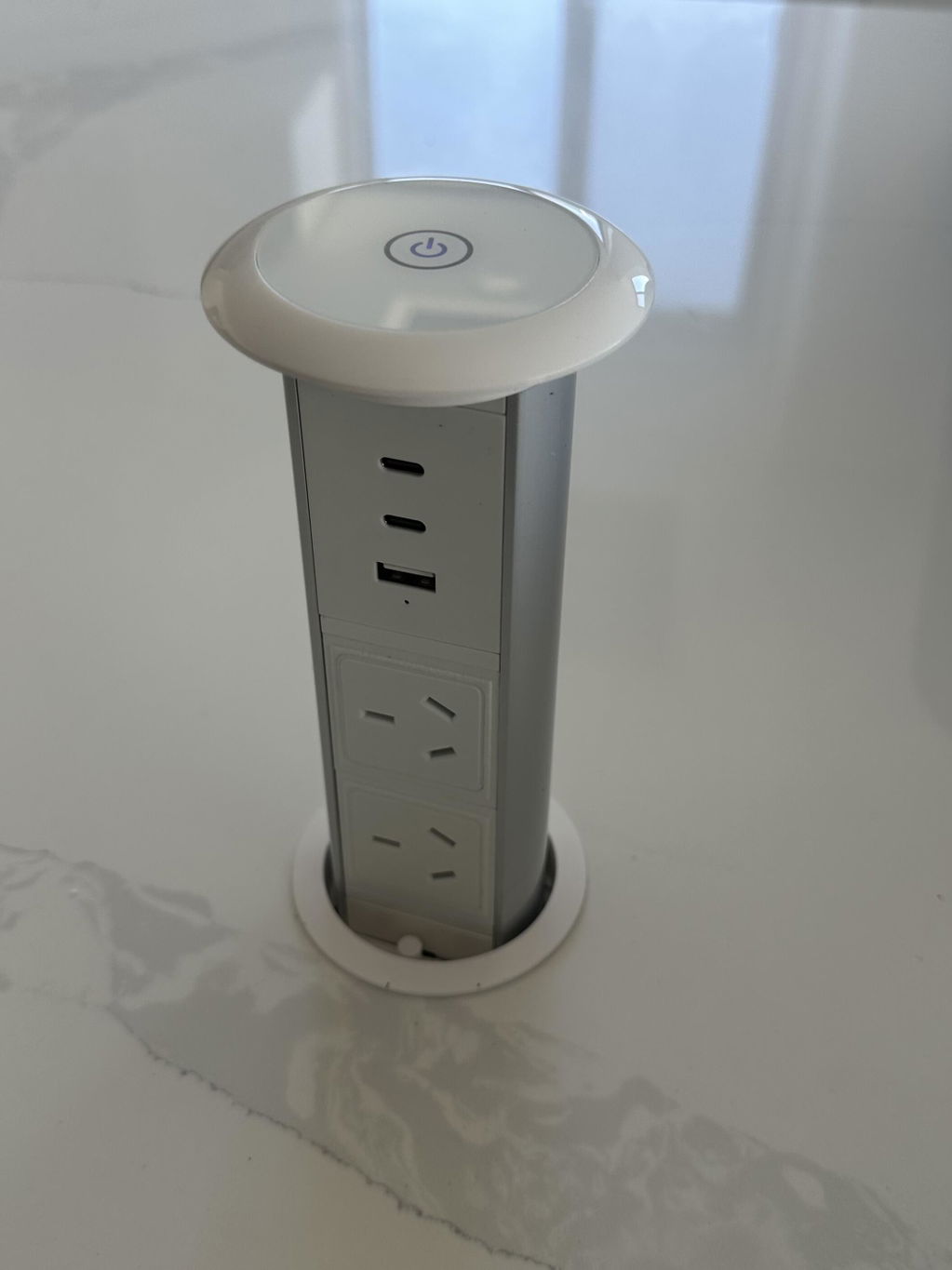

Motorised pop-up outlet with two AU power outlets, one USB-A port, two USB-C ports and 10W wireless charging, finished with a white top and outlets with a silver body.
Features
Key functions and connections at a glance.
Power and USB
Two AU power outlets, one USB-A port and two USB-C ports.
Wireless charging
Charge a compatible device on the top surface at up to 10W.

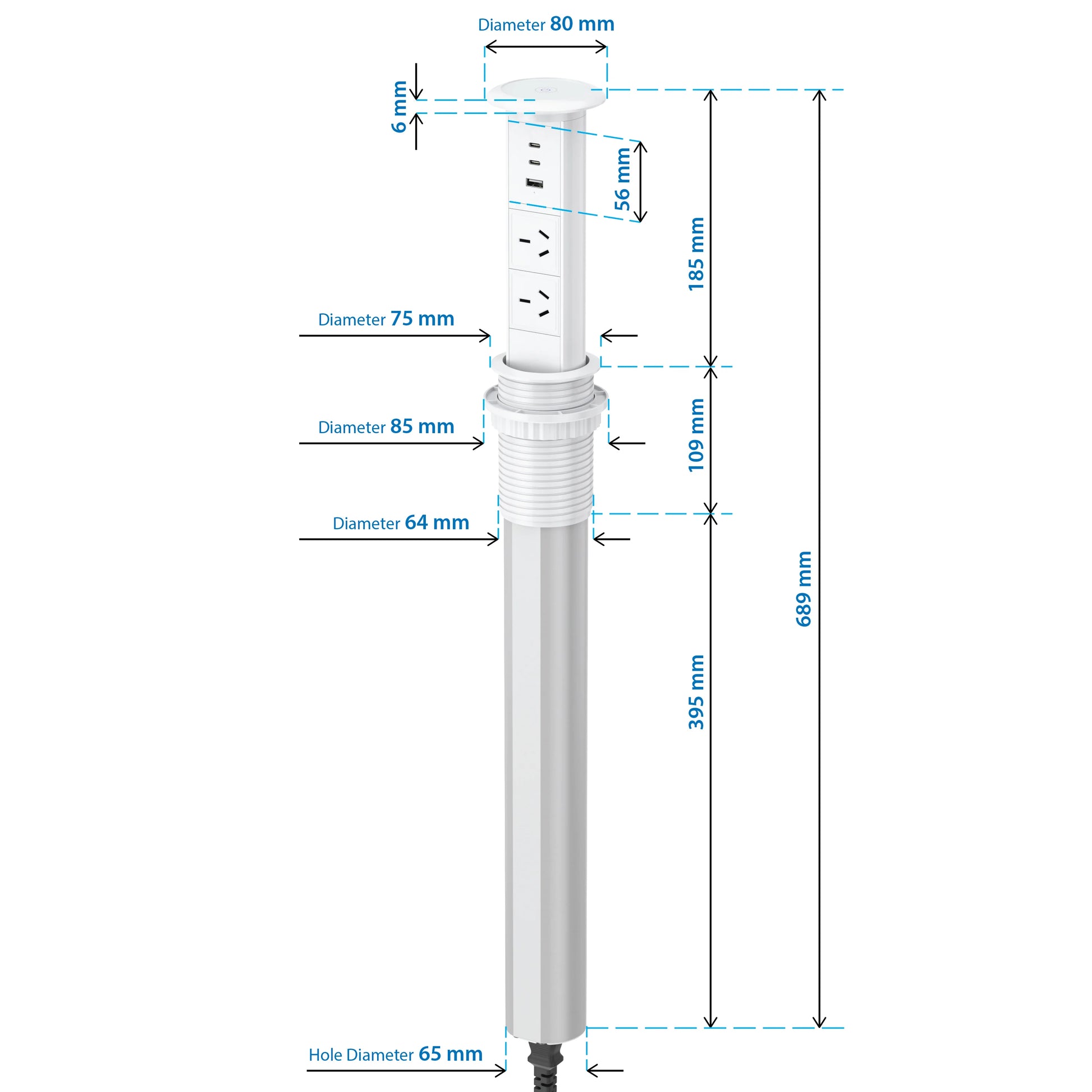

Installation planning
Confirm the opening, below-surface space and power connection before cutting the benchtop.
65mm opening
Plan a 65mm opening with a +/- 5mm tolerance.

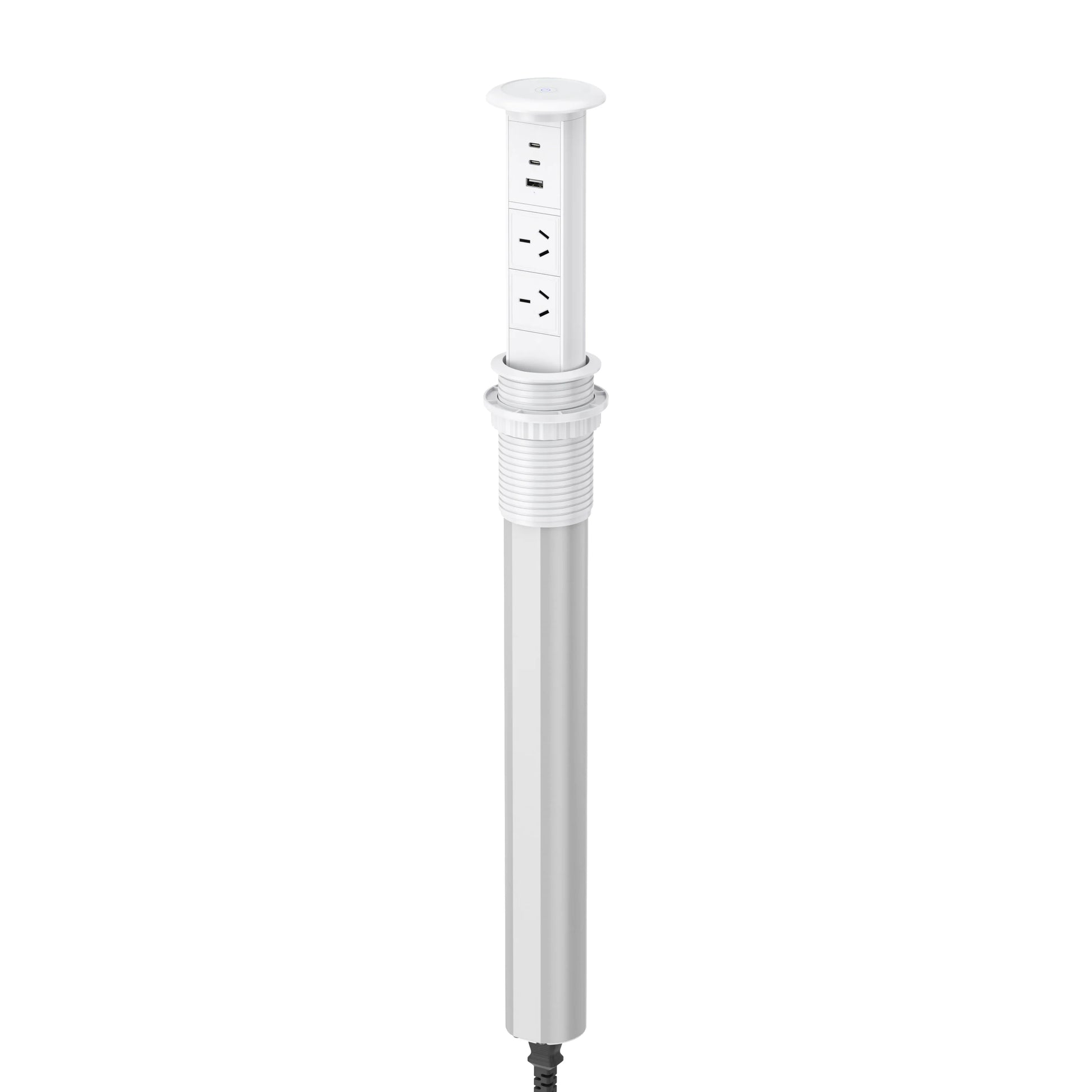

560mm below-surface space
Allow 560mm below the top surface for the unit, with additional room for the lead and plug.

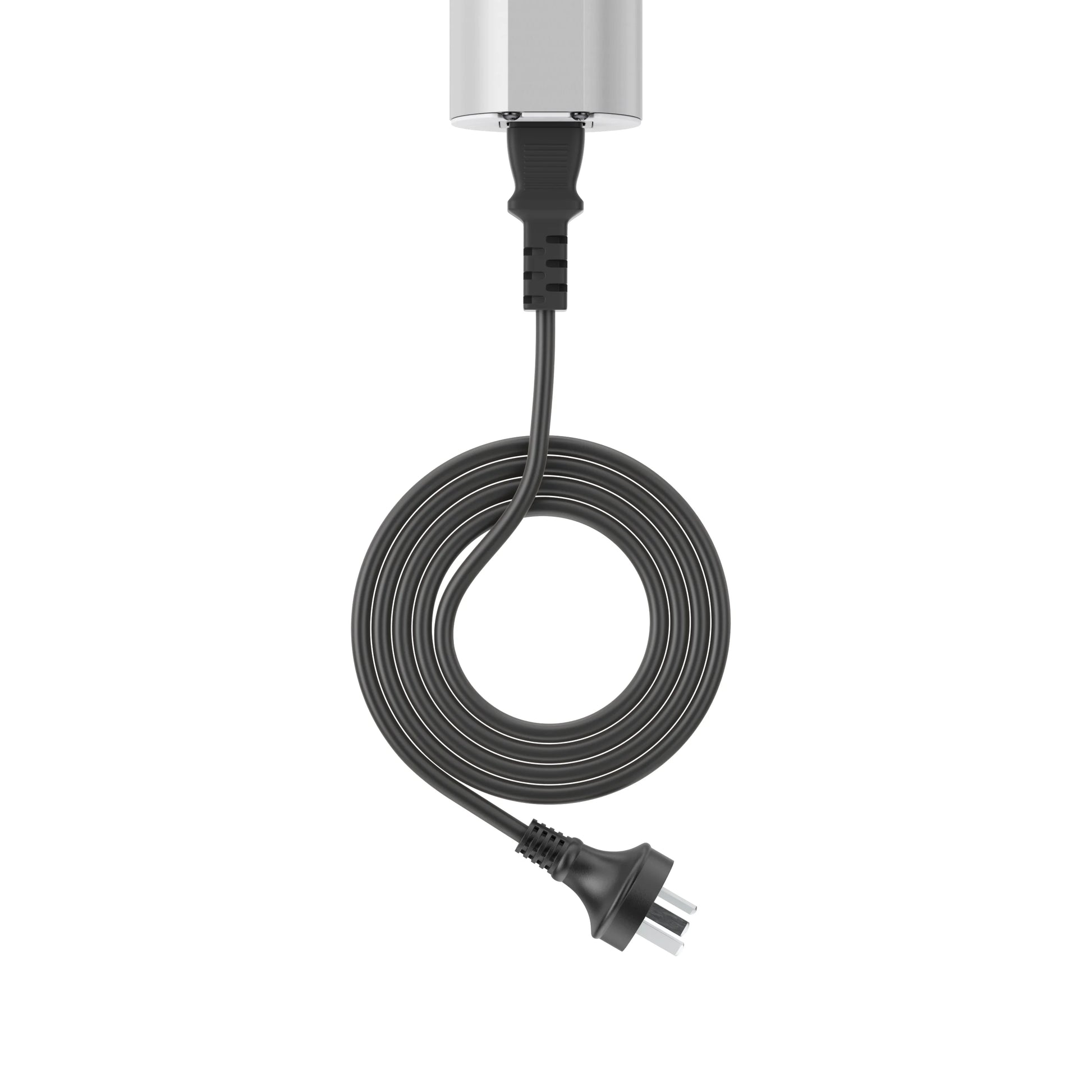

Fitted AU plug
Supplied with a 1.8m lead and fitted AU plug for connection below the benchtop.
Important: IP20 and indoor dry-location use only. Keep liquids away from exposed connections and do not exceed 10A / 2400W total.
Specifications
Use these details with the supplied instructions and the rating label on the product.
Electrical
240V AC, 50Hz; 10A and 2400W total maximum. IP20.
Charging
Either USB-C port: up to 30W. USB-A: up to 18W. Multiple-port output: 5V / 3A shared. Qi: up to 10W.
Model and finish
Model V3LW; white top and outlets with a silver body; 24-month warranty.
Downloads and support
Review the current technical sheet before installation.
V3LW technical sheet
Current dimensions, ratings and installation information for V3LW.
Download PDF (opens in a new tab)
Product and installation support
Installation uses a 65mm opening with a +/- 5mm tolerance, 560mm below-surface space and a fitted 1.8m AU lead and plug.
Contact support (opens in a new tab)
Frequently asked questions
Which charging ports are included?
One USB-A port, two USB-C ports and a 10W Qi wireless charging surface.
What opening is required?
Plan a 65mm opening with a +/- 5mm tolerance.
Is the V3LW waterproof?
No. It is IP20 and intended for dry indoor locations. Keep all exposed connections dry.
It’s the finer details that set the best homes apart

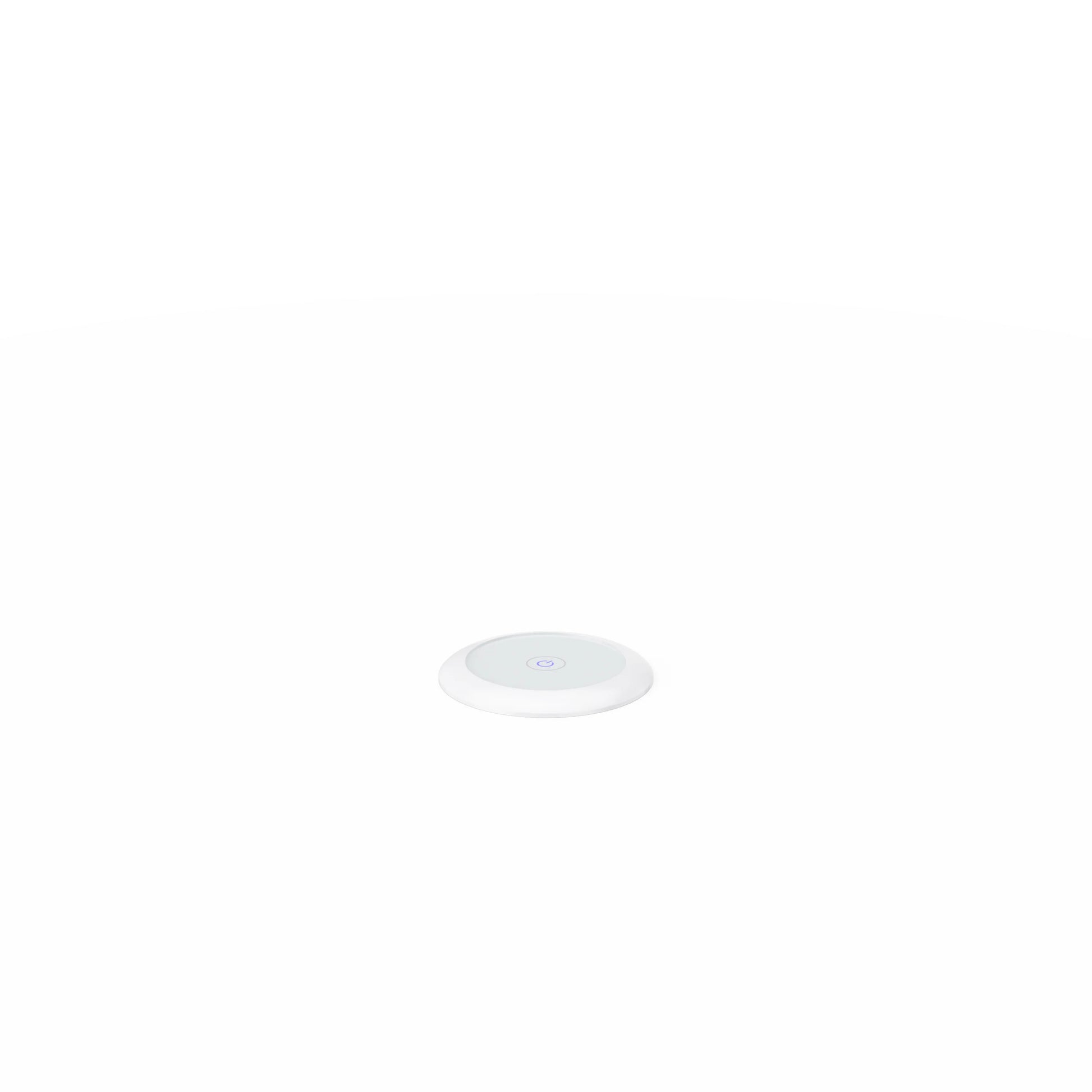

Power when you need it, hidden when you don't. Choose a pop up power socket.

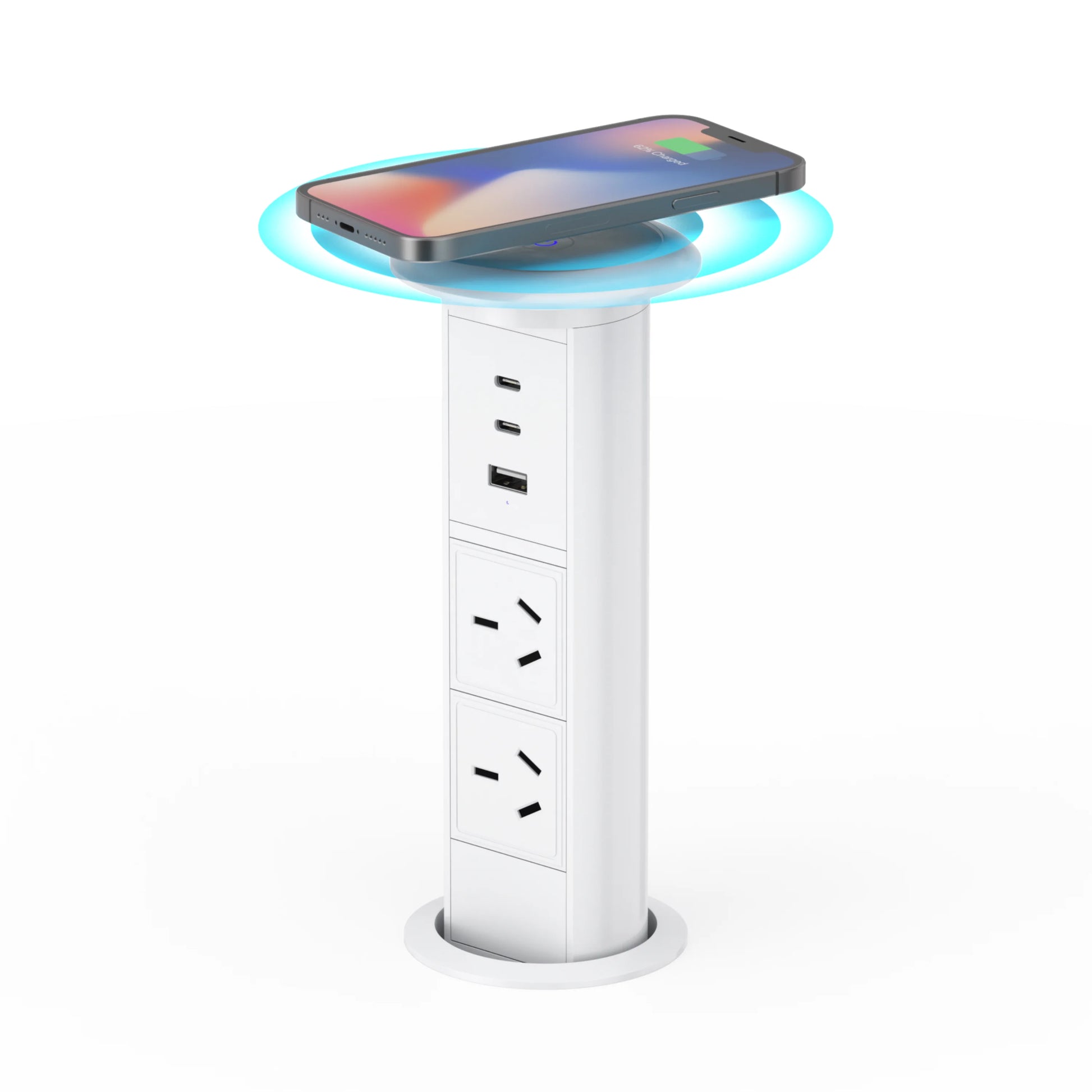

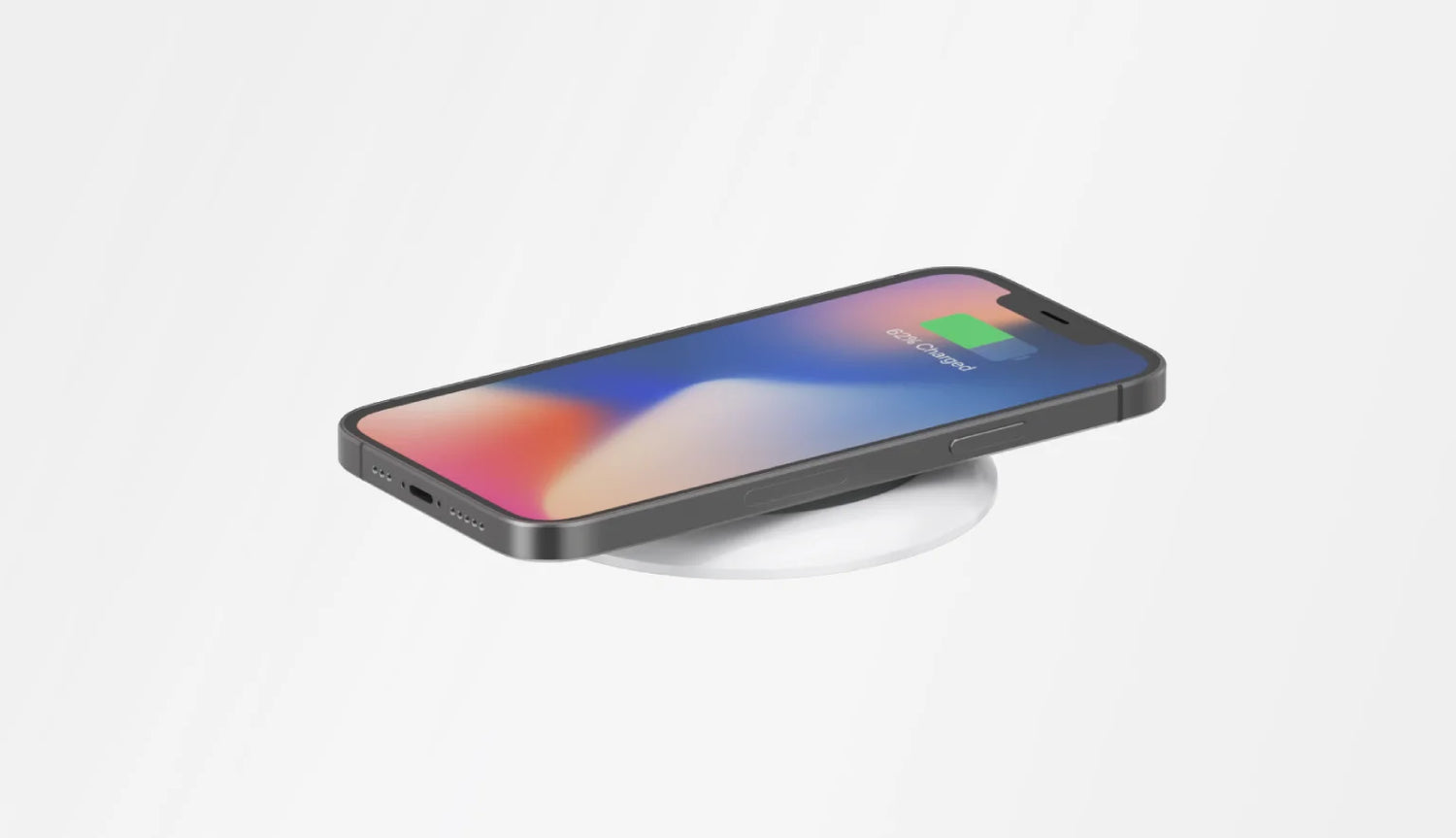

Qi wireless charging lid
Place your mobile device on the top for charging. 10W maximum output.

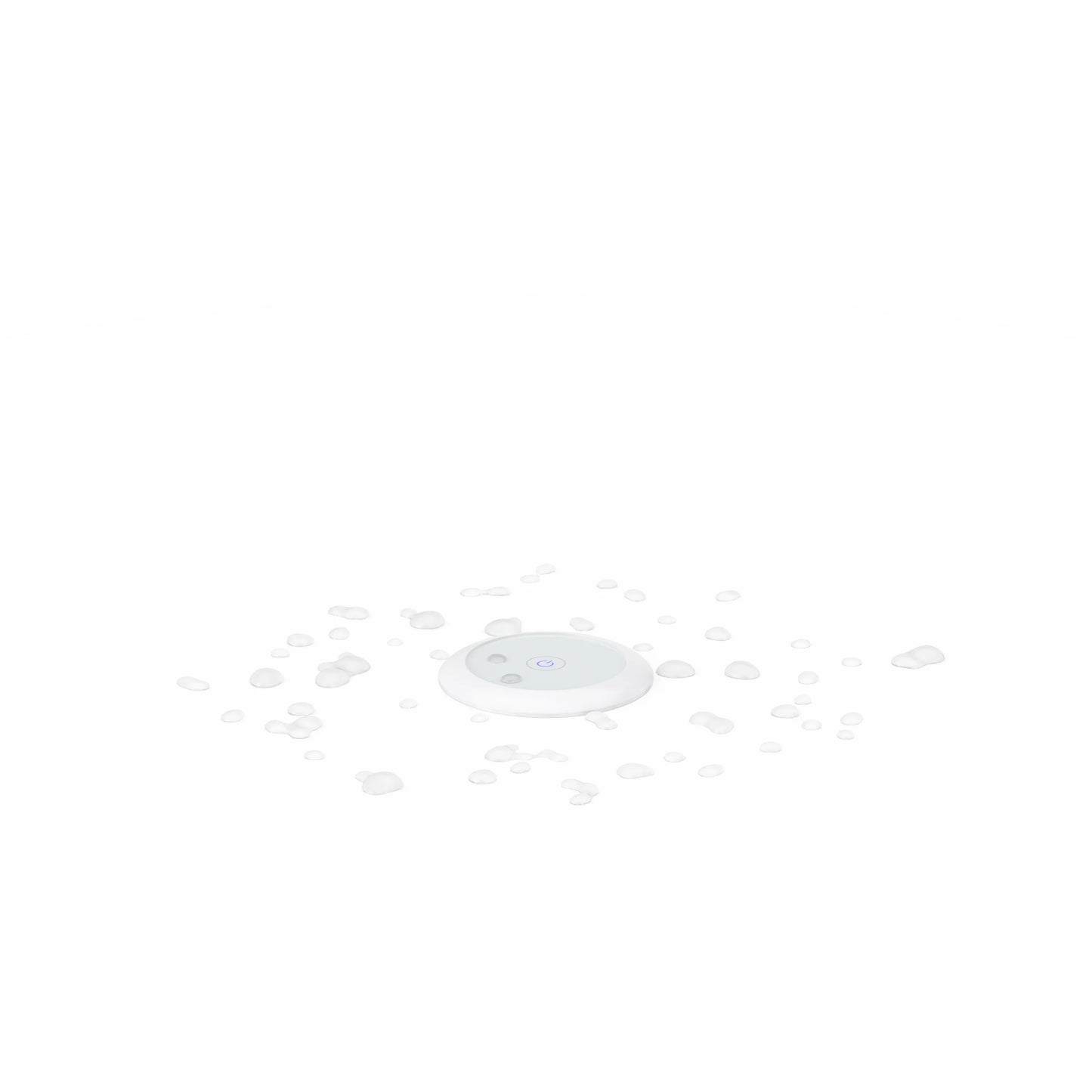

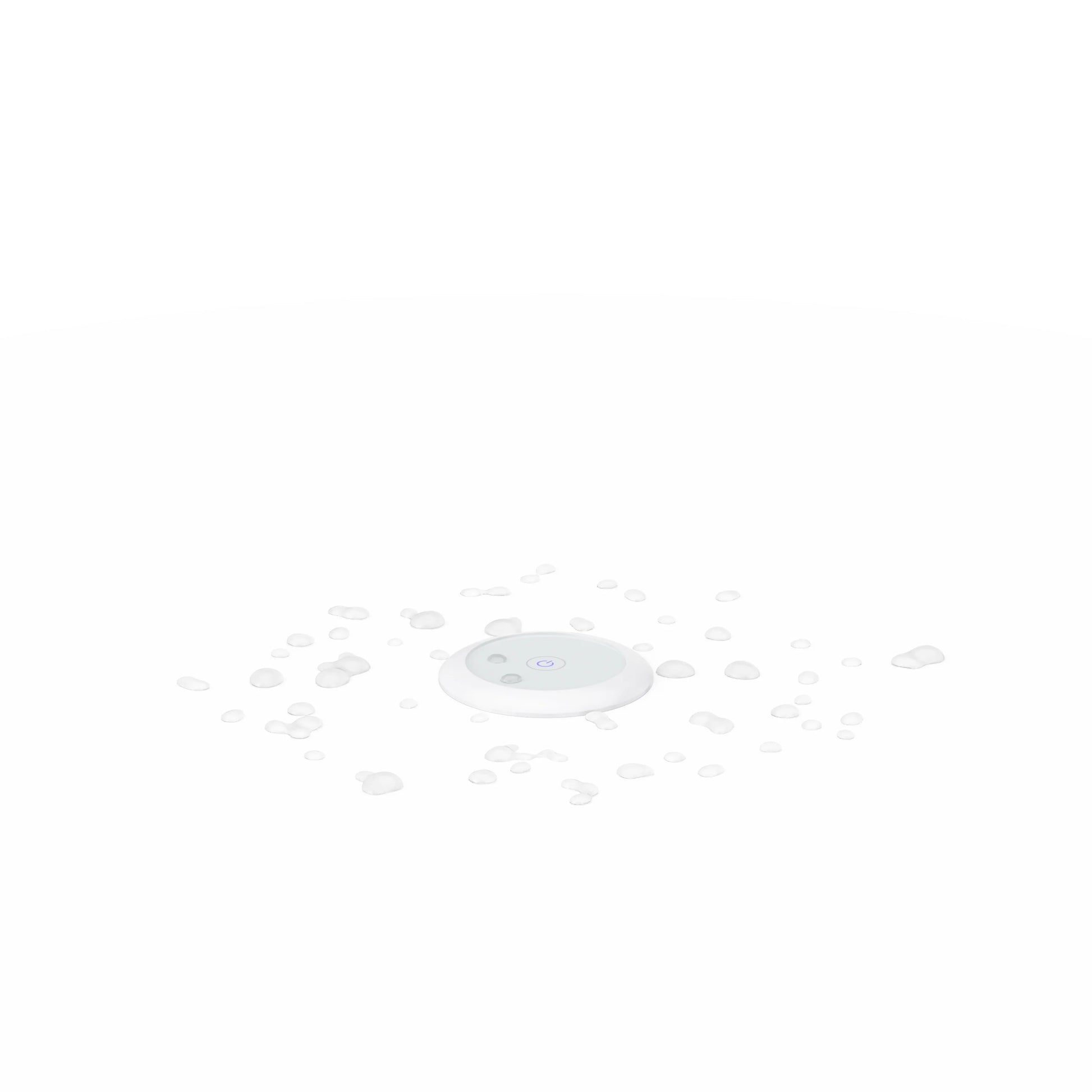

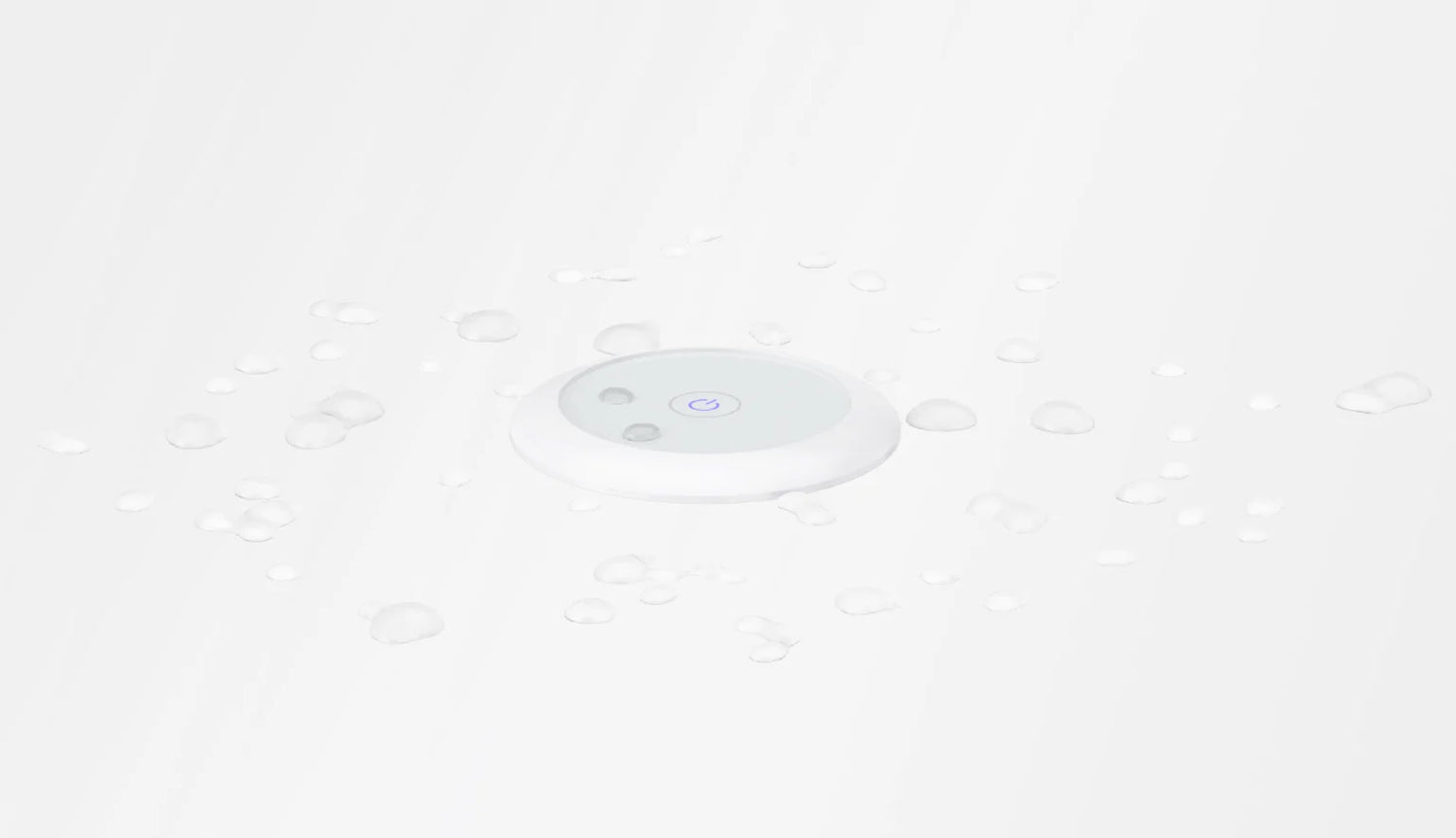

Closed-lid spill resistance
The overlapping lid helps resist accidental splashes only when fully closed. Keep the unit and connections dry when raised.

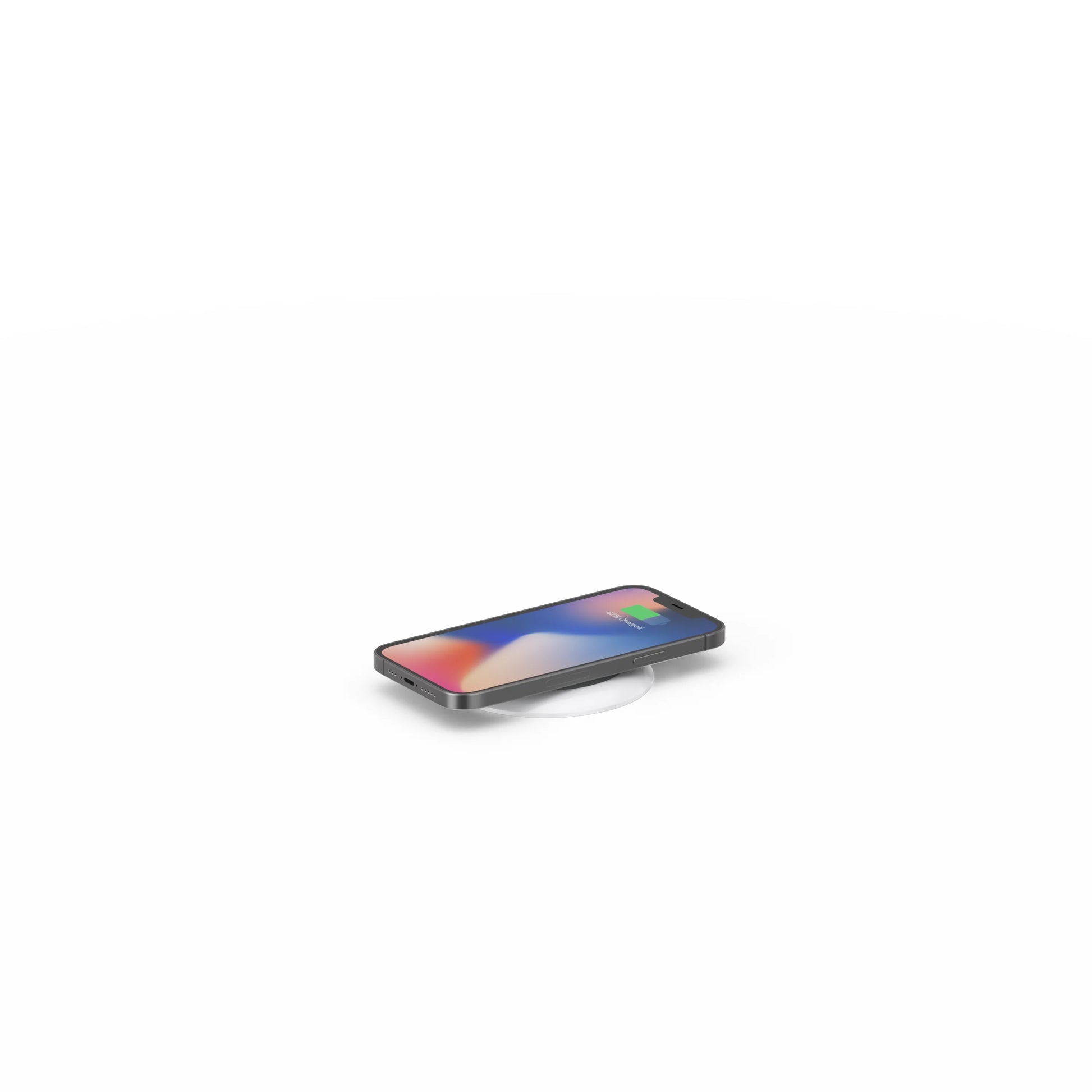

Qi wireless charging
Charge a compatible Qi-enabled device on the top surface.
Fast installation
Easy install into a 65mm hole.

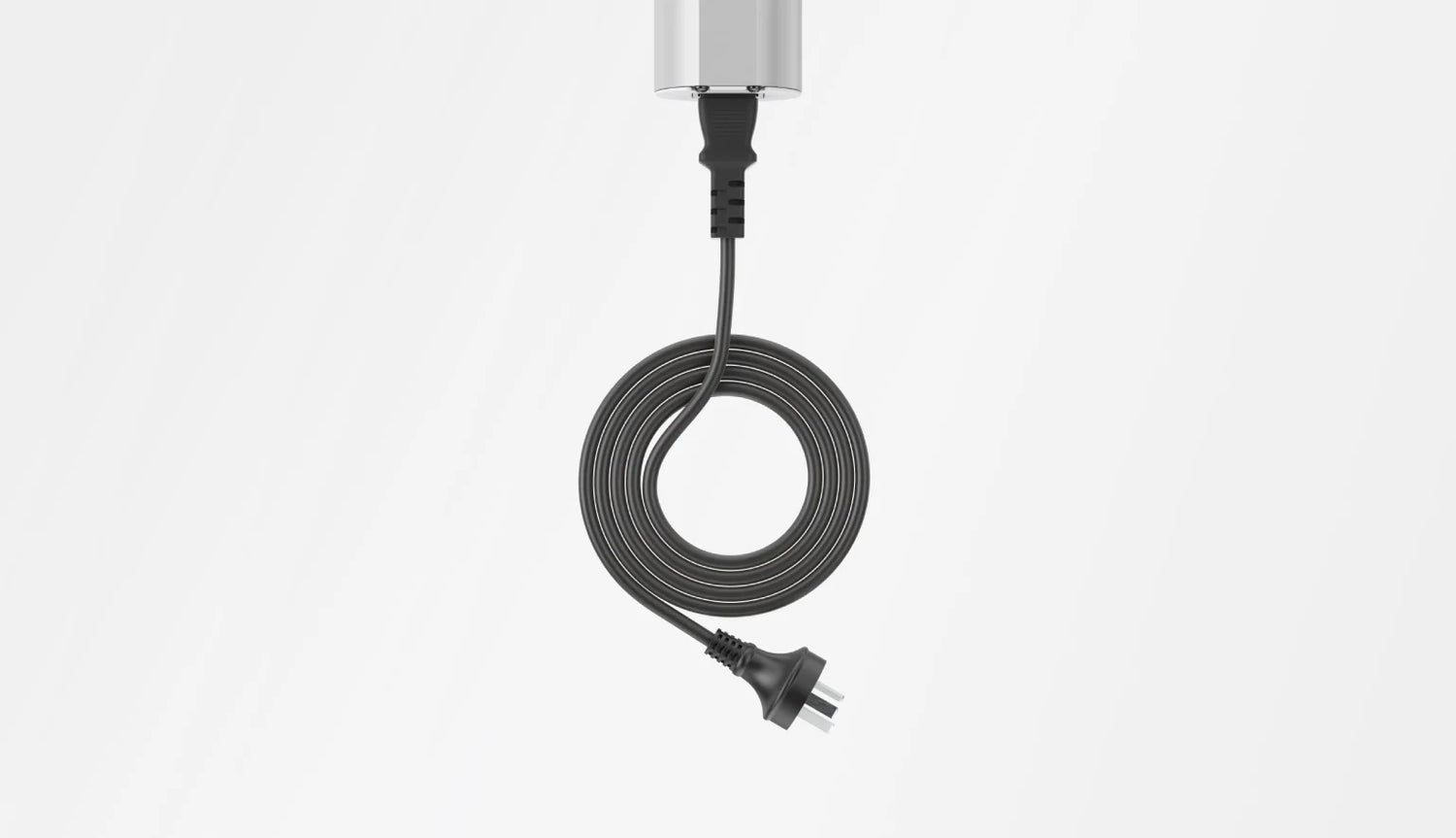

Fitted AU plug
Supplied with a 1.8m lead and fitted AU plug, so hardwiring is not normally required. Use a licensed electrician for any electrical alteration.

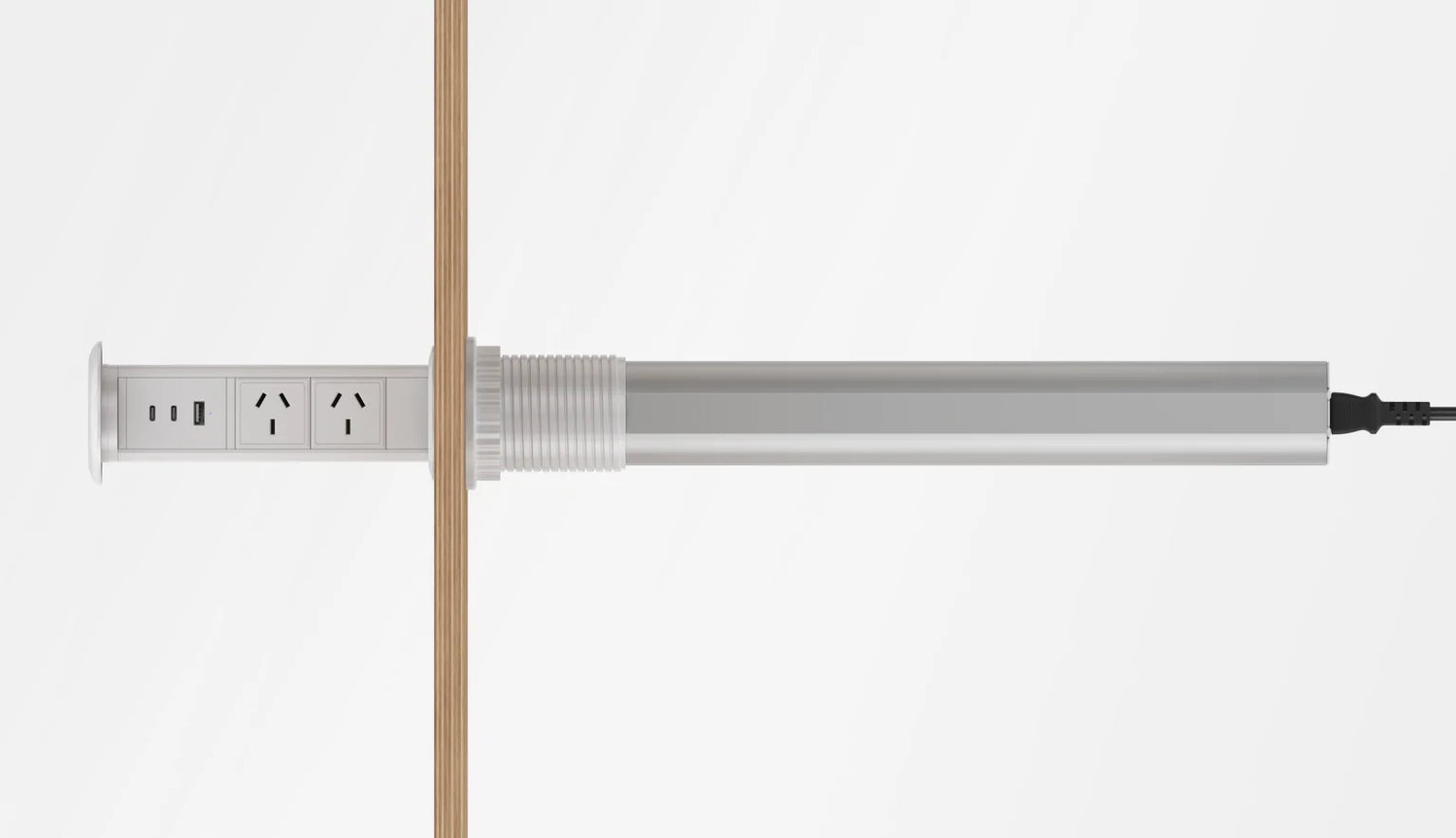

Installation orientation
Planning a non-upright installation? Confirm the permitted orientation in the current instructions and check the site conditions before installation.
Data Sheet
Download the data sheet for the V3LW. Downloading may take up to 30 seconds, please be patient.
Form follows function

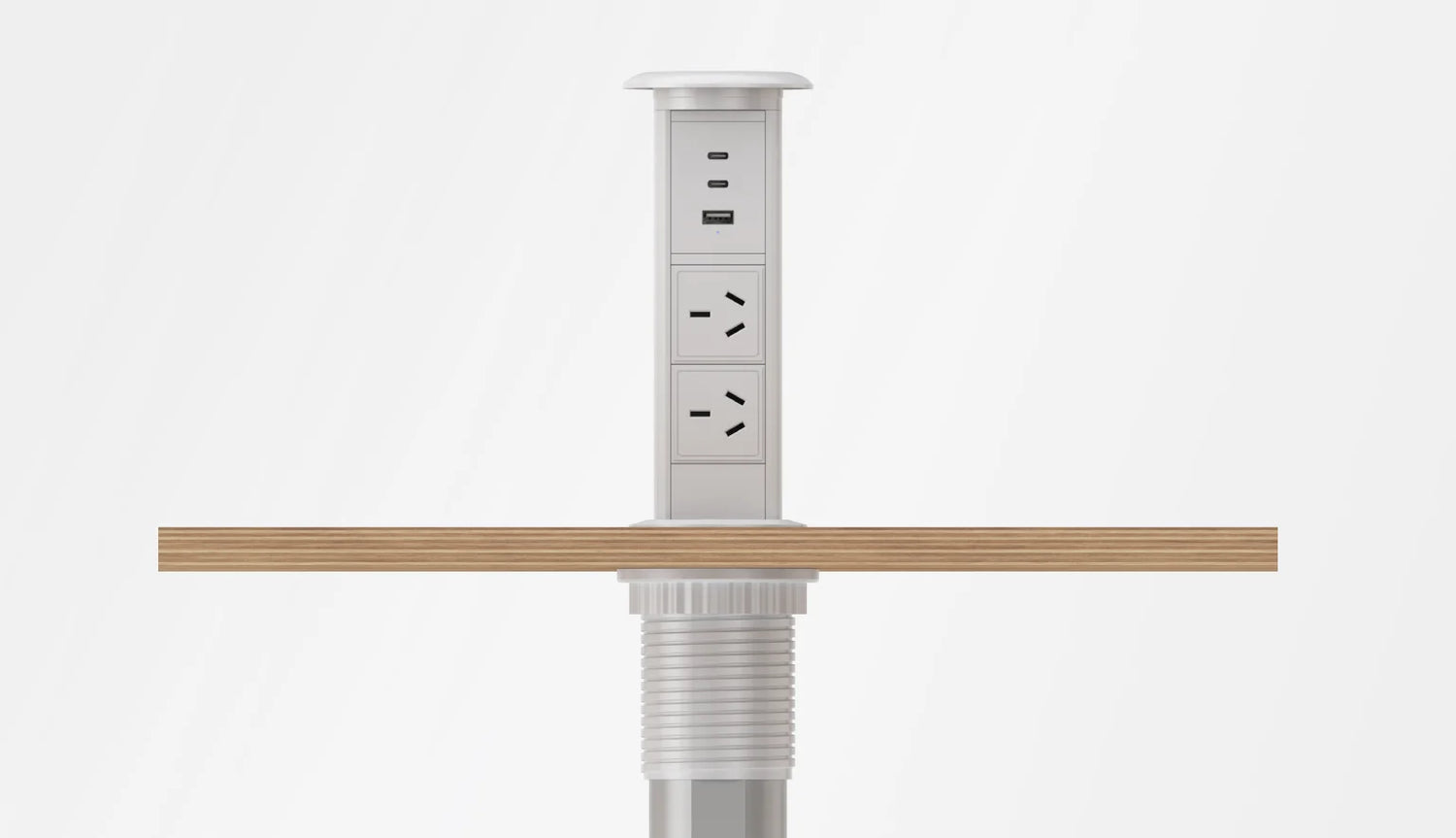

Two power outlets, one USB-A charging port, two USB-C charging ports (with 30W fast charging) and a Qi wireless charging top.
Luxury lives in the finer details

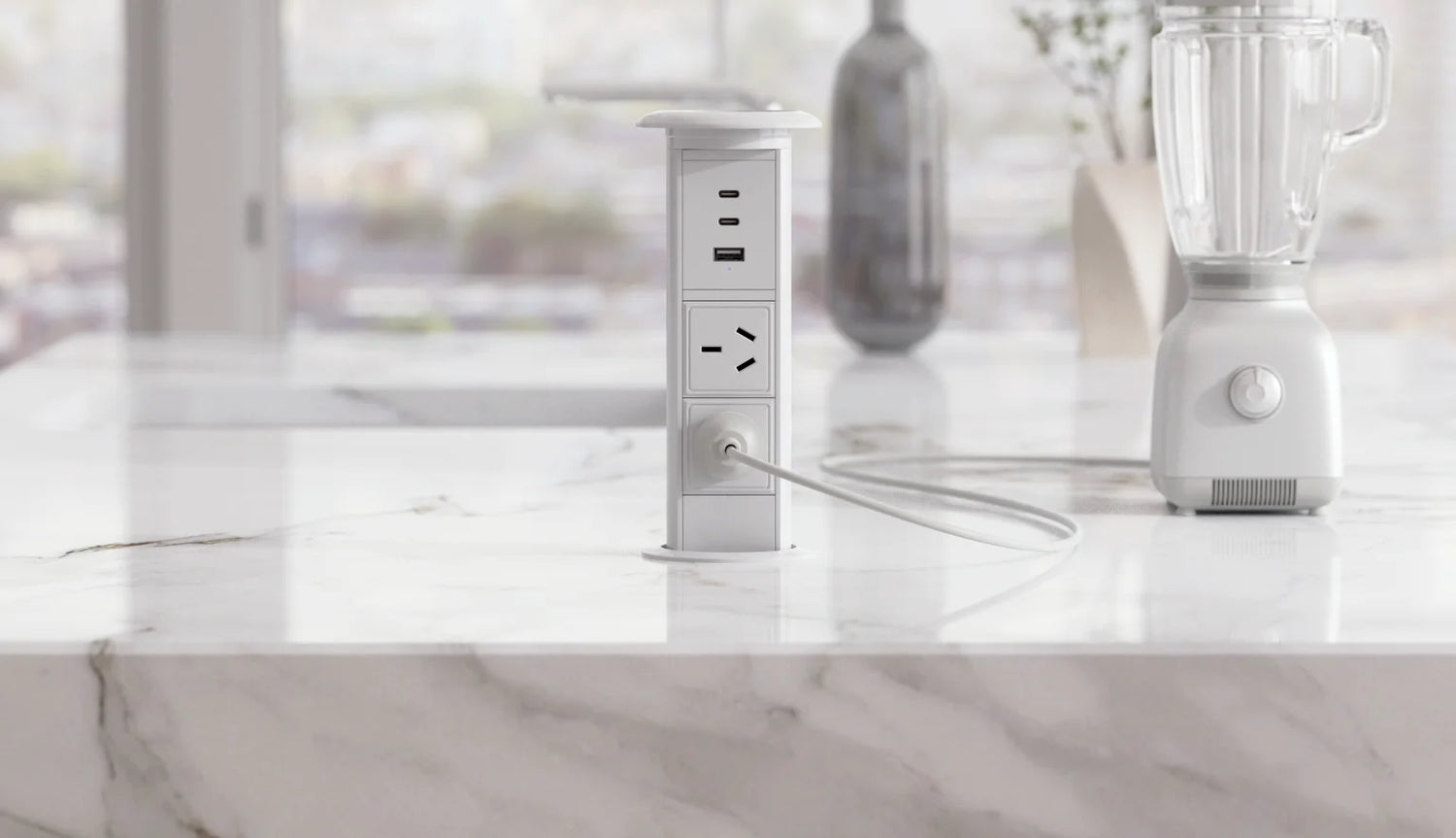

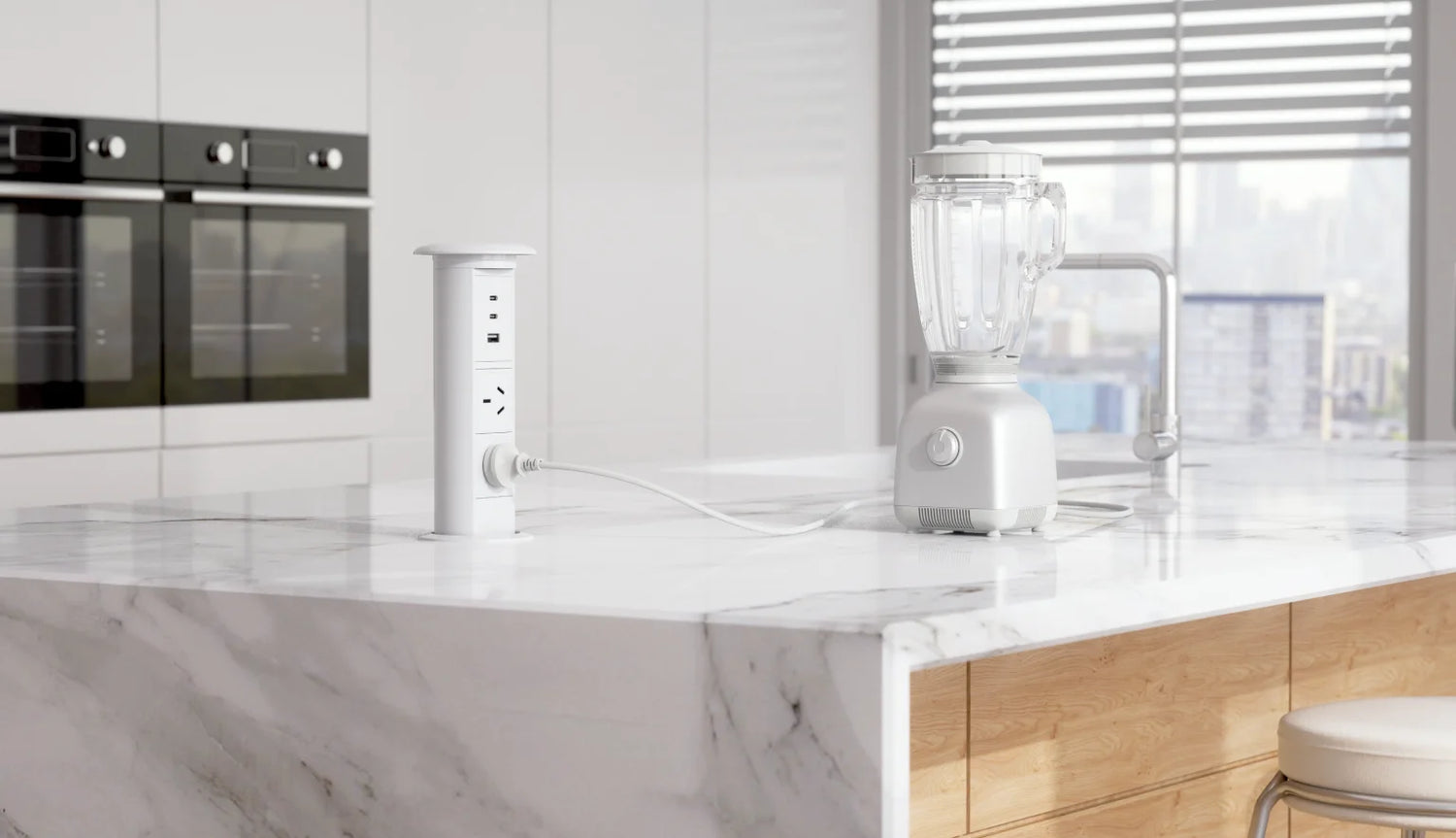

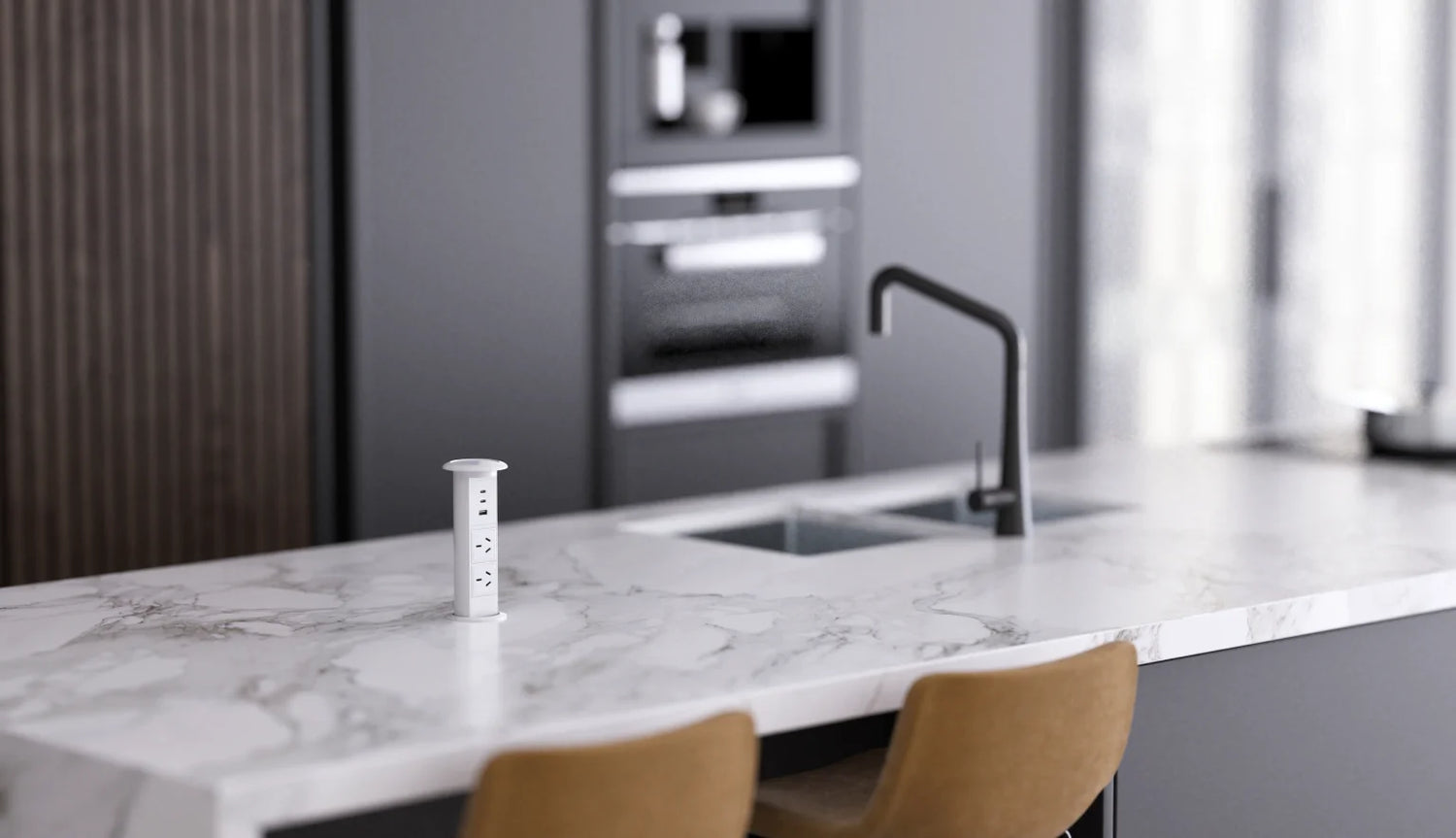

Designed for the home, kitchen and office
Installation orientation
Planning a non-upright installation? Confirm the permitted orientation in the current instructions and check the site conditions before installation.
Maximum output
10A, 240V AC, 50Hz and 2,400W maximum total load. USB-A: up to 18W; USB-C: up to 30W; wireless charging: up to 10W.
The whole is greater than the sum of its parts
The V3L range has it all. Always be ready to power any device when you need.
Use as specified
For indoor benchtop use. Follow the supplied instructions, keep connections dry and do not exceed the product rating.
