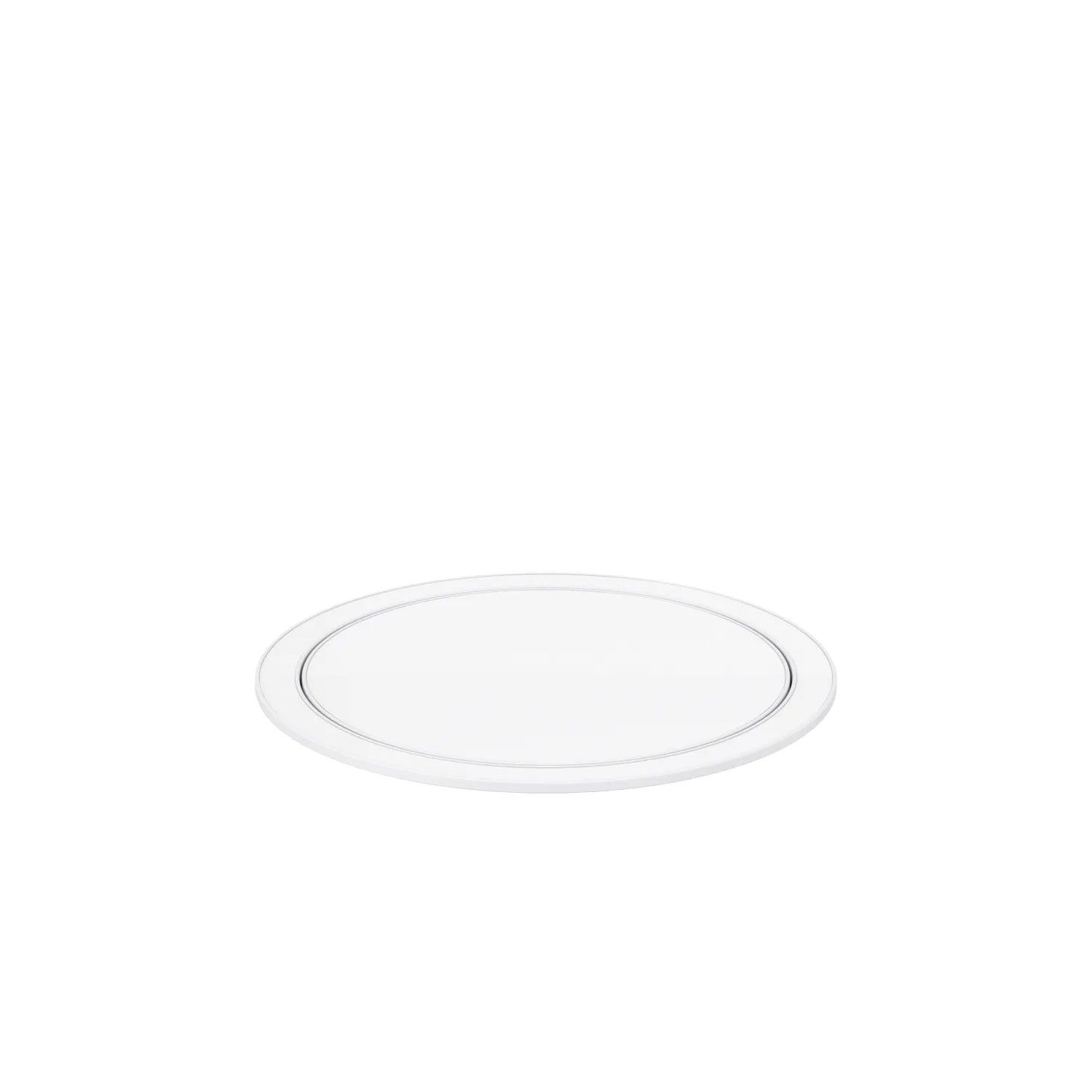

Gas-strut lift
Press the top to release the gas-strut mechanism and raise the connections.
V14JW at a glance
Four-sided access, organised around installation and connection planning.

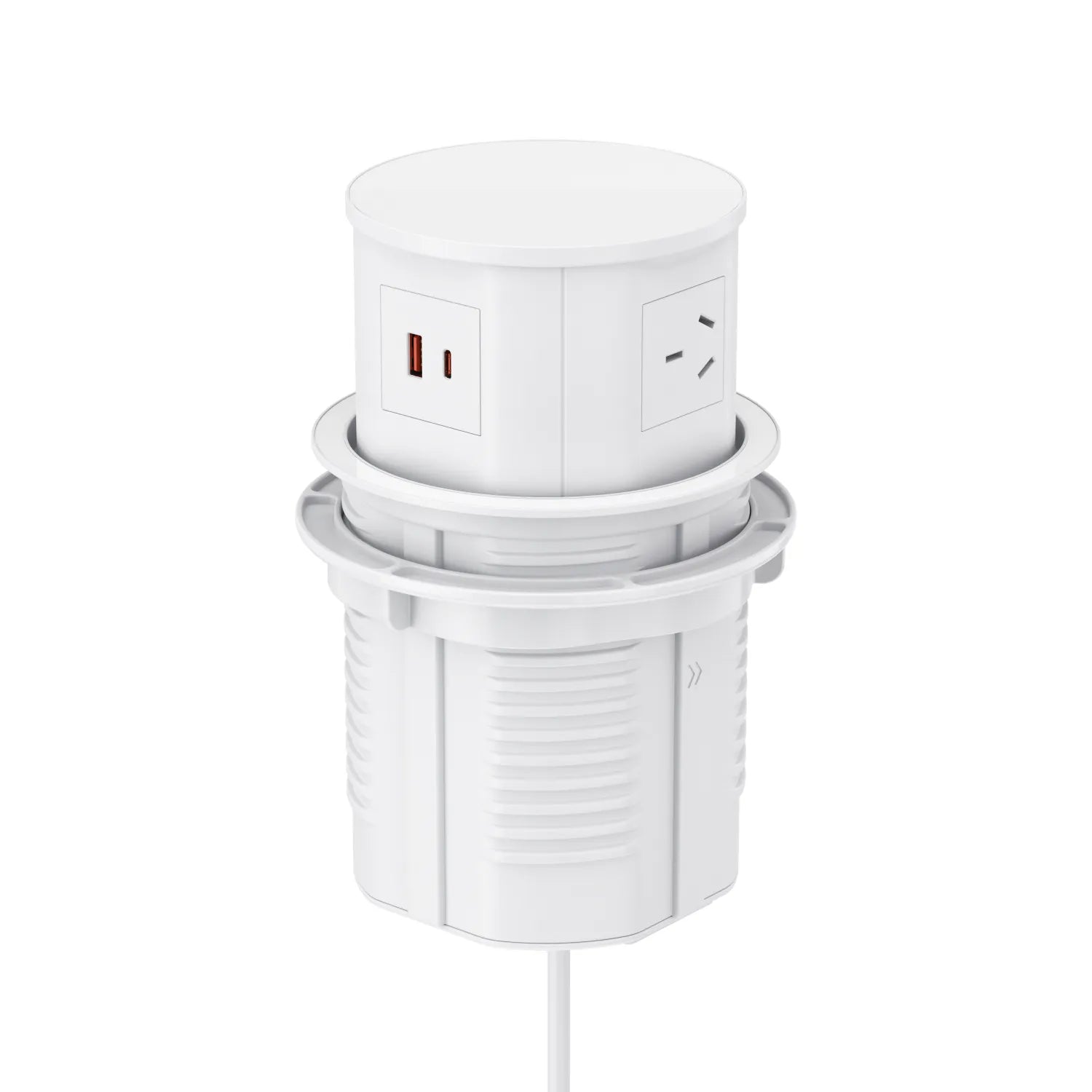

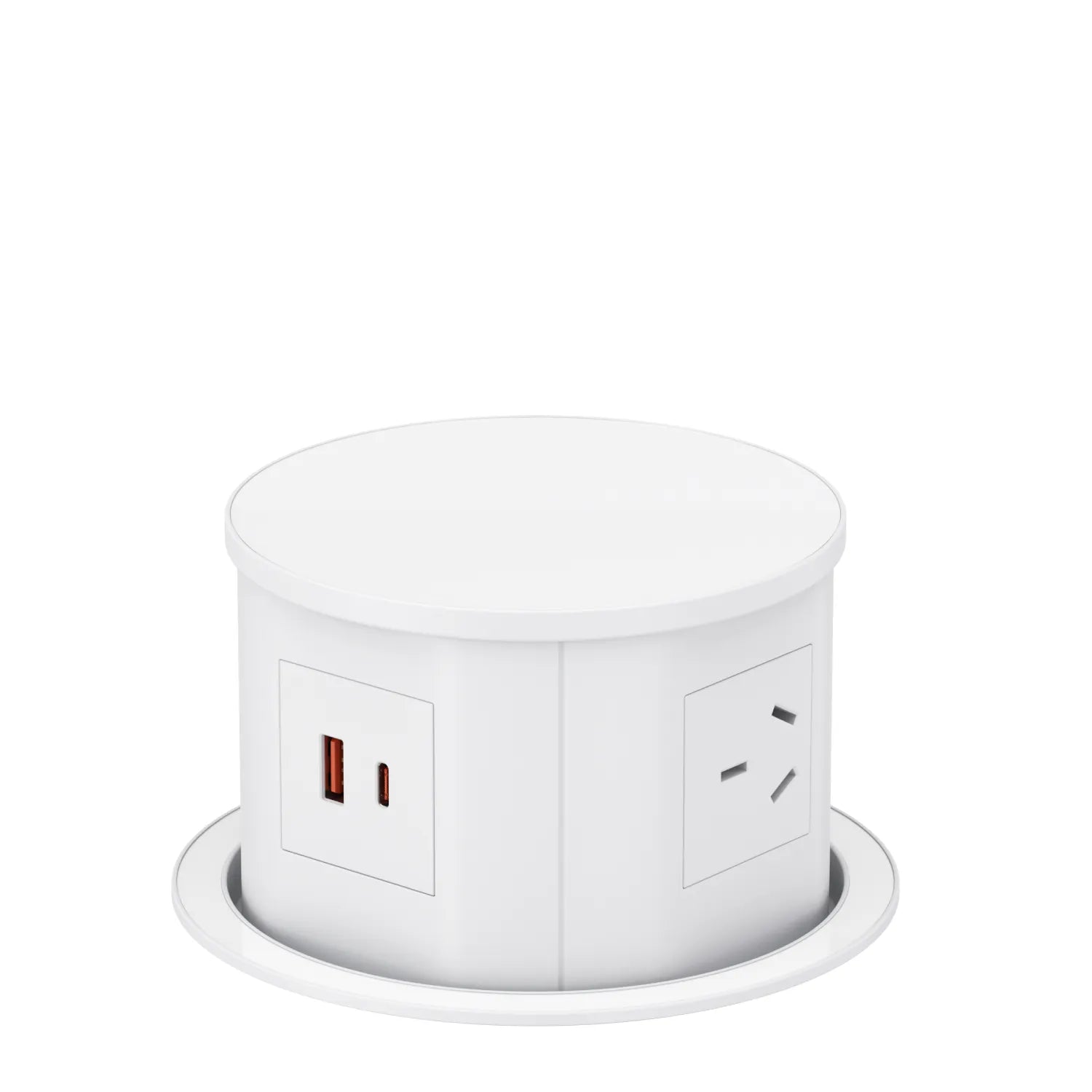

Gas-strut pop-up outlet with three raised-body AU outlets, one underside AU outlet, USB-A, USB-C and 15W wireless charging, finished with a white top, body and outlets.
Features

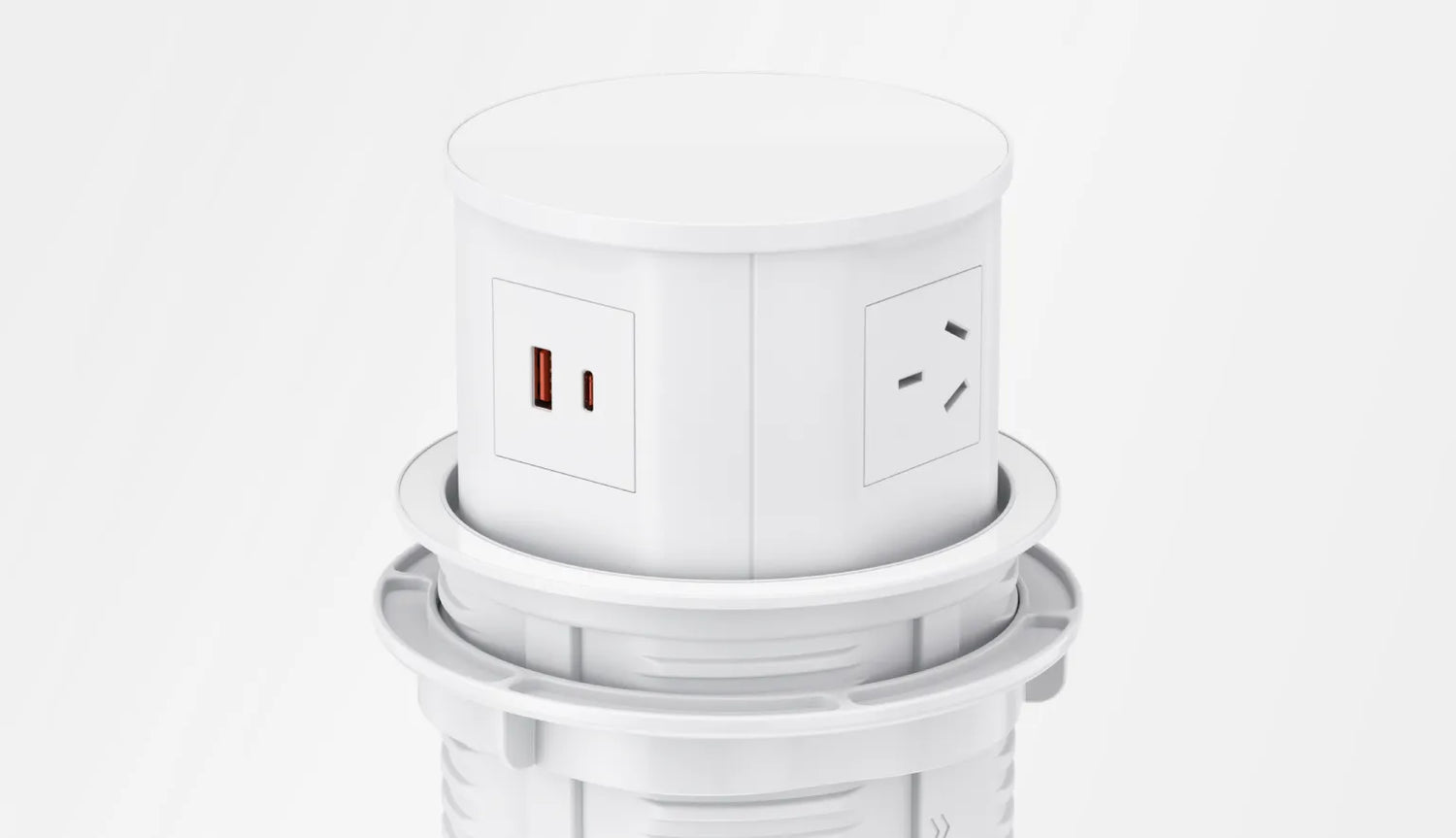

Four AU outlets plus USB
Three AU outlets are positioned around the raised body, with a fourth AU outlet on the underside. One USB-A port and one USB-C port are also included.

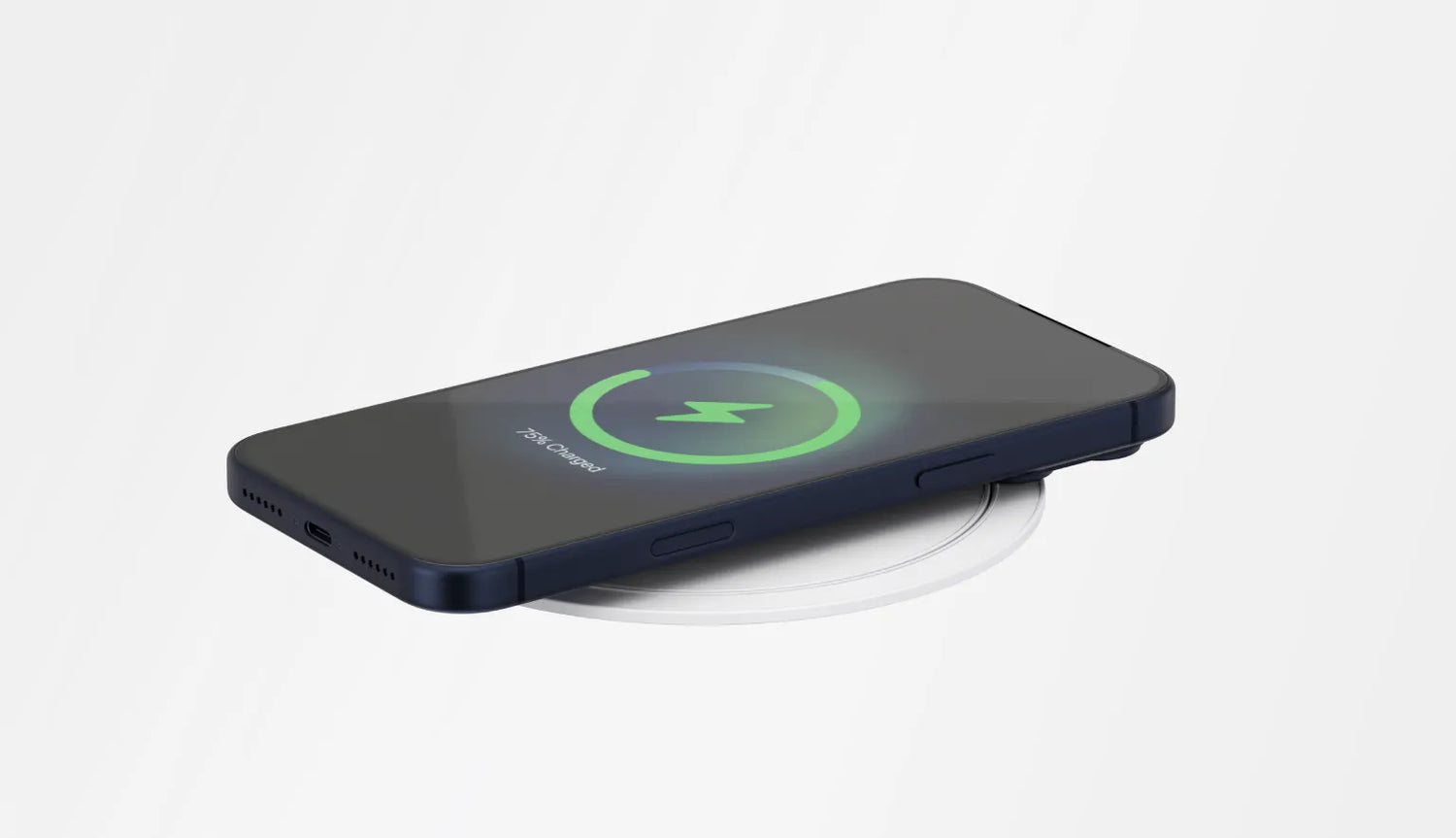

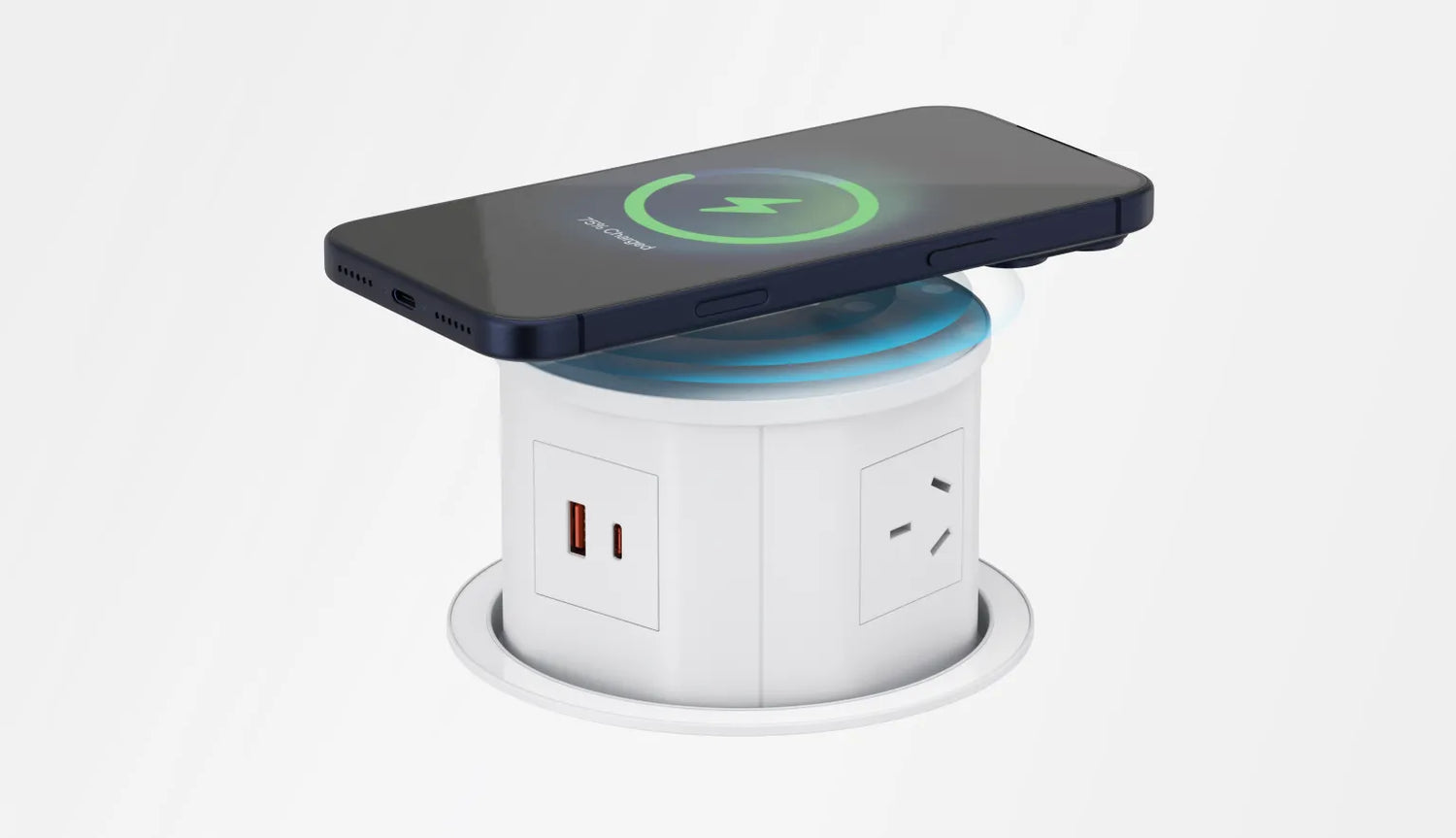

15W wireless charging
Charge a compatible device on the top surface at up to 15W.
Installation planning
120mm opening
Plan a 120mm opening for the approximately 105mm-diameter body. The top flange is approximately 135mm in diameter.
Allow 160mm below
The body extends approximately 144mm below the surface. Allow at least 160mm below the benchtop, plus room for the lead, plug and cable routing.

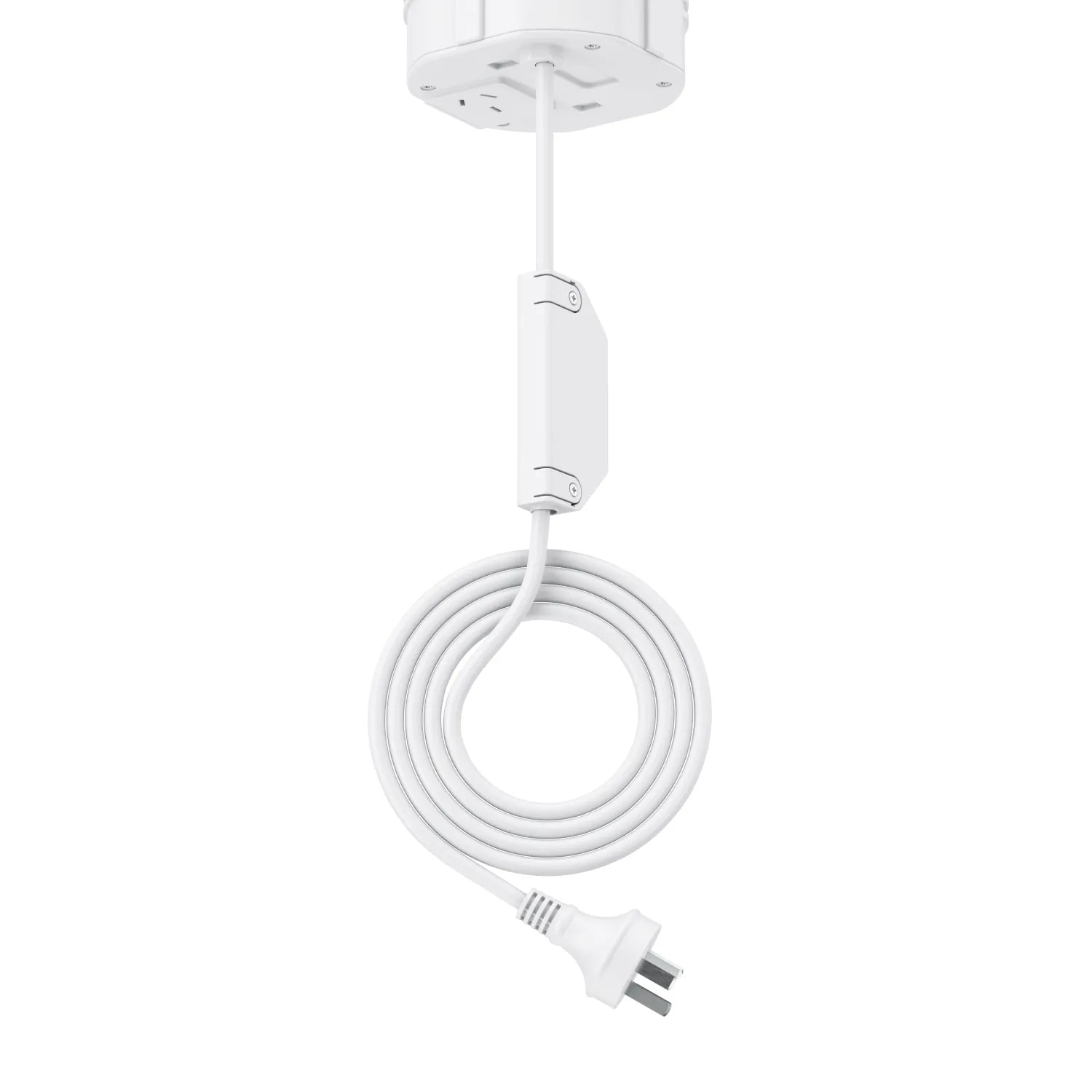

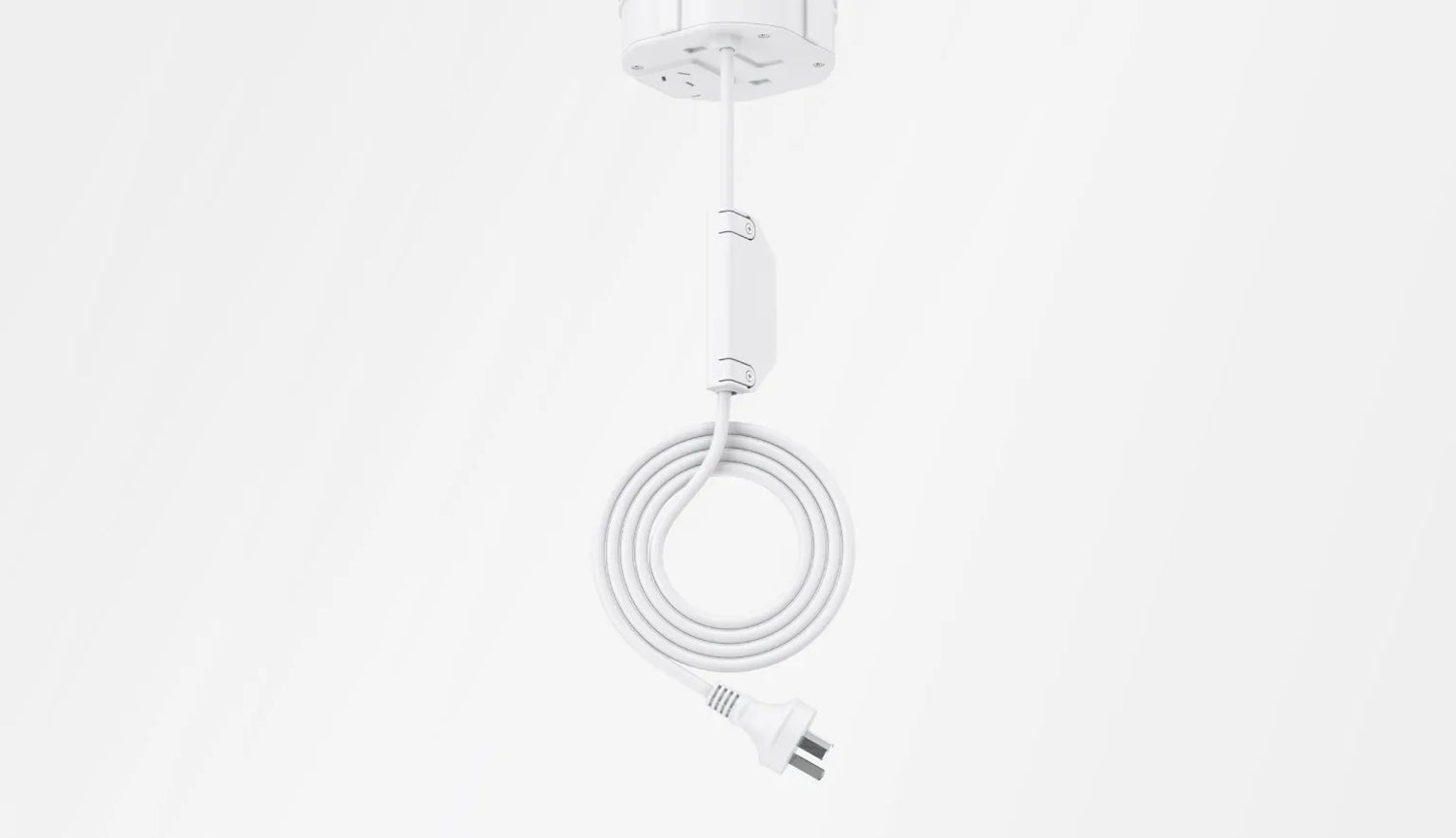

Fitted AU plug
Supplied with a 1.8m lead and fitted AU plug for connection below the benchtop.
Important: Indoor dry-location use only. Keep liquids away from exposed connections and do not exceed 10A / 2400W total.

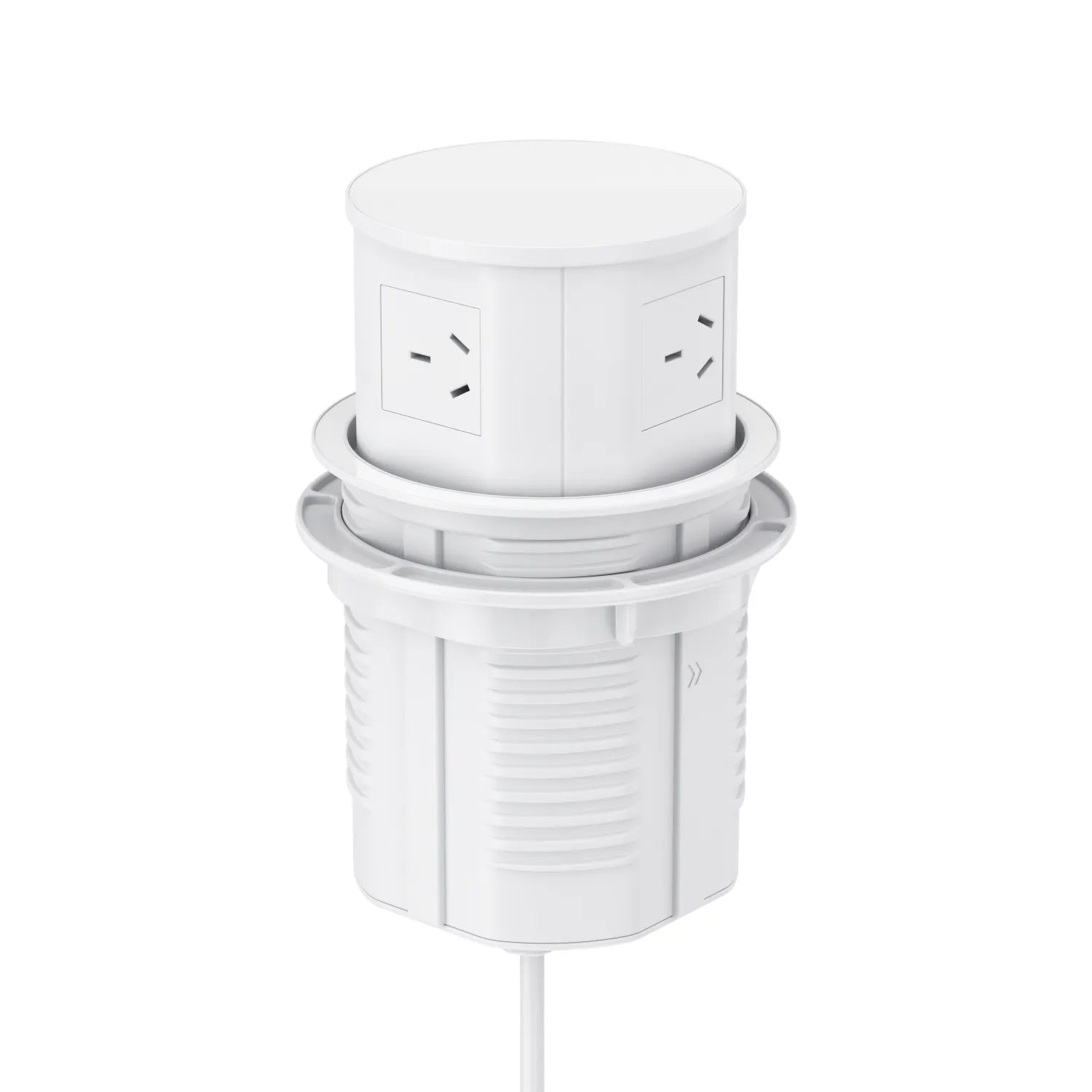

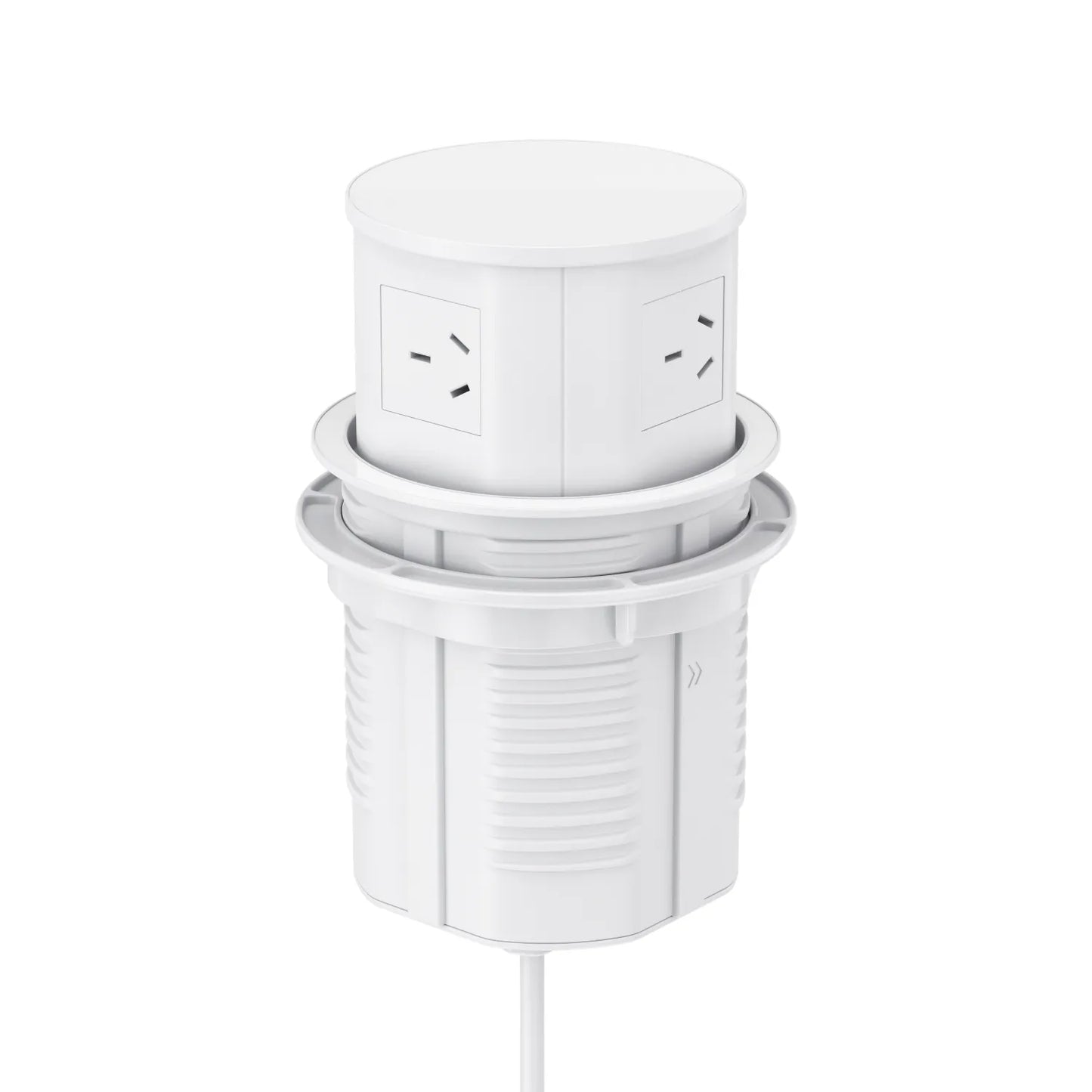

Four AU outlets plus USB
Three AU outlets are positioned around the raised body, with a fourth outlet on the underside. USB-A, USB-C and wireless charging are also included.

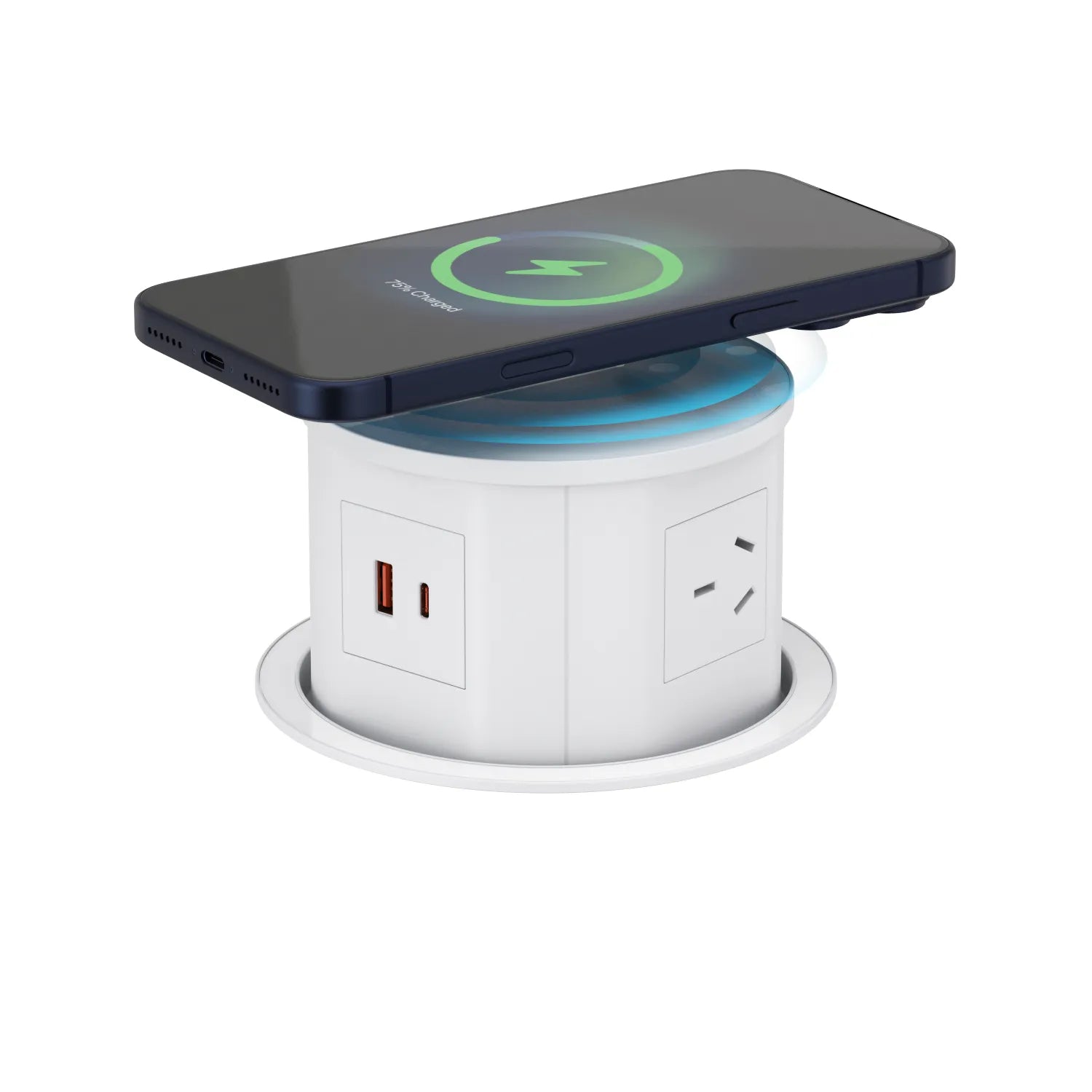

Cable-free charging
Charging your mobile device wirelessly is just the beginning.
120mm installation opening
Requires a nominal 120mm opening. The body is approximately 105mm in diameter and the top flange approximately 135mm.
More than the sum of its parts
The V14J brings everything together - ready to connect and power any device, whenever you need it.
Stay within the rated load
For indoor benchtop use. Follow the supplied instructions and do not exceed 10A / 2,400W total.

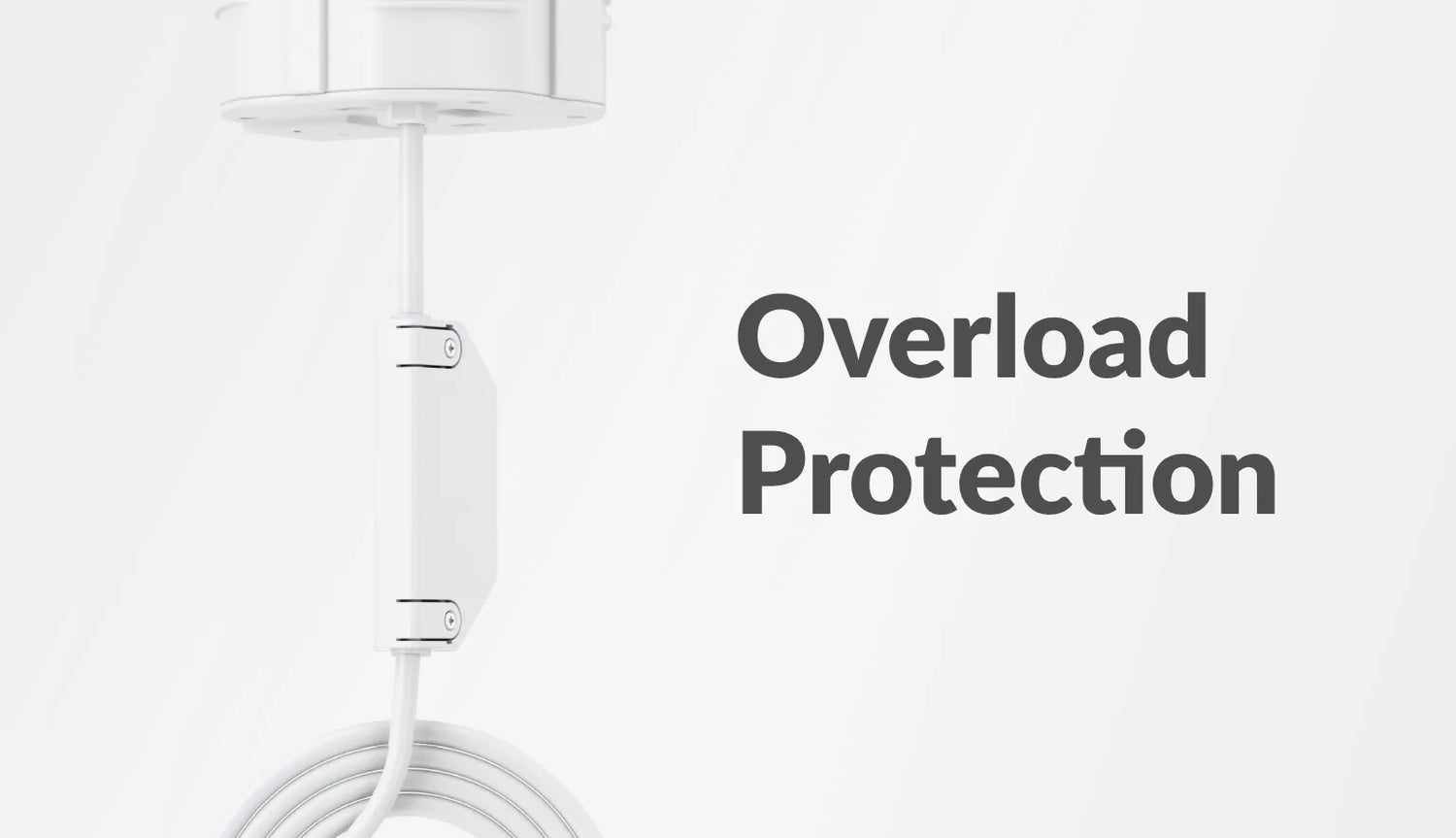

Built-in overload protection
If overload protection operates, disconnect connected loads and follow the supplied instructions before restoring use.

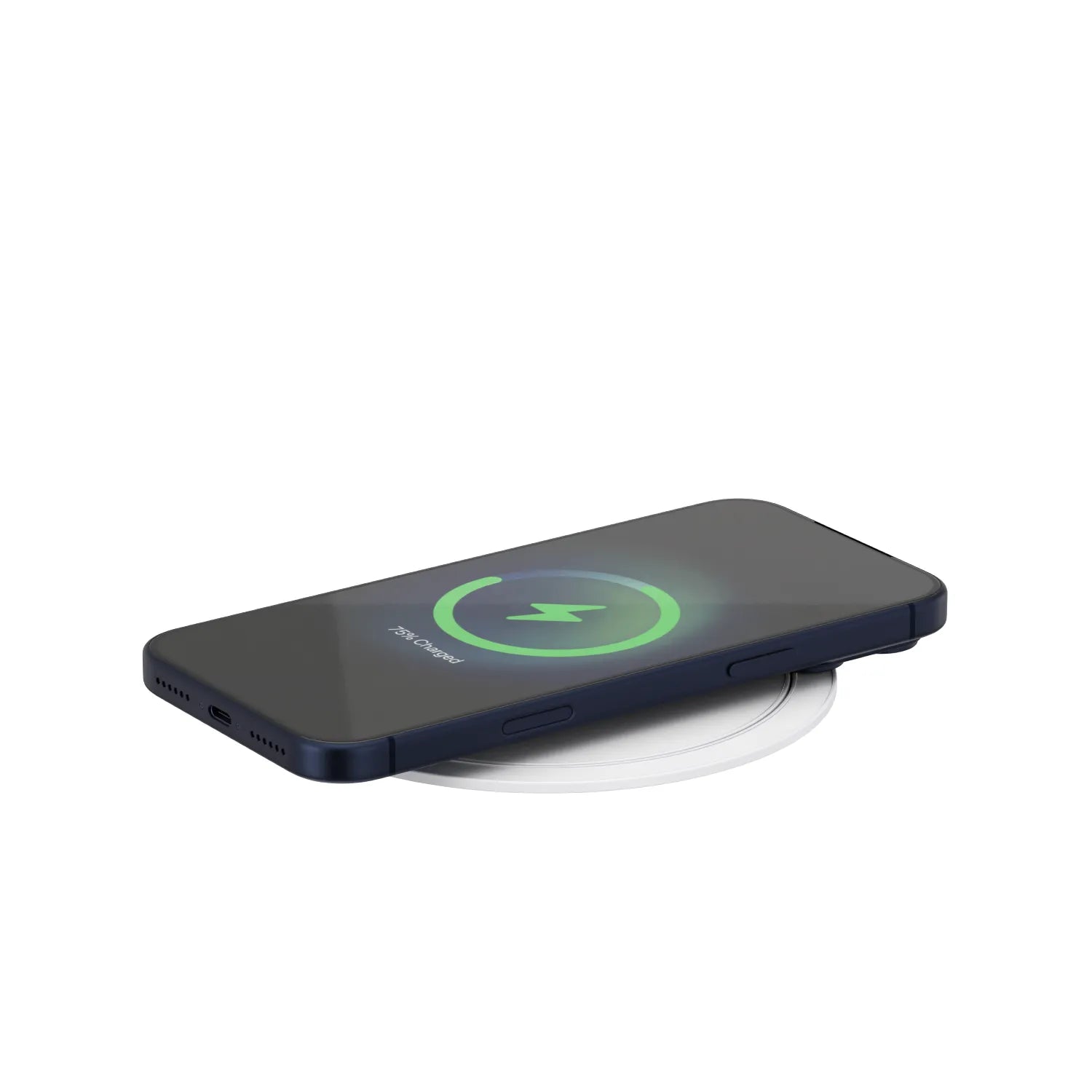

Wireless charging
Works both in the up or down position.

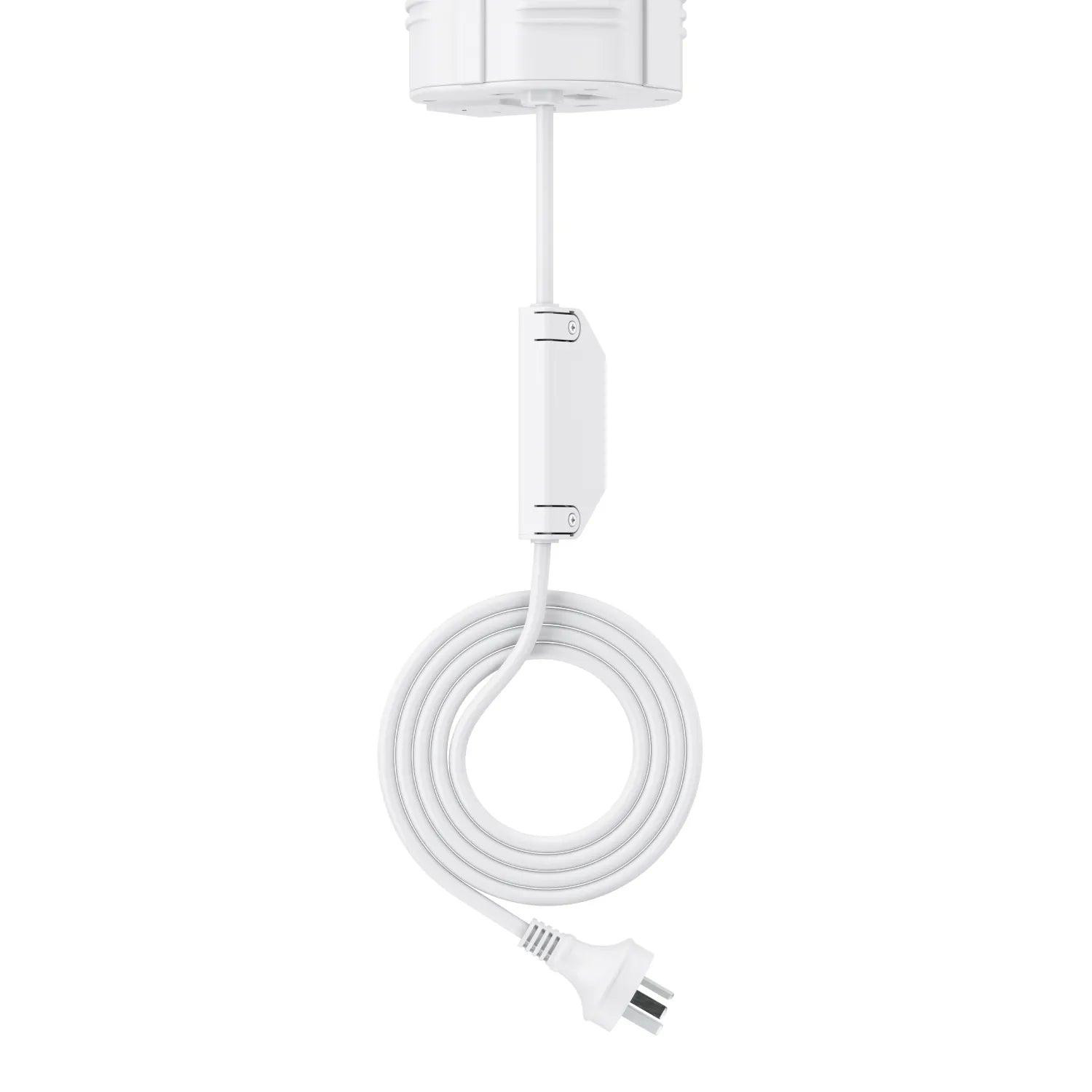

Fitted AU plug
Supplied with a 1.8m lead and fitted AU plug, so hardwiring is not normally required. Use a licensed electrician for any electrical alteration.

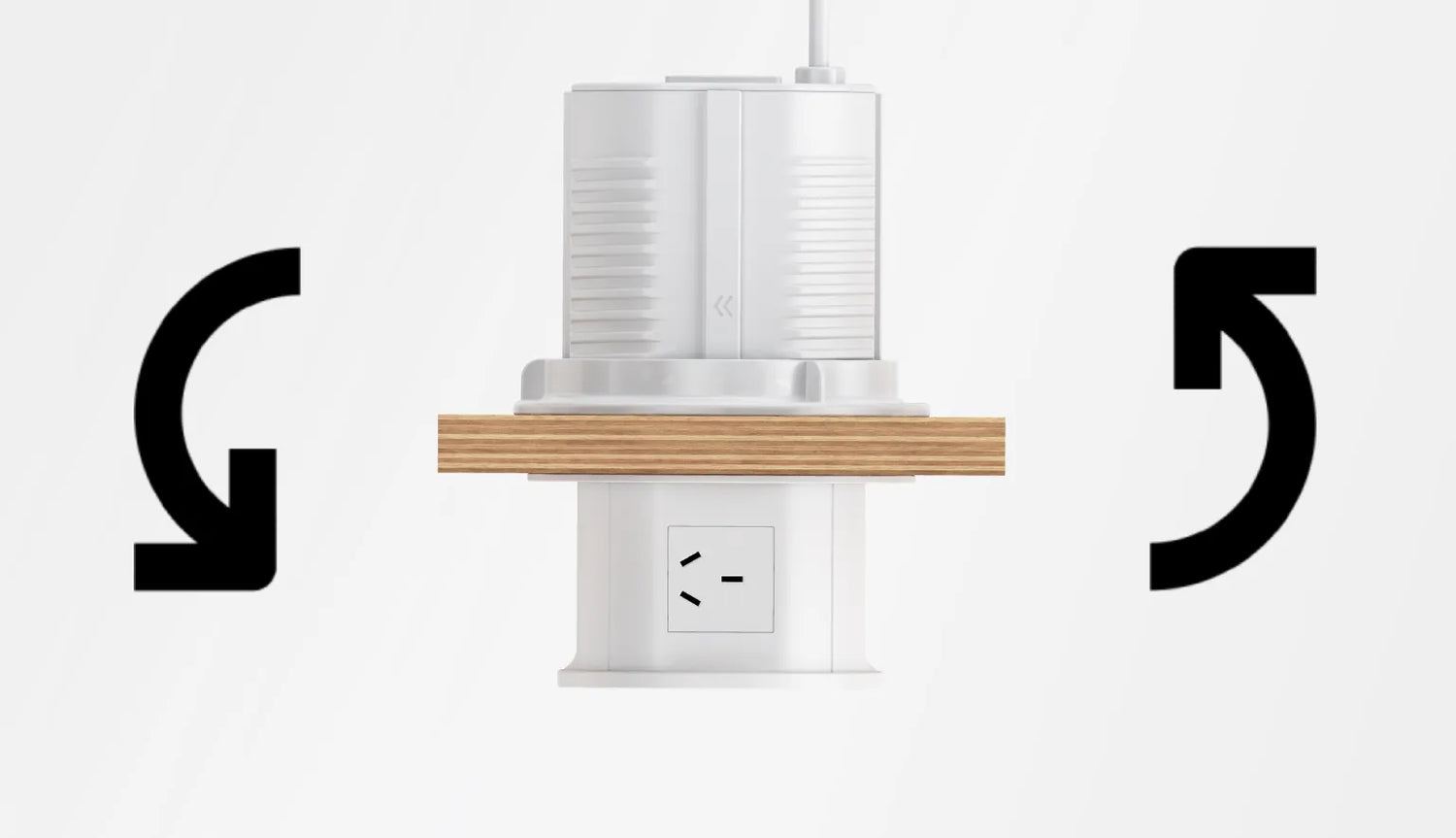

Installation orientation
Install in the orientation shown in the current instructions. Contact support before considering any other orientation.
Easy connection
The power cable comes out from the bottom for easy connection.

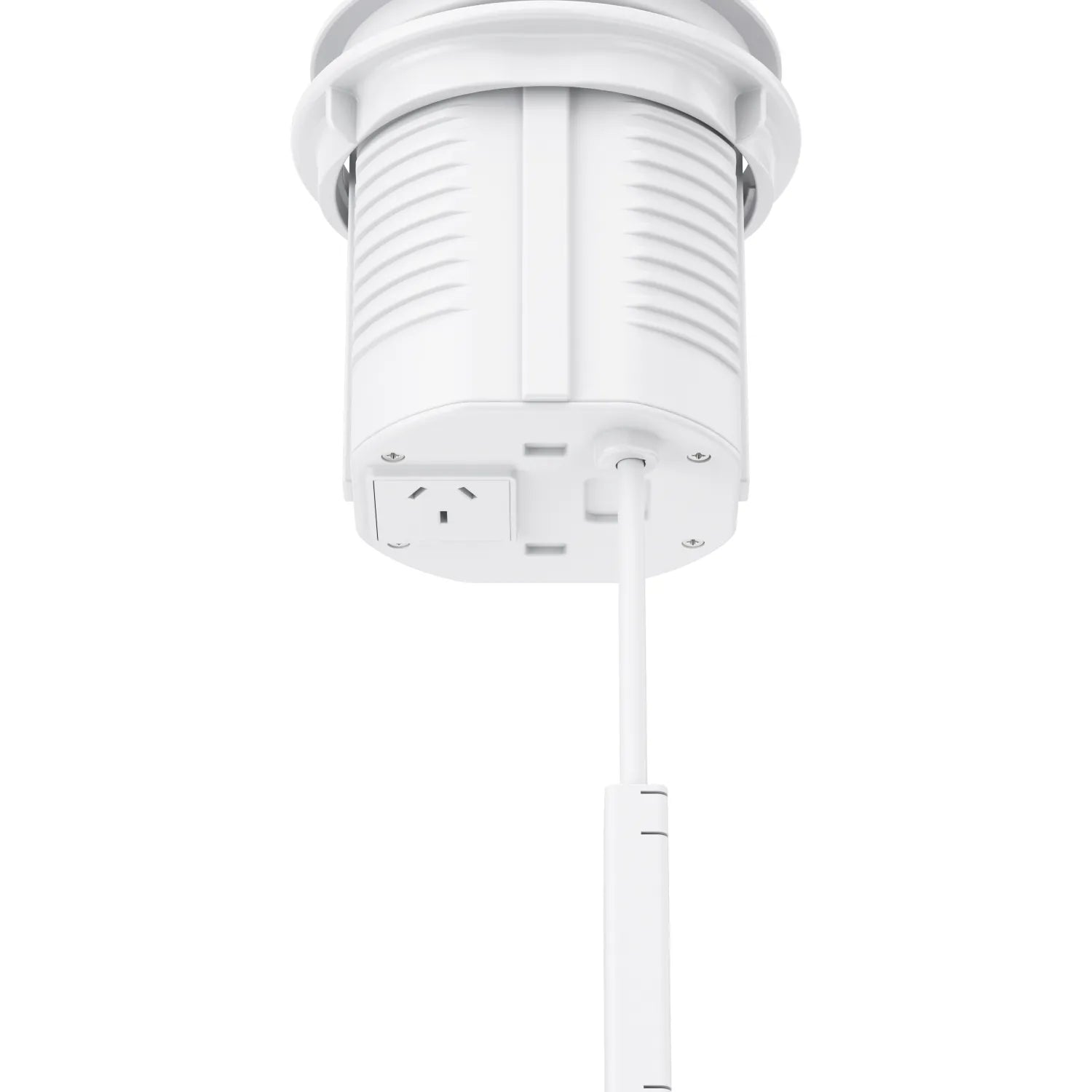

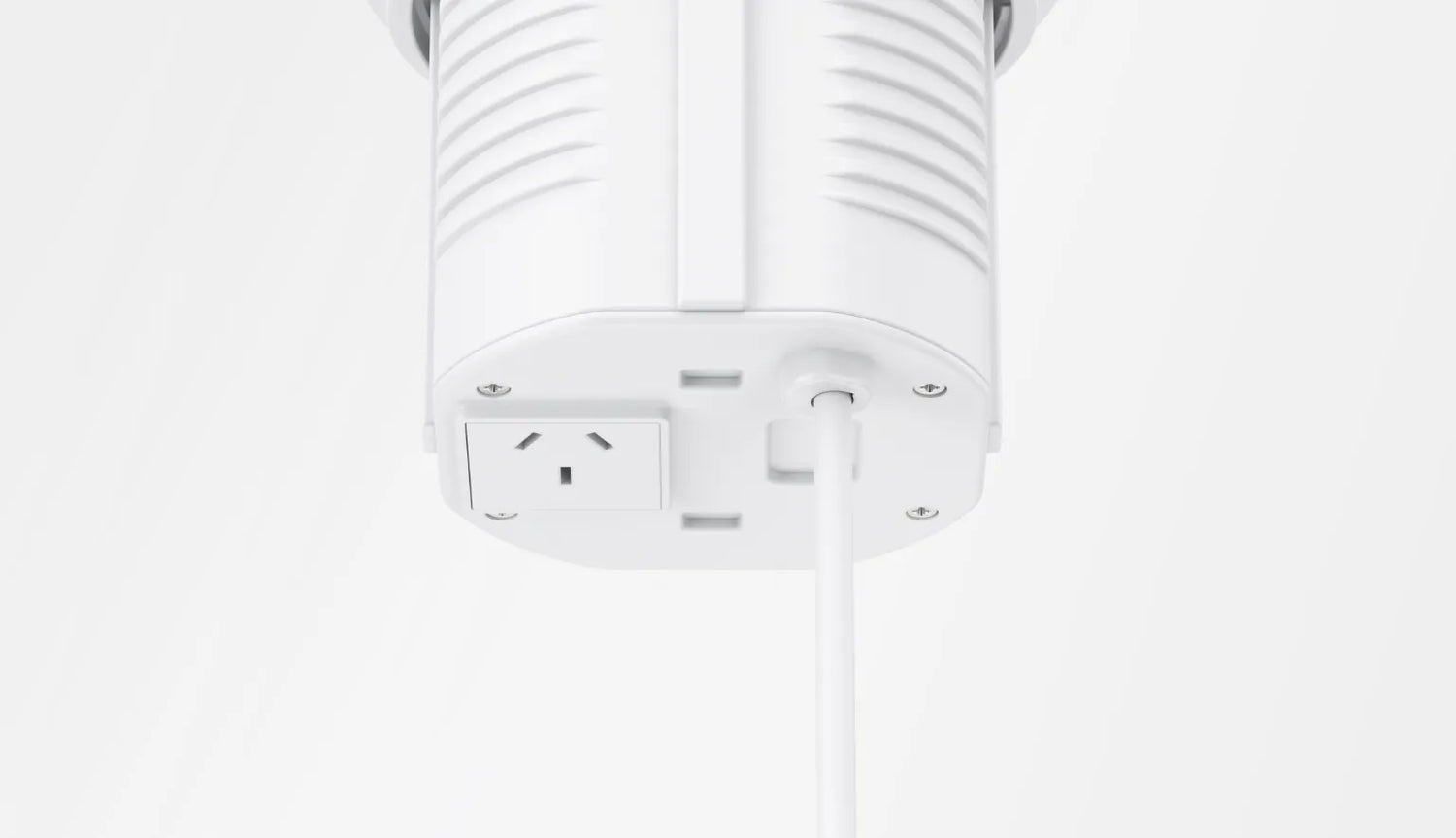

Underside power outlet
An underside outlet can support a suitable under-counter or pass-through connection. Confirm the complete connection layout against the actual unit before installation.
Maximum output
2400W max rated. USB-C: 20W. Qi Wireless: 15W.
SAA-certified electrical safety
Certified to AS/NZS standards (Certificate No: SAA-231919-EA). Includes RCM compliance for Australia & New Zealand.
Protective packaging
Designed to protect during shipping and storage. Each unit arrives in a durable, professionally presented carton that helps ensure it reaches you in perfect condition.
Current technical sheet
Download the current controlled dimensions, connections and electrical information for V14JW.
Warranty and support
We are here to help before and after purchase. Review warranty and service information.
Returns information
Returns are subject to eligibility and policy conditions. Review the returns policy.
Shipping information
Delivery times vary by location. View Australian delivery options and estimated timeframes.

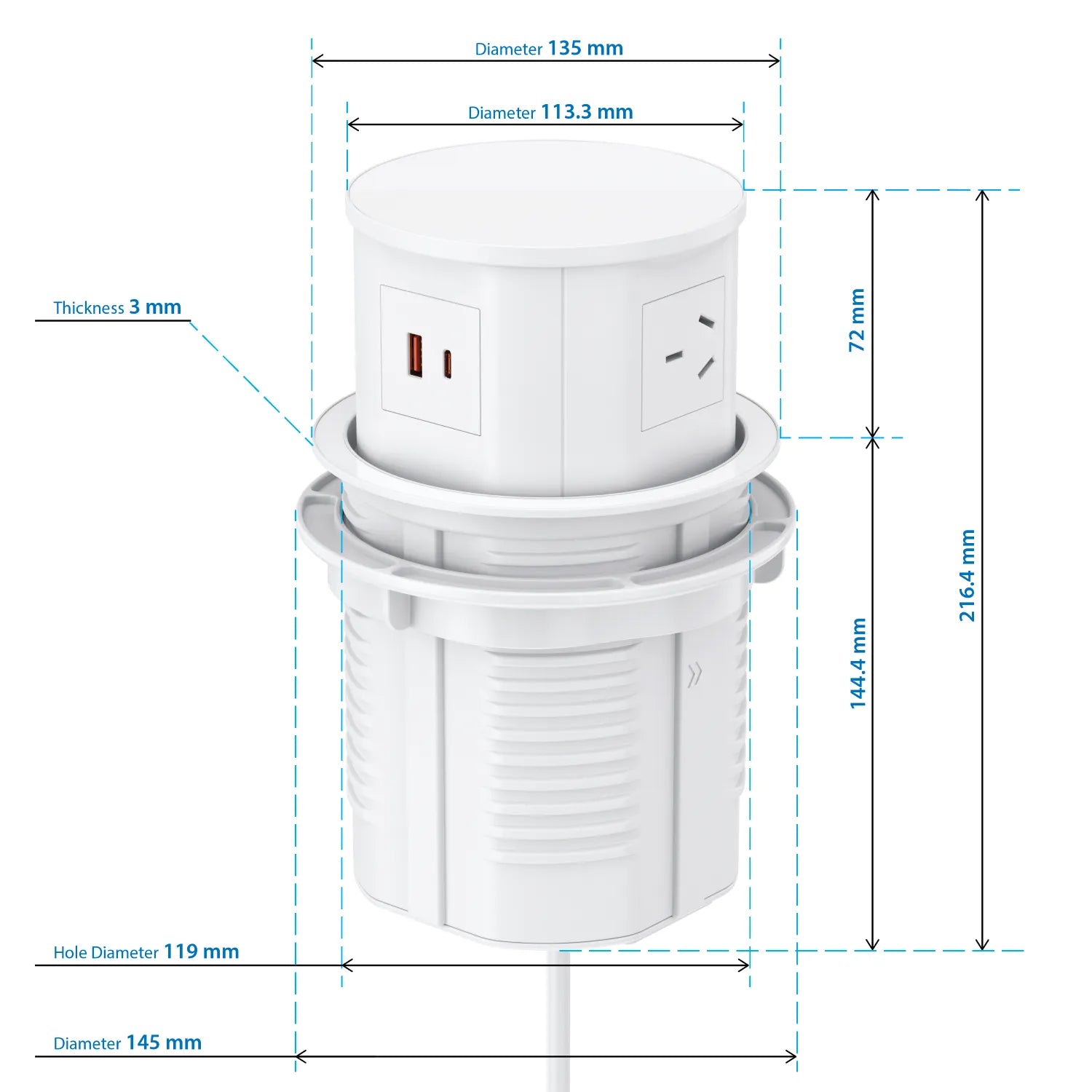

Dimensions and cut-out
Check the hole size, benchtop thickness and the space needed below before you install. Select the drawing to open it full size.
(opens full size in a new tab)
Dimensions and details
Specifications, support and common questions.
Electrical, installation, delivery and support information is consolidated here so it is easier to scan.
Specifications
Installation dimensions
120mm opening; approximately 105mm body diameter; approximately 135mm top flange; body extends approximately 144mm below the surface. Allow at least 160mm below the benchtop, plus cable-routing room.
Electrical
220-240V AC, 50/60Hz; 10A and 2400W total maximum.
Charging
USB-A: up to 18W. USB-C: up to 20W. USB-A + USB-C: 5V / 3A shared. Qi: up to 15W.
Model and finish
Model V14JW; white top, body and outlets; 24-month warranty.
Delivery, warranty and support
Hole cut-out template (1:1)
120 mm hole (fits up to 125 mm), printed at actual size on A4 to mark the benchtop.
V14JW technical sheet
Current controlled dimensions, connections and electrical information for V14JW.
Shipping information
Delivery times vary by location. View Australian delivery options and estimated timeframes.
Frequently asked questions
What opening is required?
Plan a 120mm opening for the approximately 105mm-diameter body. The top flange is approximately 135mm in diameter.
How much space is required below the surface?
The body extends approximately 144mm below the surface. Allow at least 160mm below the benchtop, plus room for the lead, plug and cable routing.
Is the V14JW suitable for wet locations?
No. It is intended for dry indoor locations. Keep all exposed connections dry.
