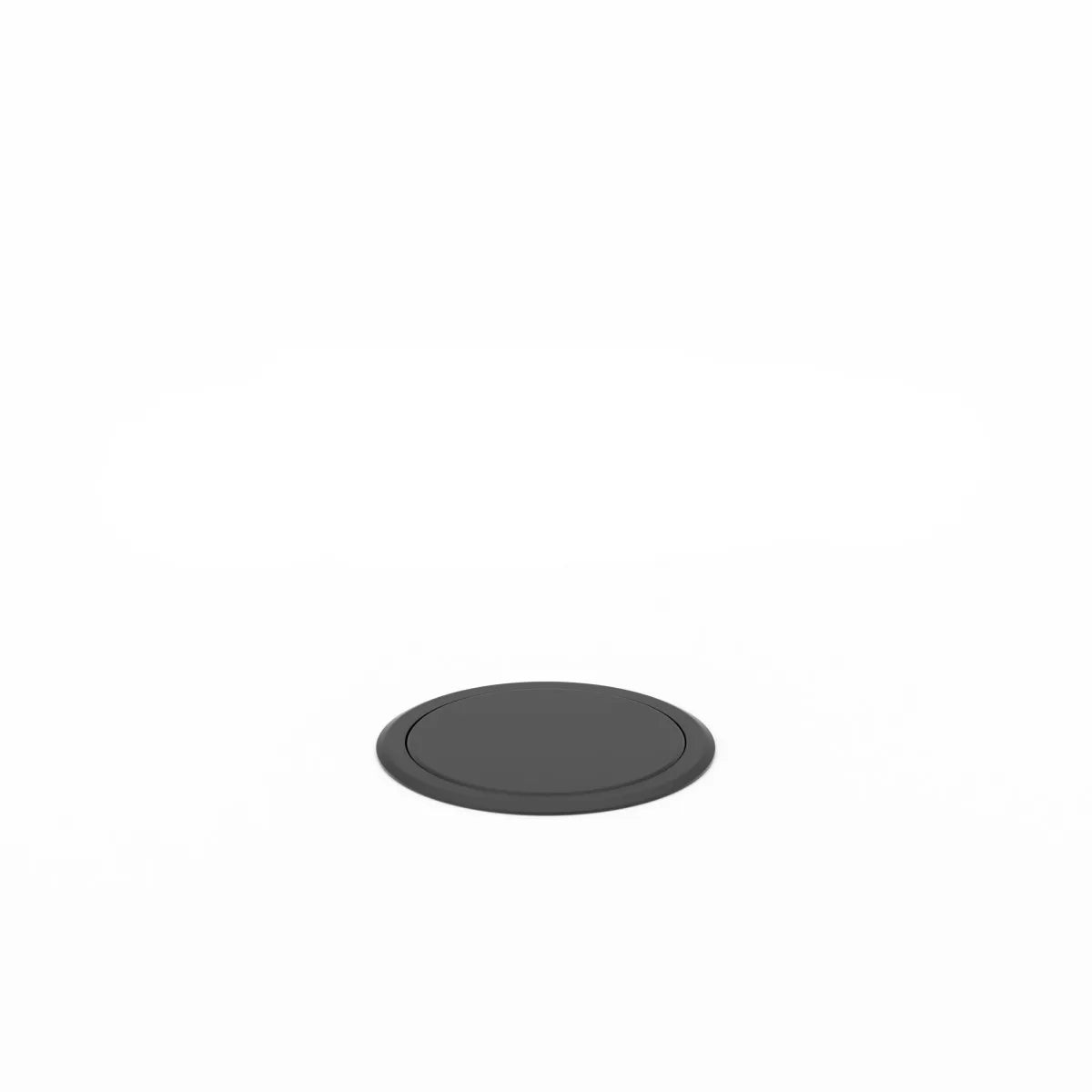

Gas-strut lift
Press the top to release the gas-strut mechanism and raise the connections.
V14B-HNR at a glance
Four-sided access, organised around installation and connection planning.
Gas-strut pop-up outlet with four AU power outlets, USB charging, wireless charging, RJ45 and HDMI passthrough.
Features
Power and charging
Four AU power outlets, one USB-A port, one USB-C port and 5W Qi wireless charging.
HDMI and data passthrough
One HDMI passthrough port and one RJ45 port support routed signal and network connections.
Installation planning
120mm opening
Plan a 120mm-diameter installation opening.
180mm below-surface space
Allow 180mm below the top surface, plus room for the power, HDMI and data cable routes.
Fitted AU plug
Supplied with a 1.8m lead and fitted AU plug for connection below the benchtop.
Important: IP20 and indoor dry-location use only. Keep liquids away from exposed connections and do not exceed 10A / 2400W total.
HDMI Port
This model includes an HDMI passthrough port and one RJ45 port. For the current non-HDMI alternative, see the V14JB.
Its connection mix differs from current V14J models; compare the current specifications before ordering.
Current technical sheet
120mm opening; allow 180mm below the top surface, plus room for the power, HDMI and data cable routes.
Maximum output
10A, 240V AC, 50Hz and 2,400W maximum total load. USB output is 15.5W combined and wireless charging is up to 5W.
Warranty and support
We are here to help before and after purchase. Review warranty and service information.
Returns information
Returns are subject to eligibility and policy conditions. Review the returns policy.
Shipping information
Delivery times vary by location. View Australian delivery options and estimated timeframes.
Dimensions and details
Specifications, support and common questions.
Electrical, installation, delivery and support information is consolidated here so it is easier to scan.
Specifications
Electrical
240V AC, 50Hz; 10A and 2400W total maximum. IP20.
Charging
USB-A and USB-C: 5V / 3A, 15.5W combined. Qi wireless charging: up to 5W.
Model and finish
Model V14B-HNR; black top, black and silver body, and black outlets; 24-month warranty.
Delivery, warranty and support
V14B-HNR technical sheet
Current dimensions, ratings and installation information for V14B-HNR.
Product and installation support
The V14B-HNR uses a 120mm opening, needs 180mm below-surface space plus cable-routing room, and includes a fitted 1.8m AU lead and plug.
Shipping information
Delivery times vary by location. View Australian delivery options and estimated timeframes.
Frequently asked questions
Is the HDMI connection wireless?
No. It is a passthrough connection, so the source and display still need to be connected by HDMI cabling below and above the surface.
What opening and clearance are required?
Plan a 120mm opening and 180mm below-surface space, then allow extra room for all cable routes.
Does it need hardwiring?
No hardwiring is required for normal installation because the unit has a fitted AU plug. Use a licensed electrician for any electrical alteration.
