Manual-lift design
Pull the unit up for access, then retract it when the connections are no longer required.
Product guide

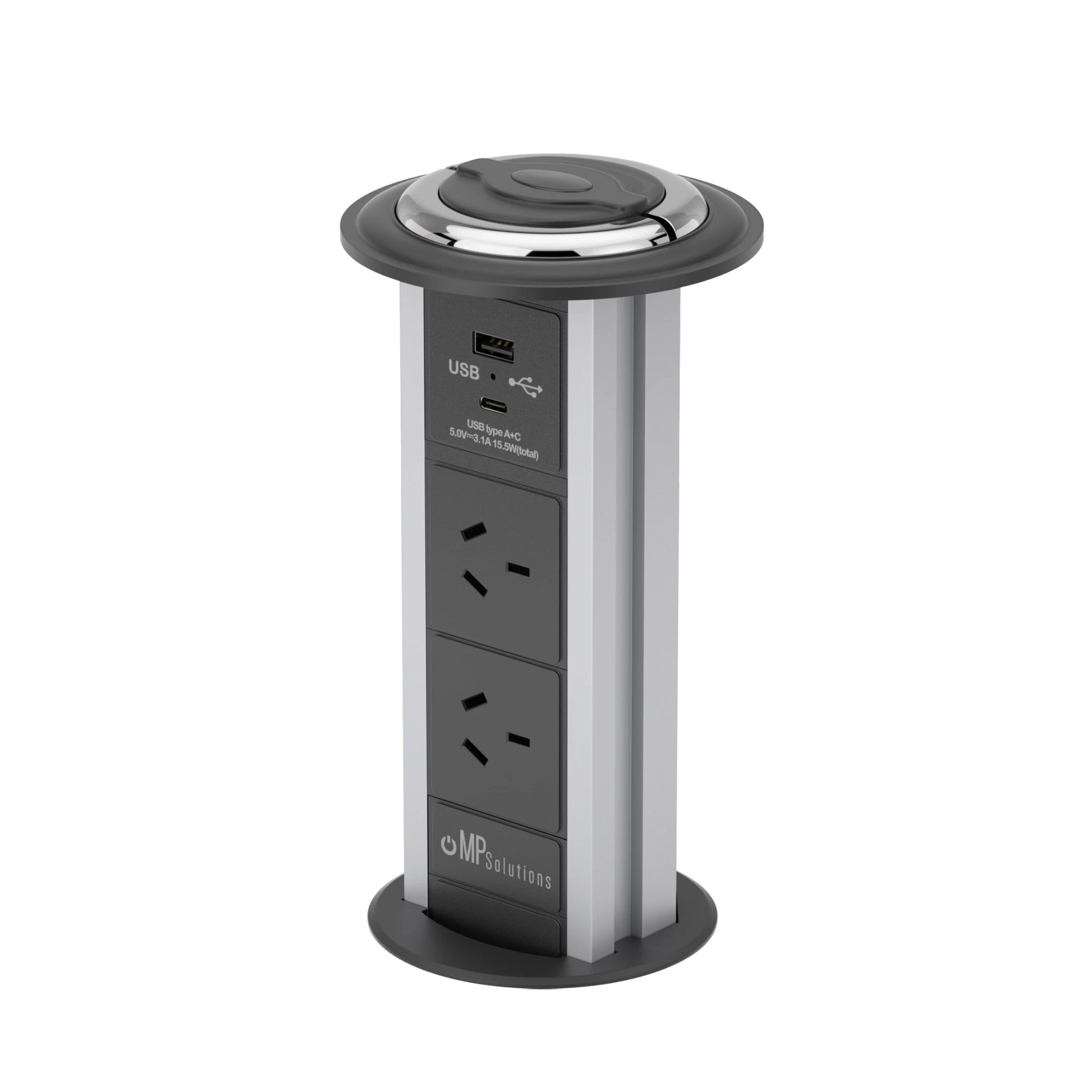

Black-top manual-lift pop-up outlet with two AU power outlets, USB-A and USB-C for indoor benchtop use.
Features
Key functions and connections at a glance.
Power and USB
Two AU power outlets, one USB-A port and one USB-C port.
Gasketed closed lid
The closed lid includes a sealing gasket. No IP rating is published; the product is not waterproof or suitable for outdoor use.
Installation planning
Confirm the opening, below-surface space and dry power connection before cutting the benchtop.
80mm opening
Plan an 80mm opening with a +/- 3mm tolerance.
280mm below-surface space
Allow 280mm below the top surface for the unit, with additional room for the lead and plug.

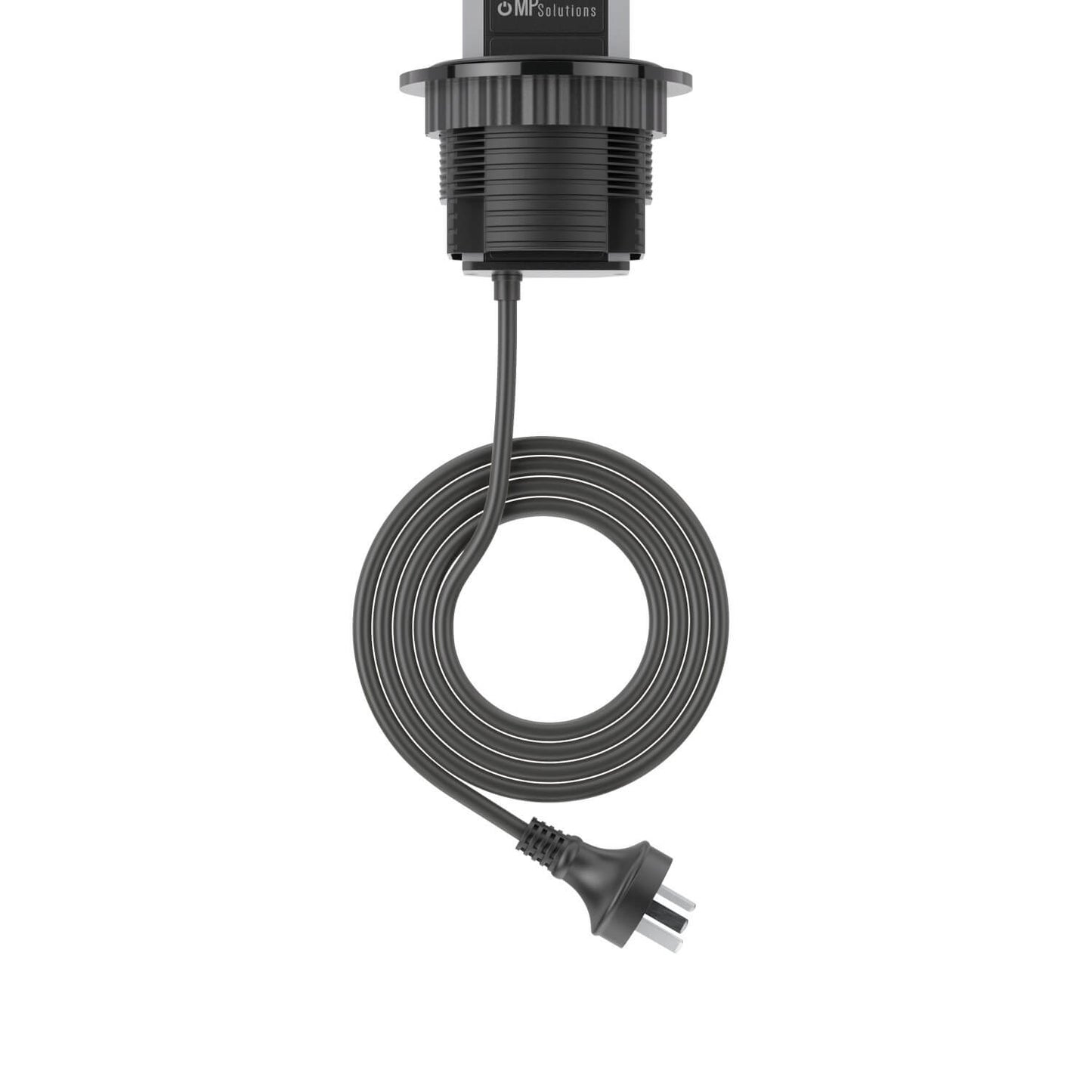

Fitted AU plug
Supplied with a 1.8m lead and fitted AU plug for connection below the benchtop.
Important: The closed lid includes a sealing gasket, but no IP rating is published and the product is not waterproof. Keep the unit and all connections dry, especially when raised, and do not exceed 10A / 2,400W total.
Specifications
Use these details with the supplied instructions and the rating label on the product.
Electrical
240V AC, 50Hz; 10A and 2400W total maximum.
Charging
USB-A: up to 18W. USB-C: up to 30W. USB-A + USB-C: 15W shared.
Model and finish
Model V5WUB; black top, silver body and black outlets; 24-month warranty.
Downloads and support
Use the current technical sheet for dimensions and electrical details; contact support if site conditions differ.
Frequently asked questions
Is the V5WUB waterproof?
No. The closed lid includes a sealing gasket, but no IP rating is published. Keep the unit and all connections dry, especially when raised.
What opening is required?
Plan an 80mm opening with a +/- 3mm tolerance and confirm the current technical sheet before cutting.
Does it need hardwiring?
No hardwiring is required for normal installation because the unit has a fitted AU plug. Use a licensed electrician for any electrical alteration.
Beautifully seamless
A compact and sturdy manual-lift retractable power outlet.
Plug and play
A single 1.8m cable plugs into a AU wall socket.
Use as specified
For indoor benchtop use. Follow the supplied instructions, keep connections dry and do not exceed the product rating.
80mm Hole
Fits into a hole 80mm (+/- 3mm) in diameter.
Maximum output
10A, 240V AC, 50Hz and 2,400W maximum total load. USB-C supports up to 30W.
Current technical sheet
Contact Modern Power Solutions for the current controlled V5WUB sheet. No IP rating is published.
